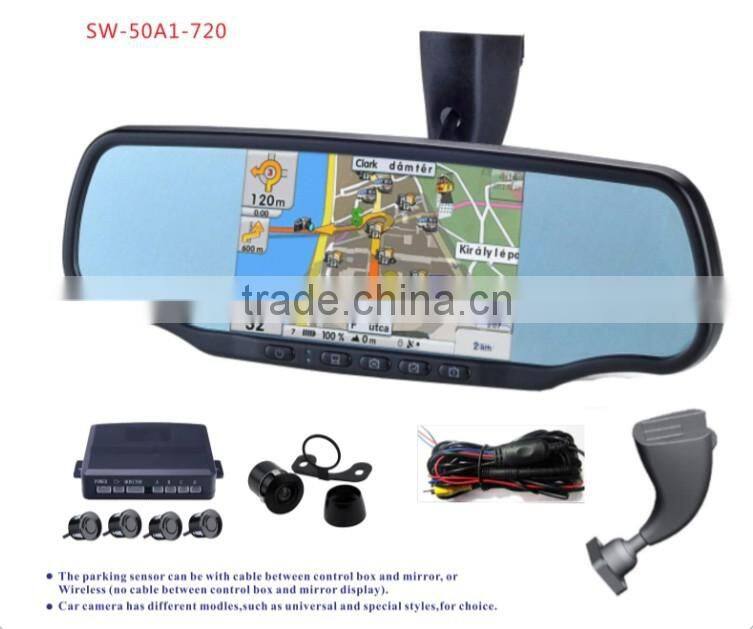

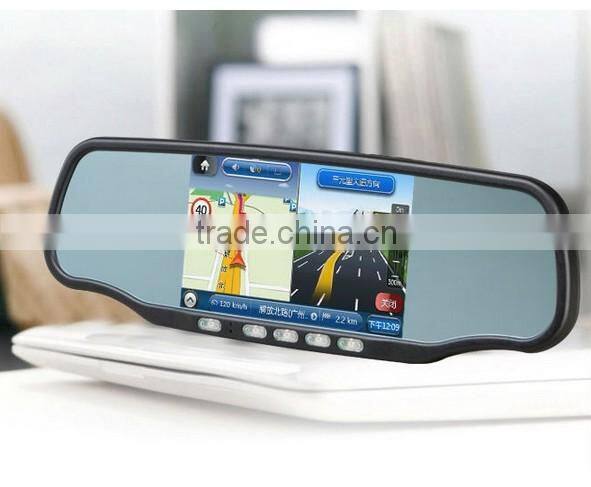

Multi-function Rearview Mirror System With GPS+Video Recorder+ Radar Detection+ Bluetooth+ Parking Sensor System+FM

CPU

ARM11

600MHz

Memory

NAND flash

4GB

SDRAM

128 MB

GPS Receiver

GPS Module

High sensitivity

Antenna

Internal Antenna

Embedded Antenna

Display

Color TFT

5'' TFT, 800*480, Landscape

Power

Supply DC Voltage

12V ~24V

Power

12V, 1A

Input/Output

Touch Panel

Multi-touch capacitive touch screen

Speaker

Dual channel speaker. 1.5W

Micro Card Slot

Capacity up to 32 GB, storage maps and data

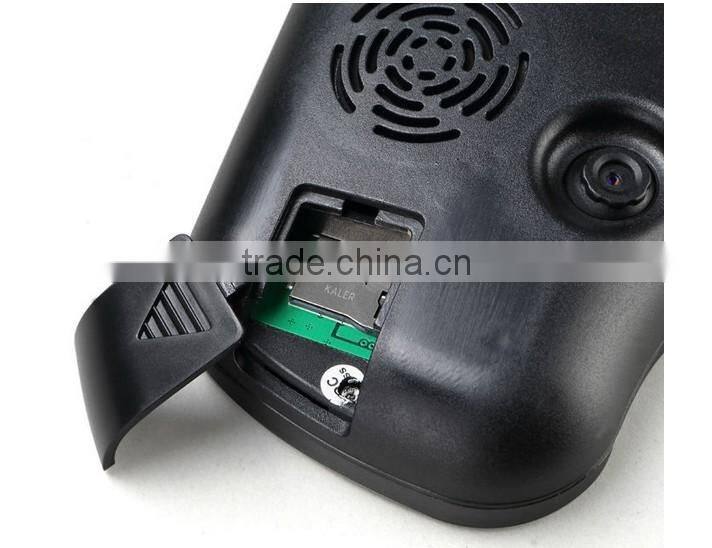

TF Card Slot

Support 4~32GB,storage recorded video

Micphone

Use to record and bluetooth.

Feature

Note

GPS navigation

Wince 6.0 Operation System. High sensitive GPS signal received ability. Support most navigation map in worldwide.

Digital Video Recorder

1. Support high resolution. HD 720P(1280*720)

2. Support for automatic recording

3. Support power-down to save

4. Support the cycle of coverage video

5. Storage type: support TF card from 4GB to 32GB

6. Video resolution: HD720P or VGA

7. Video speed: 30FPS

8. Real-time and number of overlay video, don’t lose any video in each second.

9. Video and sound recording synchronization/ video recording/ sound recording

10. It can lock the current video, to avoid coverage

Radar detector(Optional)!

1. High sensitive radar receiver with latest VCO technology.

2. Provide full band detection. Such as X band, K band, Ka band, Ku band .Laser.

3. Mute can be setted in software.

4. Can be used with the fixed camera warmed.

Parking Camera

1. Photosensitive components 1/4-inch color, CMOS,

2. Pixel 628X582, resolution of 380TV lines

3. The illumination 3LUX (infrared light at 0 Lux)

4. Lens 2.8mm

5. Standard PAL / NTSC

6. RCA video output interfaces

7. Angle 170 degrees

8. 0-5 meters night vision distance

9. With the line of distance

10. Waterproof

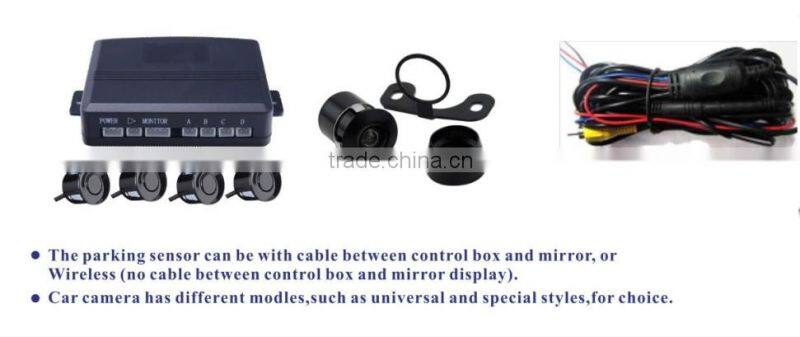

Parking Sensor

1, 1 control box, 4 sensors, power line and signal line

2, Working current: ≤100 mA

Max Power: ≤4W

Ultrasonic frequency: 40KHz

Alarming volume: ≥85dB

Alarming distance: 0.2~3m

3, Alarmed by buzzer, or alarmed by human voice

4, Distance is displayed by LED.

5, Direction is tipped by LED.

Blue tooth

CSR Blue tooth provides for data and voice communications

1. Operating Frequency Band 2.4GHz -2.48GHz unlicensed ISM band

2.Bluetooth Specification V2.0

FM Transmitting

From 87 to 108MHz. <10 Meter

Music

Audio Format: WAV, MP3, WMA

Movie

Video Format: AVI, MP4, MPG, WMV, 3GP

Picture view

Photo Format: JPG, GIF, BMP, PNG

E-book

Text Format: TXT,

Game

Support

Flash

Support!
