Home > Products > Parking Sensor > LED Colorful Disply Parking Lot Sensor Car Reverse Sensor System

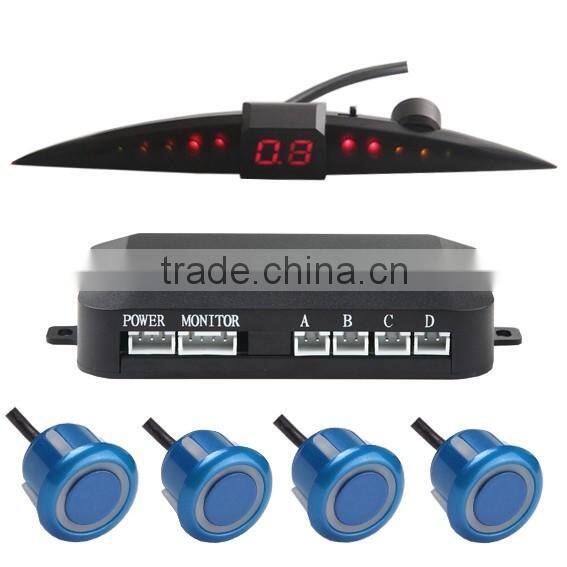

LED Colorful Disply Parking Lot Sensor Car Reverse Sensor System
US$ 4.5 - 5.5
/ Piece
1000 Pieces(Min. Order)
- FOBshenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
LCD Desk Display Car Reverse Parking Sensor System
-
12V Car Reverse Sensor System With LED Mirror and 4 Rear Sensors
-
3.5 Inch Monitor Display Car Parking Sensor for Car Camera Parking Assist
-
2.4 Inch HD 1080P Portable Car Dash Camera DVR With 140 Degree Wide Angle And Super Night Vision
-
Parking Sensor Type With Car Parking System and Ultrasonic Sensor
-
Parking Sensor Type LCD Parking Sensors With DC 12V Voltage
Product Details
| Type | Parking Sensor | Voltage | DC 12V | |
| Power | lower than 5w | Car Make | All | |
| Place of Origin | Guangdong, China | Brand Name | Car General | |
| Model Number | SW-828K-4 | Warranty | 1 Years |
Product Description
² Specifications
| SW-828-4 LED digital buzzer parking sensor system | |||
| FEATURES | |||
4 sensor system, advanced chipset for enhanced coverage and detection (0.3-2.5m) | |||
With digital colored LED display (number & light) | |||
Help to prevent dangerous and costly collisions | |||
Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle | |||
Detect small children and low walls as well | |||
Anti-freeze and rain proof | |||
Easy to install | |||
A saw drill head included | |||
PERFORMANCE SPECIFICATION | |||
1: Automatically works when reversing | |||
2: Show distance by digital display | |||
3: Detect distance:0.3~2.5M | |||
4: Embedded detector sensors (which require installation into your rear bumper) | |||
5: High-tech processing, High-quality detector sensor, Beautiful line type figure | |||
6: Easy installation. | |||
7: Wireless parking sensor, no need to run a wire from the front of the vehicle to the rear | |||
8: 4-sensor, 6-sensor, 8-sensor, 3-sensor, even 2-sensor model is optional for you | |||
9: Factory certification: ISO9001:2008 | |||
| TECHNICAL SPECIFICATION | |||
| Rated voltage:12V | |||
| Operating voltage: 10.5 ~ 16V DC | |||
| Rated current: 100mA - 300mA | |||
| Detection distance: 0.3 ~ 2.5m | |||
| Ultrasonic frequency: 40KHz | |||
| Working temperature of control box: -30 - 80℃ celcius degree | |||
| LED display size:132* 25*22mm | |||
| Display weight: 89g | |||
| Main control box size: 106 * 60 * 21mm | |||
| Main control box weight: 60g | |||
| Type | LED buzz parking Sensor | Warming Sound | Bi-Bi sound |
Brand | Car-general/OEM | LED Display Color | Green, Yellow, Red… |
Sensor | 2,3,4,6,8, optional | Detect Distance | 0.3~2.5 M |
Application | All Car | Alarm Distance | 0.3~1.0 M |
Packaging | Gift box/OEM | Qty of Carton | 20pcs or 30pcs /CTN |
| ALARM MODE | |||
Distance | Judgment | Sound | No sound |
≥1.6M | Safe | Display Color | Blue |
1.5-1.1M | Safe | Bi.....Bi.....Bi | Green blue |
1.0-0.6M | Warning | Bi...Bi...Bi | Yellow green blue |
0.5-0.4M | Dangerous | Bi..Bi | Red yellow green blue |
0.3-0M | Dangerous | Bi..... | Red yellow green blue |
PACKAGE INCLUDING | |||
1 * Main Control Box | |||
1 * LED Display Indicator | |||
4 * Parking Sensors with 2.5M cable | |||
1 * Hole Saw | |||
1 * Power Cable | |||
2 * Double Side Sticker | |||

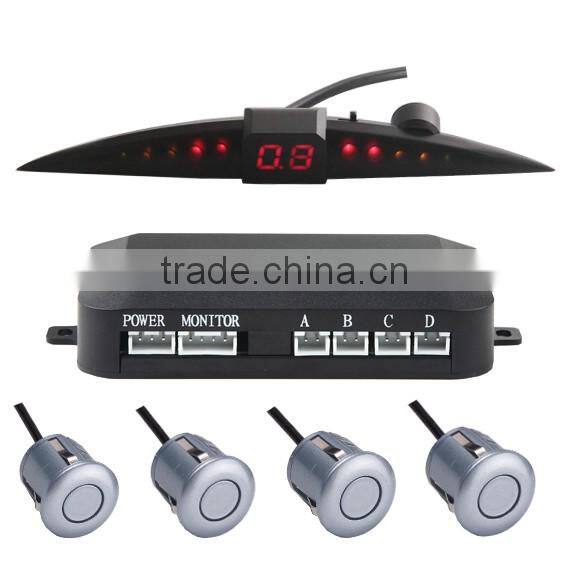

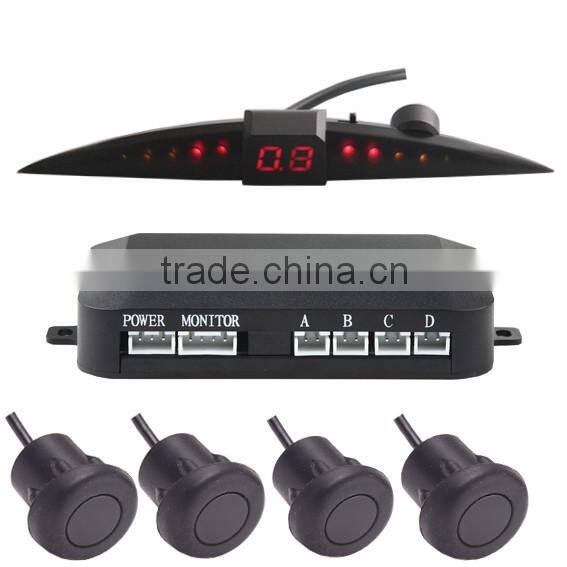

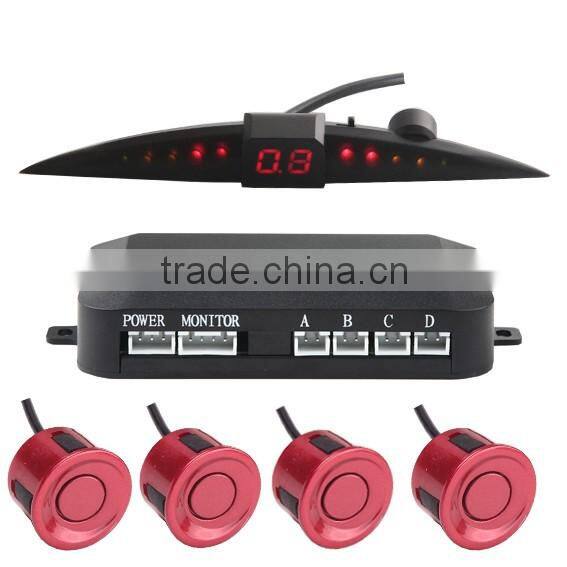

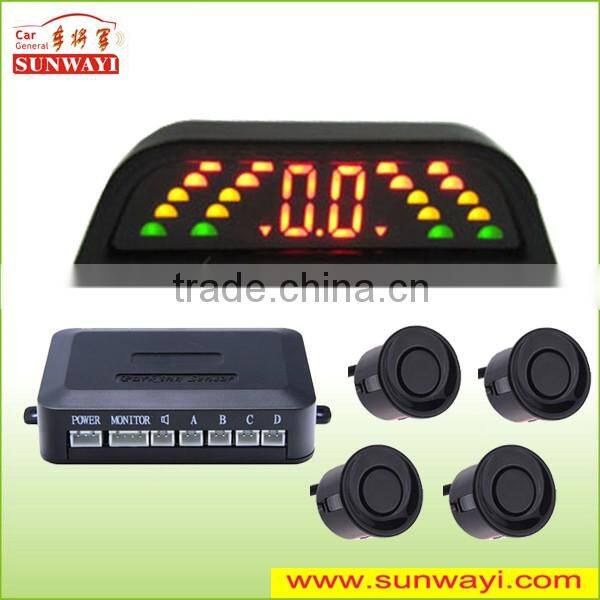

² Product Pictures

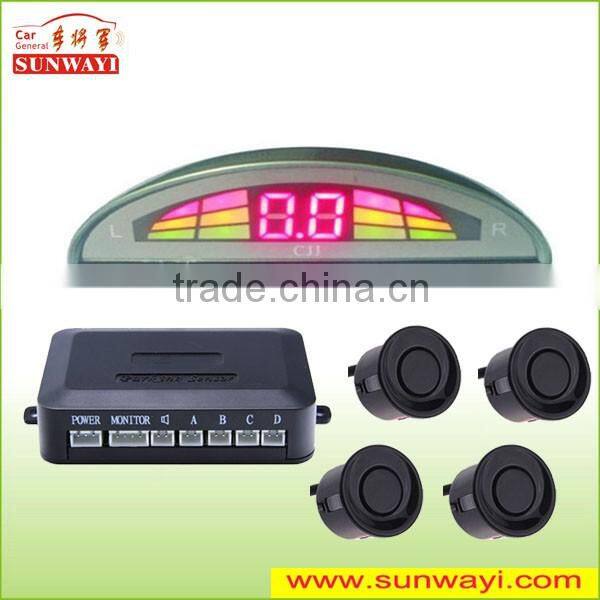

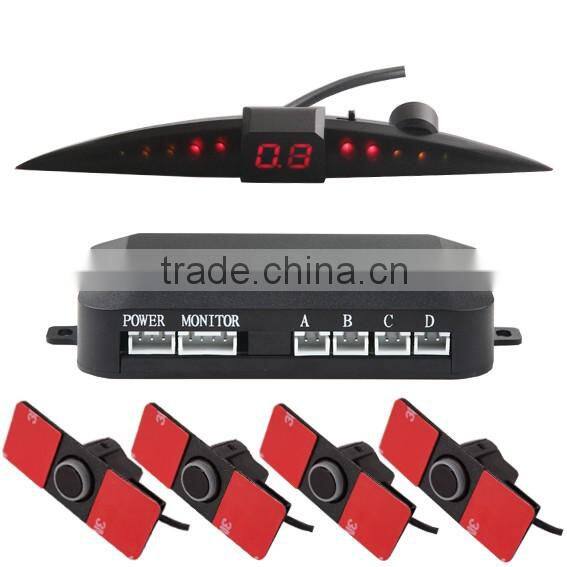

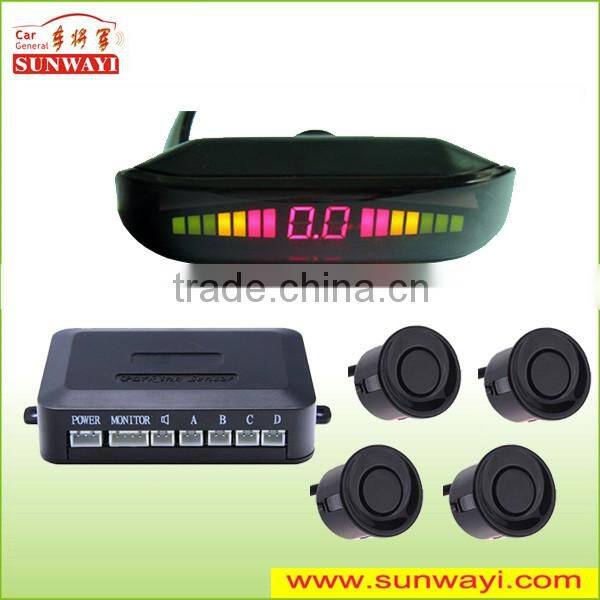

² Other Models
SW-838-4:
SW-888T-4:
SW-848-4:

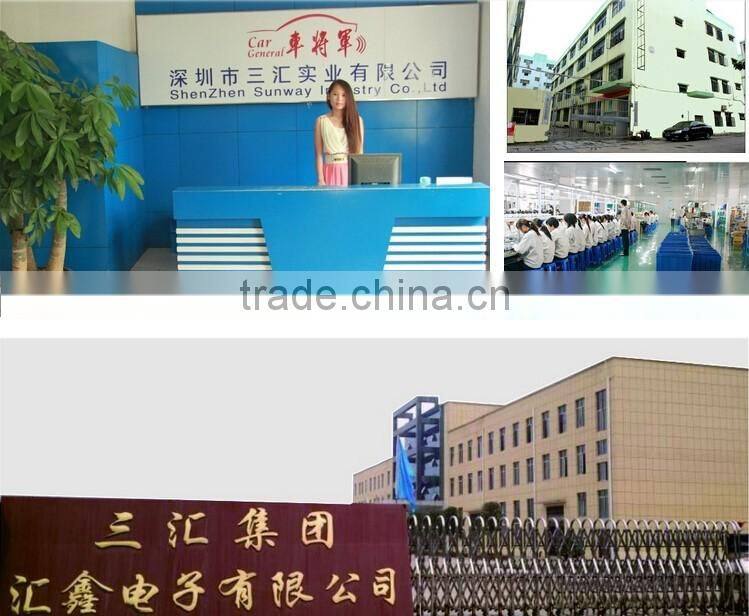

WHY CHOOSE US
² Superior Quality
All of the productions will be inspected before packing and delivery;
CE Certification; Rosh Certification; ISO 9001:2008; FCC Certification;
² Win-win cooperation service and Competitive Price
OEM& ODM service for your own design and brand;
Efficient before and after-sale service;
Price lower than the market average;
² Faster Response/Delivery
7x14 hours online customer service;
100% prompt and enthusiastic reply;
1-3days for samples,3-7days for mass production.

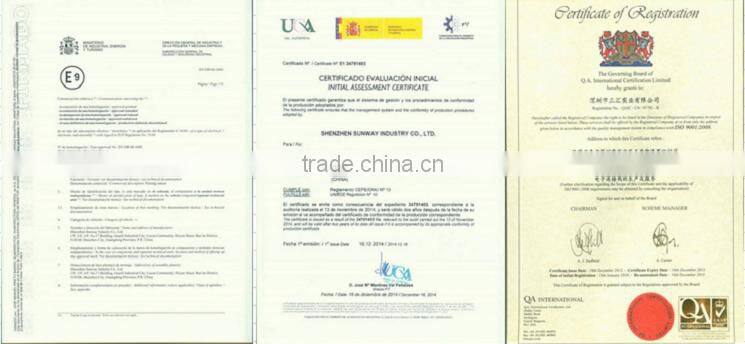

² Certifications
Welcome to contact us:
Sales: Lucia Liu
Mob/WhatsApp: 0086-15112311893
Skype: 913164777@
QQ ID: 285090988
E-mail: lucia@
Contact Us
- Shenzhen Sunway Industry Co., Ltd.
- Contact nameRichard Lee Chat Now
- Phone86-0755-29058679
- AddressShiyan, Shenzhen, Guangdong
