Popular 12V LED Parking Sensors With 2/4/6/8 Sensors for Blind Spot Detection System

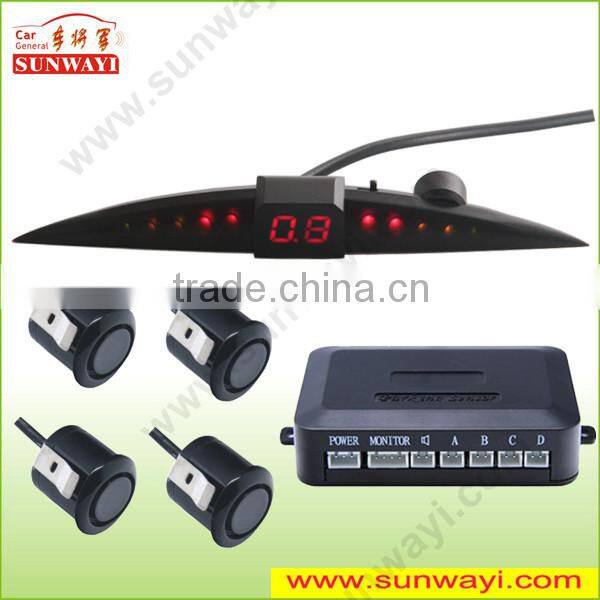

SW-828/828K-4 LED digital buzzer parking sensor system

FEATURES

1, Colorful LED displayer shows obstacle distance.

2, Multiple LED displayer models for choice.

3, 2/4/6/8 sensors and color is optional.

4, Waterproof connector is optional

5, OEM and ODM Service

6, Working automatically when reversing.

7, Indicate the distance of obstacles behind cars by different frequency beeping.

8, Detection in all directions without dead angle.

9, Easy installation, totally built-in mounting with no bad effect to the car appearance.

TECHNICAL SPECIFICATION

Rated voltage:12V

Operating voltage: 10.5 ~ 16V DC

Rated current: 100mA - 300mA

Detection distance: 0.3 ~ 2.5m

Ultrasonic frequency: 40KHz

Working temperature of control box: -30 - 80°C celcius degree

LED display size: 128* 17*14mm

Display weight: 84g

Main control box size: 106 * 60 * 21mm

Main control box weight: 450g

Type

LED buzz parking Sensor

Warming Sound

Bi-Bi sound

Brand

Car-general/OEM

LED Display Color

Green, Yellow, Red…

Sensor

2,3,4,6,8, optical

Detect Distance

0.3~2.5 M

Application

All Car

Alarm Distance

0.3~1.0 M

Packaging

Gift box/OEM

Qty of Carton

20pcs or 30pcs /CTN

ALARM MODE

Distance

Judgment

Sound

No sound

≥1.6M

Safe

Display Color

Blue

1.5-1.1M

Safe

Bi.....Bi.....Bi

Green blue

1.0-0.6M

Warning

Bi...Bi...Bi

Yellow green blue

0.5-0.4M

Dangerous

Bi..Bi

Red yellow green blue

0.3-0M

Dangerous

Bi.....

Red yellow green blue

PACKAGE INCLUDING

1 * Main Control Box

1 * LED Display Indicator

4 * Sensors with 2.5M cable

1 * Hole Saw

1 * Power Cable

2 * Double Side Sticker

OPTIONAL

1: LED Display with Sound switch is available

2: Sensor cable with Waterproof connector is available
