Home > Products > SH9400 Plug & socket detecting tester series > Pull line switch life tester

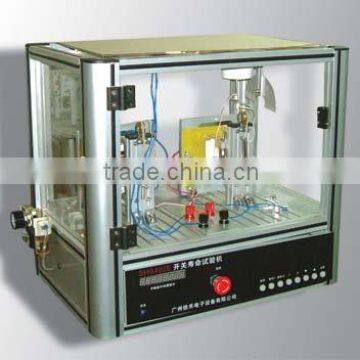

Pull line switch life tester
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Sunho | |
| Model Number | SH9402E | Power | Electronic | |
| Usage | Bending Testing Machine |
Product Description
It is designed according to the requirements of GB16915, applicable to the pull line switches and similar switches.
Technical characteristics
l The power of the equipment: AC 220V 50Hz
l The gas source of the equipment: 4~6kg/cm2
l The put through time : can adjust from 0.5~9.9s (min)
l The test cycle time: can adjust from 0 to 99s
l Counter: Can preset from 0 to 99999 times, (Using the tested sample put through current sampling method to counting. Have the test samples logic distinguish function of the damage in the test.
l Station: There are two stations (Each of it has a separate controller and reset function)
l The pull line test angle: 0-45 °(adjustable), when the angle is 30 °it has the scale, level installed the pull line switch, move the switch in the horizontal direction to adjust the pull line angle.
l Appearance size: 600L×500D×430Hmm
