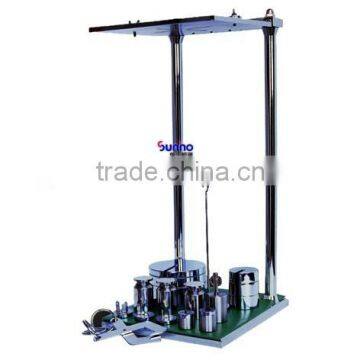

Multifunctional pull out strength tester
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Sunho | |
| Model Number | SH9406 | Power | Electronic | |
| Usage | Bending Testing Machine |
Product Description
1 It is designed according to the GB2099-96 and IEC884-1 and the relevant standard of other electrical annex.
2 It is used to detect the needed most vigorously when the plugs unplugging from the sockets and the needed minimum vigorously when single bolt unplugging from the sockets, and use to access whether the outlets can withstand the imposing lateral stress when the electrical insert in the socket.
3 The device is applied to the stated voltage which is not exceed 250V, the stated current of the plugs and the sockets which is lower than 16A.
Technical characteristics
1 Main weight: Has a total number of three, they are large, medium and small, (when in the use of it " the main weight of the two poles 10A is the large poise, the main weight of the three poles 10A is the large + small, and the main weight of the three poles 16A is large + medium.)
2 The additional poise: Each of 4N,5N and 5.4N has three.
3 The standard test plugs: Each of two poles 10A, three poles 10A and 16A has one.
4 The standard test bolt: Both of 1.5N and 2N has one.
5 Clamping devices: There is one.
6 The poise pallet: There is one.
7 Lateral stress poise: (5N) There is one.
8 Lateral Stress bar: There is one.
9 Size: 210×615×260
