Pressure Solar Water Heater System Solar Workstation

Solar Workstation

Introduce

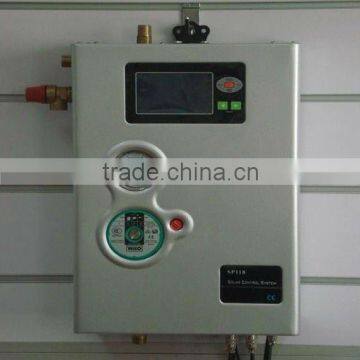

Workstation suitable for single-pipeline Split pressurized solar system

Advantage
1. Designed for self-sustaining solar operation
2.Easy installation, save cost, beautiful appearance
3.Easy to check the flux of pipeline, temperature display.

Components
1.Safety valve: make sure the system safety working
2.Ball valve,check valve: brass material
3.WILO pump: this pump is a standard device in the system,it required operating point can be preselected using one of the three levels.
4.Manometer: adopt hydraulic aseismatic manometer with a range from 0 to 10 bar indicates the system pressure.
5.Connect of expansion vesse: linstall expansion vessel, avoid the system working at minus pressure.
6.Flow sensor: timely monitor medium flow of the whole system..
7.Heat preservation material: EPS, method of operation: counterclockwise rotation to open and clockwise rotation to close.
8.Screw thread: 1/2inch.
9.Maximum working temperature of pipeline: 110^oC

Technical data:

Model ILA-SP116
1.externality size: 450mm*310mm*150mm
2.Max. self consumption: ≤3W
3.Accuracy of temperature measuring: ±2^oC
4.Range of temperature measuring: 0~150^oC
5.Power of controlled pumps (temperature difference circulation pump, water-using end circulation pump): 600W
6.electronic booster power: ≤3000W
7.System working pressure 8 bar and safety valve response pressure 6 bar.
8.input signal: 3 temperature sensors (for top of tank, for heat collector, for bottom of tank)
9.output signal: 3 (electronic booster, temperature difference circulation pump and water-using end circulation pump)

Model ILA-SP118
1.Externality size: 450mm*310mm*150mm
2.Max. self consumption: ≤3W
3.Accuracy of temperature measuring: ±2^oC
4.Range of temperature measuring: 0~150^oC
5.Power of controlled pumps(temperature difference circulation pump, water-using end circulation pump) or electromagnetic valve : 600W
6.Electronical booster power: ≤3000W
7.Input signal: 6 temperature sensors (PT1000 for heat collector, NTC 10k B=3950 for water tank)
8.Output signal: 5 (electronic booster, 4 pumps or 3 pumps and 1 three way electromagnetic valve)
9.System working pressure 8 bar and safety valve response pressure 6 bar.
