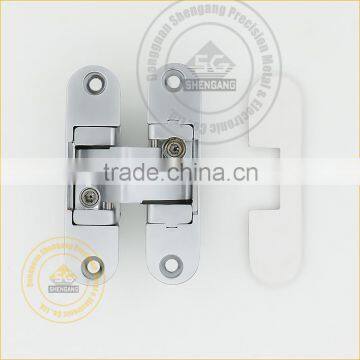

Concealed Hinge for Wooden Doors Types of Hinges for Doors

concealed hinge for wooden doors types of hinges for doors

Product Description

Products specification
Name	concealed hinge for wooden doors types of hinges for doors
Suitable for	Wooden door, folding door, interior door, cupboard door
Type	Italy type adjustable door hinge
Size	111.5*29*29*36mm(L*L*W*W*H)
Opening angle	180°
Min.door thickness	40mm
Max. Door weight	60kg/2pcs
Installation	left and right
Material	zinc alloy in main part, axes/screw is S.S#304
Finishing	Satin nickel, satin chrome, copper, brass, pearl chrome etc.



Primary Competitive Advantages:

1. concealed hinge for wooden doors types of hinges for doors
2. Brand-name Parts
3. Experienced Staff
4. Product Features
5. High  reputation
6. Country of Origin
7. Product Performance
8. Service
9. Packaging
10. Prompt Delivery
11. Small Orders Accepted
12. Guarantee/Warranty
13. Price
14. Quality Approvals

• package: every piece is packed into a poly-bag and then two pieces are packed in a box, ten boxes are packed in a carton.
• poly-bag’s size: 30.2*11*0.008cm;
• box’s size: 150*80*30mm
• carton’s size: 410*340*170mm
• fittings: two spanners and 16 stainless steel screws per box.

Usage and Installation

1. concealed hinge for wooden doors types of hinges for doors
2. suitable for security door, entrance door, antitheft door, anti-fire door, wooden door and interior door
3. Suitable max. door size is W1000*H2700mm
4. wear resistant discs without lubrication oil
5. rotate flexibly and test for over 200,000 cycles without abrasion
6. disregard the left installation and right installation
7. Installation method: the narrower side is installed on the door and the wider side is installed on the door frame. then the two machine-processed rice screws on the door side are to adjust the left-and-right direction. while the inner two cap head screws on the frame side are to adjust the up-and-down direction and the outer two cup head screws on the frame side are to adjust the front-and-back direction, that is also can be understood as the flatness degree.

Our after-sale service

1. concealed hinge for wooden doors types of hinges for doors
2. If the items you received had some problems, please feel free to contact with our After-sales service department in time within 30 days after you received the cargo and we will get down to it carefully and satisfactorily.
3. Tel: 0086-0769-8551 9582-8012
4. Time: 9:00 a.m.—6:00 p.m. (Beijing time)
5. Shengang, as a professional manufacturer and supplier, is specialized in developing, producing and marketing door and window hardware all over the world. With high quality, best service, reasonable price, we enjoy a good reputation in America, Europe and Asia. Please kindly contact with us freely. High quality, reasonable price and best service will be offered to you.

1. Year established : 2000

2. Factory area: 3500  m³

3. Number of people: 60

Enterprise spirit:
Create a world brand with making high quality;
Create brillant with hard working & acting integrity;
Win for all world with unique innoration

Dongguan Shengang Precision Metal & Electronic Co., Ltd was established in 2000, who specialises in the manufacture of quality door & window building products, including concealed hinge, invisible hinge, door hinge, soss hinge, adjustable hinge, hidden hinge, italy hinge, germany hinge, 3d hinge, zinc alloy hinge, 180 degree hinge etc. Shengang is committed to fulfilling the most challenging customer requirements and is constantly seeking to introduce and implement new viable systems for the construction industry worldwide. At the pass 15 years, shengang is dedicated to offering quality products with personalized efficient customer service.

Shengang Has more than 30 series different concealed hinge system, produced a strong and secure assembly. The unique design of shengang combines visual appeal, strength and versatility.

1. European Simplicity style.
2. We can design & produce as per your samples and requirements.
3. We have the ability to deliver orders promptly in a high quality
4. We own their hot-forging,maching,polishing,plating and assembling in our factory.

1. Could i get some samples for reference before ordering?

Yes, we could send you samples firstly, the samples are free. But the freight cost will be paid by your side.

2. What payment terms you accept?

Normally, T/T, Western Union will be available. But it all depends. We will discuss with you when ordering.

3. What kind of shipment you will choose when products finished?

TNT, UPS, FedEx, DHL, SF express, EMS, by sea, we will ship to you as per what way you like.
