Home > Products > New Products > HDMI in IP out 4 in 1 MPEG-4 Encoder IP;HDMI RTMP Encoder

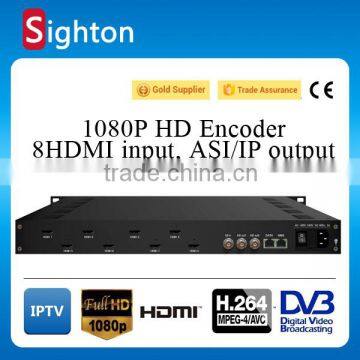

HDMI in IP out 4 in 1 MPEG-4 Encoder IP;HDMI RTMP Encoder

FOB Price

US$ 1 - 2,600 / Set

1 Set(Min. Order)

Port Chengdu Shenzhen Shanghai Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Sighton
Model Number	STHD-5518

Product Description

HDMI in IP out 4 in 1 MPEG-4 Encoder IP;HDMI RTMP Encoder

Weclome to contact Belle to fetch more quickly by Skype: fredasighton

Product Description

Outline

8 in 1 (4 in 1)MPEG-4 AVC/H.264 HD encoder professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HDMI (or SDI) channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format, and also 1 ASI input for re-mux. It can multiplex the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.

Except for 8 hdmi encoder model, there are 4sdi/hdmi encoder,8 sdi encoder, 4 cvbs and 8cvbs encoder,etc.Pls contact us to fetch more.

What is the Features of our hdmi rtmp encoder?

Support 8 HDMI/SDI channels input & 1 ASI Input
Support H.264/AVC video encoding
Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding
Support PSI/SI editing and inserting
Support VBR/CBR video bitrate mode
Support 720P, 1080I, 1080P HD video format
Support ASI output MPTS or 8 SPTS
Support IP Output MPTS and 8 SPTSSupport IP null packet filter
Real-time output bit-rate monitoring
Update device through NMS port
Support LCD / keyboard operating, and network management (SNMP)

What is the Specification of our hdmi rtmp encoder?

Input	8×HDMI (or SDI) inputs
	1 ASI input, BNC interface
Video	Resolution	1920×1080_60P, 1920×1080_50P
		1920×1080_60i, 1920×1080_50i
		1280×720_60P, 1280×720 _50P
		720×576_50i, 720×480_60i
	Encoding	MPEG-4 AVC/H.264
	Bit-rate	0.8Mbps~19Mbps (each channel)
	Rate Control	CBR/VBR
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, Noise Reduction, Sharpening
Audio	Encoding	MPEG-1 Layer 2 (HE-AAC V2, LC- AAC Option)
	Sampling rate	48KHz
	24-bit	Resolution
	Bit-rate	64Kbps~384Kbps each channel
Multiplexing	1 ASI input multiplexed with local 8 channels of TS
Stream output	2*ASI output, BNC interface
	MPTS and 8 SPTS over UDP/RTP, 1000 Base-T Ethernet interface (unicast / multicast);
System function	LCD/keyboard operating, net manager (SNMP)
	Chinese-English control interface
	Ethernet software & hardware upgrade
Miscellaneous	Dimension (W× L× H)	440mm×410mm×44.5mm
	Approx weight	4kg
	Temperature	0~45℃(work), -20~80℃(Storage)
	Power	AC 100V-220V±10%, 50/60Hz
	Consumption	25W

What is the Applications of our hdmi rtmp encoder?

What is the System Applications of hdmi rtmp encoder?

Except that 8 in 1 HDMI H.264 Encoder can be used for IPTV and DVB-C system, it is also usually used for DVB-T/T2,DVB-S2 System.If you need know more, pls contact us to fetch.

Network Management System

General Setting
Adding Frequency Point	Adding Equipment under Given Frequency Point


Video Parameters

Multiplexing

Packaging & Shipping

Trade,Packing & Shipping

Trade Process

Shipping 1.Door-to-Door; DHL/FedEx/UPS/TNT for samples, which one is convenient for you? 2.By Air or by Sea for batch goods;Airport/Port receiving; 3.Delivery Time: 5-7 days for samples; 5-25 days for batch goods.

Payment Terms

1.MOQ:1pcs

2.Warranty:one year

3.Payment:T/T,Western Union,PayPal;

4.Package Informations:1 pcs per carton with foam, the volume of the carton is 440mm×410mm×44.5mm

Our Services

Why Choose us?

1.We are a factory manufacturing digital front-end equipments,best production capability ,best quality control, best Service and competitve price.

2.Inspected by the Inspection Institution,100% QC inspection Before Shippment.

3.Terrific after-sales service: 24 hours around the clock & 12 months wannty life-long technical support for the product.

Welcome to connect with us as details below:

Belle

Chengdu Sighton Technology Co.,ltd
TEl:0086-028-87382204
FAX:0086-028-87382204
MOB:0086-18208127928
Skype:fredasighton

Company Information

Company View

Chengdu Sighton Technology Co., LTD. is more than five years manufacturer, specialized in digital TV head-end system.The company is a high-tech enterprise which concentrates on the research, manufacturing, sale and service of DVB products. Sighton is building up both domestic and overseas markets while making a good contribution to the CATV industry. Sighton's products including: Encoder, Encoder modulator, QAM modulator, QPSK modulator, DVB-S2 modulator, DVB-T modulaotr, multiplexer and Satellite Receiver...For the system, we can offer the total solution of DVB-C/T/T2/ from headend to user end with the way of cable, MMDS,especially concentrate on IPTV.And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.

Production Process

Our Certifications

FAQ

FAQ
Q1:Why buy the models from you?
A1:1)Highest quality and most reasonable price Strict product every step of the process and one month aging test Low repair rates, less than 0.2%. What’s amazing that the various styles models at reasonable price. 2)Delivery fast 5-7 days for samples; 5-25 days for batch goods 3)Best service Answering emails or solving questions timely. Update information on time Free repaired based on quality problem in 12 months as warranty.

Q2:Can it be shipped to my country? A2:We can ship items 98%countries in the world.

Q3:For the first time to import, how can I believe trust you ? A3We are Alibaba Trade Assurance gold supplier.If you pay us by Alibaba, Alibaba will keep your money safe, and make sure you receipt high quality goods.The function is the same as Paypal's.

Q4:What shall we do, if received damaged devices? A4:In order to avoid damage, each item is very well packed with foam and carton. If damaged, pls take the photo to us.
Q5: If we don,t know how to use the equipment, what you can help us? A5:We will send you the user manual before the devices arrived. You can operate the devices by control panel of the devices, follow the user manual. Even if you don,t know how to use panel, our technicians will teach you use Network Management System by Team-viewer.
Q6:As an agent, what you can do for us? A6:We can supply OEM, label for you. As our agent, we will give more discount based on your quantity to develop market. If you don,t know more technology, don,t worry about it, we can supply technical support before sale.
Q7:As end-users, what you can do for us? A7:Terrific after-sales service: 24 hours around the clock & 12 months warranty life-long technical support for the product.
