Home > Products > Transcoder > 8*IP input plus 6tuners (or 6*ASI) input low bitrate ip transcoder

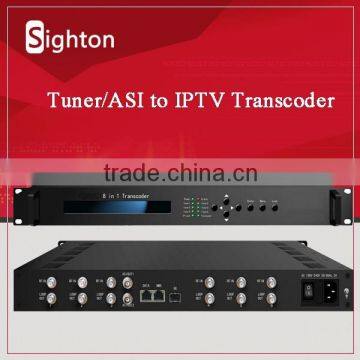

8IP input plus 6tuners (or 6ASI) input low bitrate ip transcoder

FOB Price

US$ 1 - 3,000 / Set

1 Set(Min. Order)

Port Chengdu Shenzhen Shanghai Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Sighton
Model Number	STT-5000

Product Description

8*IP input plus 6tuners (or 6*ASI) input low bitrate ip transcoder

Weclome to contact Belle to fetch more quickly by Skype: fredasighton

Product Description

Outline

STT-5000 is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 6 tuner inputs to receive channels directly from satellite, or ASI /IP inputs to receive digital channels. ( STT-5004)is a simple version with 4 Tuners only or 4 ASI inputs only without IP input.) After trans-coding, it outputs MPTS & SPTS through the DATA port or ASI port.

This trans-coder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.

BISS function is now embedded to descramble your tuner input programs and CC function as well to transport your closed caption (or teletext).

It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding..

Except for 8 in 1 iptv transcoder, 4 in 1 iptv transcoder, here are dvb to ip gateway,4sdi/hdmi encoder,8 sdi/hdmi encoder, cvbs encoder,etc.Pls contact us to fetch more.

What is the Features of our IP transcoder?

Support 8*IP (SPTS/MPTS) input plus 6*tuners (or 6*ASI) input ---STT-5000

4* tuners (or 4*ASI) input ---STT-5004

Support 8*SPTS & 1*MPTS (UDP/RTP/RTSP) output; 1 ASI (MPTS) output

Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any

Audio Trans-coding: AAC, MP2 and AC3 any-to-any or pass-through.

Support maximal 8 SD or 4 HD programs trans-coding

Support maximal 8 channel audio trans-coding

Support HD and SD resolutions

Support CBR and VBR rate control

Support CC (closed caption)

Support BISS descrambling

Support IP out with null packet filtered

Advanced re-multiplexing

LCD & Key board local control; web NMS management

What is the Specification of our IP transcoder?

Stream In	MPTS/SPTS over UDP/RTP, 1000M Base-T Ethernet Interface/ SFP interface --- STT-5000
	6 * (DVB-S/S2/C/T/ISDB-T/ATSC) Tuners; 6 * ASI (optional) --- STT-5000
	4 * (DVB-S/S2/C/T/ISDB-T/ATSC) Tuners; 4 * ASI (optional) --- STT-5004
BISS Descramble	Maximum 8 programs
Video	Resolution	1920x1080P,1920x1080i,1280x720P, 720x576i, 720x480i 480x576, 544x576, 640x576, 704x576
	Trans-coding	4MPEG2 HD → 4MPEG2/H.264 HD ; 4MPEG2 HD → 4MPEG2/H.264 SD ; 8 MPEG2 SD → 8 MPEG2/H.264 SD
		4* H.264 HD → 4MPEG2/H.264 HD ; 4 H.264 HD → 4MPEG2/H.264 SD ; 8 H.264 SD → 8 *MPEG2/H.264 SD
	Rate Control	CBR/VBR
Audio	Trans-coding	MPEG-1 Layer 2, AAC and AC3 any-to-any or pass through
	Sampling rate	48KHz
	Bit Rate	64Kbps-384Kbps
Stream Out	8SPTS & 1MPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface (UDP/RTP uni-cast / multicast) /SFP interface
	1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface
System Function	LCD & Key board control; web NMS management
	Ethernet software upgrade
General	Dimensions		430mm×405mm×45mm(WxDxH)
	Approx weight		4.8 Kg
	Temperature range		0~45℃(Operation), -20~80℃(Storage)
	Power requirements		AC 110V±10%, 50/60Hz or AC 220V±10%,50/60Hz
	Power consumption		20W

What is the Principle Chart of our IP transcoder?

What is the System Applications of our IP transcoder?

Network Management System

Transcoder Configuration

IPTV Output Setting

Packaging & Shipping

Trade,Packing & Shipping

Trade Process

Shipping 1.Door-to-Door; DHL/FedEx/UPS/TNT for samples, which one is convenient for you? 2.By Air or by Sea for batch goods;Airport/Port receiving; 3.Delivery Time: 5-7 days for samples; 5-25 days for batch goods.

Payment Terms

1.MOQ:1pcs

2.Warranty:one year

3.Payment:T/T,Western Union,PayPal;

4.Package Informations:1 pcs per carton with foam, the volume of the carton is 440mm×410mm×44.5mm

Our Services

Why Choose us?

1.We are a factory manufacturing digital front-end equipments,best production capability ,best quality control, best Service and competitve price.

2.Inspected by the Inspection Institution,100% QC inspection Before Shippment.

3.Terrific after-sales service: 24 hours around the clock & 12 months wannty life-long technical support for the product.

Welcome to connect with us as details below:

Alice

Chengdu Sighton Technology Co.,ltd
TEl:0086-028-87382204
FAX:0086-028-87382204
MOB:0086-13438813410
Email:alice@sightondvb

Company Information

Company View

Chengdu Sighton Technology Co., LTD. is more than five years manufacturer, specialized in digital TV head-end system.The company is a high-tech enterprise which concentrates on the research, manufacturing, sale and service of DVB products. Sighton is building up both domestic and overseas markets while making a good contribution to the CATV industry. Sighton's products including: Encoder, Encoder modulator, QAM modulator, QPSK modulator, DVB-S2 modulator, DVB-T modulaotr, multiplexer and Satellite Receiver...For the system, we can offer the total solution of DVB-C/T/T2/ from headend to user end with the way of cable, MMDS,especially concentrate on IPTV.And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.

Production Process

Our Certifications

FAQ

FAQ
Q1:Why buy the models from you?
A1:1)Highest quality and most reasonable price Strict product every step of the process and one month aging test Low repair rates, less than 0.2%. What’s amazing that the various styles models at reasonable price. 2)Delivery fast 5-7 days for samples; 5-25 days for batch goods 3)Best service Answering emails or solving questions timely. Update information on time Free repaired based on quality problem in 12 months as warranty.

Q2:Can it be shipped to my country? A2:We can ship items 98%countries in the world.

Q3:For the first time to import, how can I believe trust you ? A3: We are Alibaba Trade Assurance gold supplier.If you pay us by Alibaba, Alibaba will keep your money safe, and make sure you receipt high quality goods.The function is the same as Paypal's.

Q4:What shall we do, if received damaged devices? A4:In order to avoid damage, each item is very well packed with foam and carton. If damaged, pls take the photo to us.
Q5: If we don,t know how to use the equipment, what you can help us? A5:We will send you the user manual before the devices arrived. You can operate the devices by control panel of the devices, follow the user manual. Even if you don,t know how to use panel, our technicians will teach you use Network Management System by Team-viewer.
Q6:As an agent, what you can do for us? A6:We can supply OEM, label for you. As our agent, we will give more discount based on your quantity to develop market. If you don,t know more technology, don,t worry about it, we can supply technical support before sale.
Q7:As end-users, what you can do for us? A7:Terrific after-sales service: 24 hours around the clock & 12 months warranty life-long technical support for the product.
