Home > Products > Metal Pushbutton Switch > High Actuator Security Vandalproof Push Button Switch L22(Dia.22mm)

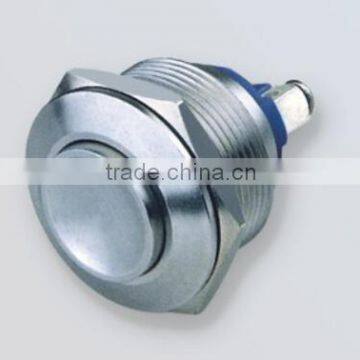

High Actuator Security Vandalproof Push Button Switch L22(Dia.22mm)
US$ 2.2 - 3.7
/ Piece
1 Piece(Min. Order)
- Ningbo or Shanghai
- Credit Card
You May Like
-
Flat Round Vandalproof Security Push Button Switch L22(Dia.22mm)
-
Domed Waterproof Security Push Button Switch L22(Dia.22mm)
-
Flat Actuator Security Vandalproof Push Button Switch L22(Dia.22mm)
-
Domed Actuator Security Waterproof Push Button Switch L22(Dia.22mm)
-
Flat Round Waterproof Doorbell Push Button Switch L22(Dia.22mm) With Triangle Symbol
-
One stop pcb &pcb assembly &pcb design
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BAOKEZHEN | |
| Model Number | NL22-1G-2J | Protection Level | IP65, IK10 | |
| Max. Current | 5A | Max. Voltage | 250V |
Product Description
Specifications
Operation type: MomentaryFront shape: High Round
IP Degree: IP65, IK10
LED spec.: Without Lamp
| Mounting hole: Φ22mm diameter |
| Operation type: Momentary |
| Contact Configuration:1NO |
| Front shape: High Round |
| Terminal Type: Screw Terminals |
| Max.Switch Rating: 5A/250V |
| Contact Resistance: ≤50mΩ |
| Insulation Resistance: ≥1000MΩ |
| Dielectric Strength: 2000VAC |
| Operation Temp: -20°c ~ +55°c |
| Mechanical Life: 500,000cycles |
| Electrical Life: 50,000cycles |
| Panel Thichness:1~10mm |
| Torque: 5~14Nm |
| Operation Pressure: About 4N |
| Operation Travel: About 1.8mm |
| IP Degree: IP65, IK10 |
| Contact Material: Silver Alloy |
| Crust Material: Stainless Steel |
| Button Material: Stainless Steel |
| Body Material: Stainless Steel |
| Base Material: PA66 |
| LED Spec Type: Without Lamp |
We can especially make for you according to your requirement,including laser inscription,change installation dimensions,change appearance colors,change material and so on.If you have any question,pls feel free to tell me.We shall spare no efforts in endeavouring to be of service to you.Pls contact us for more information.
