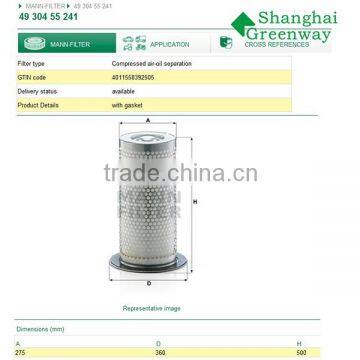

MANN 4930455241 Air/oil Separators for Screw-type Air Compressors

MANN+HUMMEL 4930455241 Wrap Elements Air/oil separators for Air Compressors of Screw-type and Sliding Vane.

MANN+HUMMEL Air/oil separators Design and function
This product is suitable for flow from the outside to the inside. It can be used for the entire range of current versions of screw-type and sliding vane compressors.
The standard wrap elements are particularly insensitive to design variations and achieve optimal results with regard to separation efficiency and service life.
Pressure drop
The pressure drop at nominal flow rate and at 7 bar(0.7 MPa) operating pressure with a new element is 0.17 bar(17 KPa). If a higher resistance is permitted, the volumetric flow rate can be doubled without downgrading performance.
Pressure resistance
The standard wrap elements designed for pressure differences of at least 5 bar(0.5 MPa).
Separation efficiency
The residual oil content at nominal flow rate and at 7 bar (0.7 MPa) operating pressure is approximately 1 to 3 mg/m3.
Service life
The rise in flow resistance and thus service life primarily depend on the cleanness of the oil and the quality of the air filter. A service life of several thousand hours can be achieved with a wellfunctioning system.

1 We will check the packing carefully  to avoid the damage during the transportation;

2 We  promise to do the airmail ,shipping,express promptly with our professional team.

1. We can cope with any problems that you meet related to our products ;

2 .Located in Shanghai, our company makes full use of the advantages of Shanghai as

    China's largest economic,financial, trading and shipping center to develop foreign trade.

3. We have been serving for our customer since 2007.

4. All of us at Shanghai Greenway have a vast experience in the vehicles and industrial fields.

5. We have access to all the information necessary to provide you with quotations and service

1 Do you supply original MANN FILTER ?
  Yes, original. Our company is an authorized distributor with the approval from MANN+HUMMEL

2 Could you give your customers some discount?

    Of course, We can give your a discount appropriately;

3 How about your packing?
    Original MANN packing.
