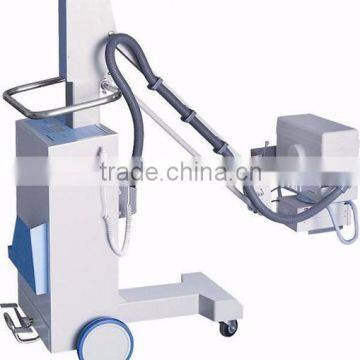

Model: MCX-101A

Specifications:

Power Output: 3.5KW

Main Inverter frequency: 40 KHz

X-ray Tube:

fixed anode focus: 1.5 (X-ray tube for high frequency)

Tube Voltage: 40kV~~110KV (interval 1KV)

Tube Current: 20mA~~63mA

40-49KV    63mA    1~~125mAs

50-59KV    55mA    1~~110mAs

60-69KV    45mA    1~~90mAs

70-79KV    40mA    1~~80mAs

80-89KV    36mA    1~~71mAs

90-100KV   32mA    1~~63mAs

100~~110kV 20mA    1~~40mAs

mAs: 1.0~~125mAs (43Steps)

Power Supply: 220V±10%   50HZ   Inner-resistance ≤1.0Ω

Operation Method: Wire/wireless control

Standard configurations:

1. Combined high-frequency high-voltage X-ray generator and high-frequency inverter power supply (3.5kW, 110kV, 40 kHz)                                             one set

2. New mobile X-ray photography mainframe                       one set

3. Mobile X-ray photography control system                         one set

4. Rotating beam limiting device                                           one set

5. Remote control                                                                  one set

6. Spare parts (See spare parts list for detail information)             several

Usage:

The machine is combined high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc. It is mobile diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spine.

Features:

1.  With compact appearance, flexible movement

2.  With high frequency inverter to emit high quality X-ray and low dose on skin, and ensure               excellent definition and contrast of pictures

3. With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose.

4. With kV, mAs two button adjustment, LCD display, multifunction of safety guard.

5. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.

6. With a high-quality knockdown X-ray generator to reduce irradiation, it is much safer to environment and operator.

7. With fault automatic protection setting and fault alarming display

8. The system can keep parameters automatic, in case losing data.

9. With a rotating beam limiting device to adjust the X-ray field and angle, so it can ensure accurate radiography results.

10. With dual safety locking functions in rocker, so it’s safe to use.

11. With cassette storage box, it’s convenient for medical staff.

12. Manual control and remote control are used to expose. Wireless remote exposure control can penetrate barriers, which makes operation more convenient.

Beside MCX-101A 3.5kW High frequency Mobile X-ray Machine , we offer series X-ray machne.
