PVCwaves board extrusion line
- Shanghai
You May Like
Product Details
| Condition | New | Application | Sheet | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Shanghai, China | |
| Brand Name | Shanghai Jurry | Model Number | DOUBLE lAYER | |
| Voltage | according to the machine | Power(W) | according to the machine | |
| Dimension(L*W*H) | according to the machine | Weight | according to the machine | |
| Certification | CE and ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

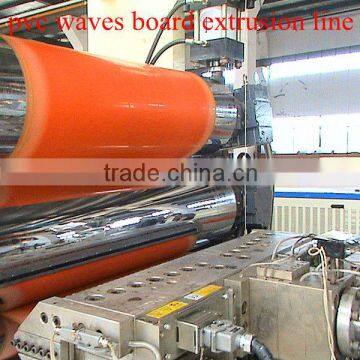

PVC waves board extrusion line
The tile extrusion line is the latest product that manufactured by our company. It has high efficiency and good quality.
1. This prodcution line uses two extruders to extrude the wave tile product.
2. It has one set of mould, one set of three calender, one set of oven and two sets of winders.
3. The main extruder is the conical twin screw etruder. Optimized design and delicately made screw and barrel results in excellent plasticity. Advanced electric control system, subsection failure alert, easily for trouble-shooting. High-performance distribution system for torque decelaration enhanced the durability and easy for maintenance. Highly efficient and super noise-free ventilators ensure quietly perating of equipment.
4. This machine has very good quality and proper price.
1 Extruder:
Parts | No | Name | Brand |
Electric parts | 1 | Inverter | Switzerland ABB |
2 | Contactor | Schneider | |
3 | Relay | Schneider | |
4 | Temperature meter | RKC meters | |
5 | Breaker | Delixi | |
| |||
Driving parts | 1 | Motor | Siemens AC motor |
2 | Gear box | Top brand in China | |
| |||
Screw and barrel | 1 | Technology | Adopt German technology |
2 | Main materials | 38CrMoALA | |
3 | The barrel is equipped with vacuum system | ||
4 | The screw is equipped with thermostat system | ||
5 | Heating ring | Cast aluminum heating ring | |
| |||
Calibrated feeding device | 1 | Speed controller | ABB inverter |
2 | It is equipped with stirring device | ||
| |||
Protection system | 1 | Screw dislocation protection | |
2 | Current overload protection | ||
3 | A full set alarming system | ||
2 Mold
No | Name | Specs |
1 | Main materials | Mould steel |
2 | Temperature control system | Japanese RKC temperature meter |
3 | Pressure ratio | Made according to the PVC roof product |
4 | Heating ring | Mica heater |
3 Three calender
No | Name | Specs |
1 | Roller Dia. | 400mm |
2 | Power | 3kw*3 |
3 | Cylinder station | one set |
4 | Movement power | 0.75kw*1 |
4 Oven
No | Name | Specs |
1 | Heating bar | 24PCS |
2 | Heating bar Dia. | 24mm |
3 | Power | 3kw*24 |
5 Five roller calibrators
No | Name | Specs |
1 | Drive type | By gear |
2 | Power | 5.5kw*1 |
3 | Edge cutting blades | 2sets |
6 Winder
No | Name | Specs |
1 | Quantity | 2sets |
2 | Strength | 5N.M |
7 Hauler
No | Name | Specs |
1 | Hauling speed | 8m/min |
2 | Power | 3kw*1 |
3 | Hauler type | 2rollers |
8 Cutter
No | Name | Specs |
1 | Cutting control | By PLC or by manual |
2 | Power | 3kw*1 |
3 | Cutting type | Round way type |
9 Stacker
Length: 3m
The surface plate, baffle plate is made of stainless steel. It can be disassembled easily.
10 after sales service:
----After production, we would invite you to test machines in our factory.
----After shipment, we would send our engineer to install the machines and communicate with your engineer in your factory.
----After installation, we would reply to your problem within 24 hours and if necessary we could send our engineer to your factory.
