MC-DU-Q8 Portable OB/GYN 3D/4D 4d portable ultrasound machine

MC-DU-Q8 Portable OB/GYN 3D/4D 4d portable ultrasound machine

Model:   MC-DU-Q8

(Good performance for ABD, OB/GYN, Small Parts, Cardiac,  Physical therapy and MSK)

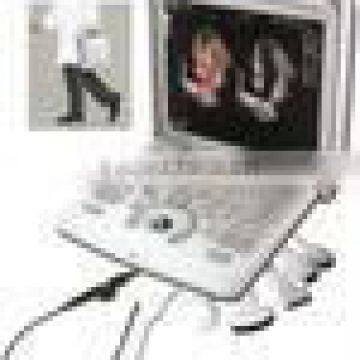

MC-DU-Q8 Portable OB/GYN 3D/4D 4d portable ultrasound machine  is a multi-purpose, all digital, portable Color Doppler ultrasound system, which supports up to 256 probe elements. It features superior image quality across wide range of diagnostic applications, such as Abdominal, OB&GYN, Cardiac, Vascular, Small parts, Pediatric, Neonatal and Musculoskeletal.

With its cutting-edge technologies,  Q8 is one of few pioneers in the world which incorporate sophisticated features like real-time 4D, TDI, TEE scanning into one compact box.

A Work-flow oriented User Interface is built to allow user-friendly operation with minimum soft key entry. Ergonomical design of keyboard, double probe connectors, USB and DICOM connectivity makes your scanning FAST and EASY, and allow you focus more on your patients.

 4D upgradeable
 TDI quantities cardiac analysis
 2 probe connectors
 THI on all probes
 Probe elements up to 256
 Double Phasing Digital Beam Forming

Specifications of the Portable Cardiac Color Doppler Ultrasound Scanner:
Imaging modes:
B, 2B,4B,B/M,
B/BC, CFM
PW, HPRF, CW
PD, Directional PD
Instant Triplex, Duplex
Trapezoidal
Panoramic
TSS
Free-Hand 3D (Optional)
Real-time 4D (optional)
Chroma B/M/PW/CW

Probe of the Portable Cardiac Color Doppler Ultrasound Scanner:
Electronic Convex,
Electronic Linear
Electronic Micro-convex
Electronic Phased array
Wideband(broadband) Multi-frequency

Image processing technology
Double Phase Digital Beam Forming (DPDBF)
THI on all probes
Speckle Reduction Algorithm (SRA)
Multiple Compound Imaging (MCI)
i-ImageTM (Optional)

Measurement & Report packages
OB&GYN, Cardiac Vascular, Urology

Professional Clinical Applications of the Portable Cardiac Color Doppler Ultrasound Scanner:
Abdominal, Obstetrics
Gynecology, Cardiac
Vascular and Small parts
Pediatric, Neonatal
Musculoskeletal

Standard configuration of the Portable Cardiac Color Doppler Ultrasound Scanner:
Main unit,15" LCD,2 probe connectors,
 Hard disk (160GB), 2USB ports

Options of the Portable Cardiac Color Doppler Ultrasound Scanner:
3.5MHz Convex probe
7.5MHz Linear probe (40mm)
9.5MHz Linear probe (60mm)
6.0MHzTransvaginal probe
7.0MHz Trans vaginal probe (180°)
3.0MHz Phased array probe (Adult)
6.0MHz Phased array probe (Pediatric)
5.0MHz Micro-convex probe
5.0MHz TEE probe (Adult)
6.0MHz Pediatric Micro-convex probe
Biopsy kit is available (probe dependent)
Real-time 4D package:
4D software and 4D volume probe
Extended Cardiac Package:
ECG, Free Steering M, Color M, TDI
IMT
Video printer, PC printer
Trolley
DICOM
