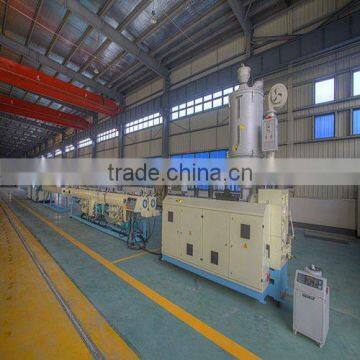

PE63*2 Double Outlet Pipe Extrusion Line

PE pipe extrusion line:

1 High efficiency single screw extruder:

1) Screw and barrel:

The main technology is from Germany.

The material: 38CrMoALA.

The barrel is equipped with a complete temperature control system.

2) Electric components:

Controlling system: Siemens computer and PLC

Contactor and relay: Schneider.

Breaker: DELIXI

Speed regulator:ABB DC drive

Other components are from good electric parts manufacturers.

3) Driving system:

Main motor: DC motor from WUXI Xianfeng

Motor speed regulator: ABB DC drive

Gear Box: from Guomaoguotai and the gear box is equipped with a compulsive lubricating system and cooling system. The gears are quenched and carburized.

4) The feeding system:

The feeding device is vacuum auto-loader which would dry the materials effectively during feeding.

2 Pipe mould:

Main technology: from Germany.

Material: refined 45# steel forge piece. Inner wall chromed.

Type: spiral type

3 Vacuum calibration tank;

Material: stainless steel.

Vacuum pump and water pump: from Shanghai YVLONG.

Water temperature control device and vacuum degree control device is equipped with the calibration tank.

Optimized design of the water path

Convenient operation

4 Spraying cooling tank

Material:stainless steel

Water pump: from Shanghai YVLONG

Optimized design of the water path

Convenient operation

5 Hauler

Type: pedrail type

Hauling motor: servo motor from TECO

Speed controller: servo motor controller

Gear box: Desen (Sino-Germany joint venture)

The pedrail is equipped with self-protecting device.

6 Cutter

Controlling device: PLC from LG

Blade feeding device: hydraulic feeding.

7 Stacker

Type:auto-stacking

Main material:stainless steel.

Note: all the electric components are from manufacturers, such as:Siemens, Schneider, DELIXI and so on.

8 Certificate: ISO and CE

9 Designed output capacity: 300kg/h
