Steel cord conveyor belt for wood used, industrial conveyor belt

  Steel cord conveyor belt

The product description:

    The standard steel cord conveyor belt uses high strength steel wire rope as the carcass materials.The steed wire rope, after cole rolling as well as having been added with core rubber and rubber layer, is treated with vulcanization process to form standard steel cord belt used for conveying. Zinc coated steel wire rope meets various special requirements. It comes with high flexibility but low elongation, and can tightly bonded with core rubber to form anti-corrosion protective layer.

 Product features and advantages:

1. High Strength Steel Wire Rope
Our steel cord reinforced rubber conveyor belt meets many different clients'equirements. We continuously develop higher strength steel cord conveyor belt for long-distance conveying system.

2. Less Strokes of Tension
On the premise of rated tensile force, our steel cord belt has the maximum elongation. It can decrease the fees of tensioning systems in many application occasions. Consequently, it is the best belting solution for long distance transportation or conveying occasions of low elongation.

3. Longer Joint Lifespan
Dynamic coupling of our steel cord conveyor belt has been inspected by a testing machine. When its dynamic coupling withstands load that exceeds 50% of the rated strength, the joint if it tested in compliance with DIN22131, still has the service life as long as that of belt.

4. High Impact Resistance
The rubber layer and core rubber are closely bonded, offering better resistance to impact and tearing.

5. Lower Transportation Cost
The standard steel cord conveyor belt needs just a few joints, shorter tensioning stroke, etc. All those help lower the investment. Its longer service life means short downtime, lowering unit transportation cost.

Application field:

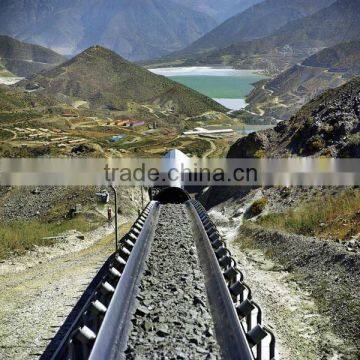

    As a kind of rubber conveyor belt with steel wire reinforcement, the steel cord conveyor belt is suitable to the conveying of materials in the industries including coal, mines, ports, electric power, metallurgy, construction materials, etc. Hence, if you are searching for durable coal conveyor belts, mining conveyor belts, etc., then this range of conveyor belt with steel cord reinforcement is the optimum choice for you. It is designed to handle the toughest conveying applications.

Specifications:

1.type:ST630--ST2500

2.width: 800--1800mm

ld resistant: -30 ºc; -60 ºc

4.heat resistant: ≤180 ºc

5.oil resistant

6.we can design as the customers' requirements

specific technical data:

Shandong Xinxin Rubber Co.,Ltd.

     Shandong XinXin Rubber Co.Ltd. is located in the hometown of the ultimate master of war grandson, liju opera, the national contries-guangrao, which is a conveyor belt professional manufacturers. We are an integrated manufacturer with guard conveyor belt, nylon conveyor, polyester rubber conveyor belt, EP enhance conveyor belt, heat resistant conveyor belt (high temperature), acid and alkali resistant rubber conveyor belt, ting belt, wear resistant conveyor belt, etc. What's more, our company have all kinds of test equipment, such as universal electronic tensile testing machine, abrasion machine, digital viscosity tester, high resistance meter, rubber desktop thickness meter, rubber dosimeter, rubber permeameter, roller friction testing machine and other test equipment.

    Our company produce flame retardant conveyor belt on the basis of MT914-2008 standard, layered conveyor belt of GB-T7984-2001, thermal stratification conveyor belt of HG/T2297-1992, coal mine special steel cord conveyor belt of MT668-2008, steel cord conveyor belt GB/T9770-2001. Products can also be based on other national standards production corresponding products.

business partners:

working machine:

testing equipment:

 packaging:

logistics:

Welcome your inquiry!

FAQ

1. Is XinXin Rubber a manufacturer?

--Our company is a 100% manufacturer, and welcome to our factory to have a visit.

2. What is your main products?

--We have guard conveyor belt, nylon conveyor belt, polyester rubber conveyor belt, EP enhance conveyor belt, heat resistant conveyor belt, acid and alkali resistant rubber conveyor belt, ring belt, wear resistant conveyor belt.

3. What is your delivery time?

--Within 15 days in general, and it depends on the quantity of the order.

4. What is your payment term?
--We accept 30% T/T in advance,70% in the period of shipment, or L/C at sight.

5. Where is the nearest shipping port to your factory?

--We ship the goods via Qingdao Port.

6. How about the samples?

-- We could send you the samples, which are free to send to most places in China. If sent to other countries, transport fee should be paid by you for the 1st time, if we become business partners, samples and documents will be free of charge.

7. What would be your advantages?

-- Our advantages: supply high quality conveyor belt, good service, great price and fast delivery.
