Home > Products > Word Stock Display > 128x32 lcd Chinese word stock modules 8-bit/4-bit Parallel,3-SPI Serial

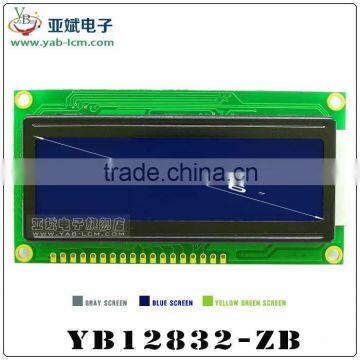

128x32 lcd Chinese word stock modules 8-bit/4-bit Parallel,3-SPI Serial

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	YB
Model Number	YB12832ZB		Type	Other, Chinese word stock

Product Description

128x32 lcd Chinese word stock modules 8-bit/4-bit Parallel,3-SPI Serial

Product Description

1. Describe :

Gross Weight (kg)
Manufacturer	YaBin
Series Number	YB12832ZB
Display Format	128*32Dots
Outline Dimension	844413mm
Visual Area	70*20mm
Active Area	66.5*16.6mm
Diagonal Size	2.866 inch
Dot (Pixel) Size	0.48*0.48mm
Dot (Pixel) Pitch	0.52*0.52mm
IC Package	COB
IC or Equivalent	ST7920 or EQV
Interface	8-bit/4-bit Parallel,3-SPI Serial
Display Type	STN/FSTN
Sunlight Readable	No
Touch Panel Optional	No
Contrast Ratio(Typ)	No
Viewing Direction	6:00
LED Backlight Color	Blue /Yellow Green /Gray
Appearance	White on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)	3.3V/5V
Backlight Current (Typ)	45mA
Operating Temp	-20℃~70℃
Storage Temperature	-30℃~80℃
If accept customized	Yes
RoHS Compliance	Yes

2.Overall dimensions:

3.Interface pin connec:

Detailed Images

Packaging

Product Range

According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, TN and STN lcd display module,character and graphic lcd module,industrial lcd,we can match all accessories which inclusive of driver board,LED backlight

1.We provide a verity of lcd glass and lcd moudle, Includeing TN LCD,HTN,STN,FSTN,LCD,COB,COG( 8 Digital LCM )

2.Character Module: Whole product series for 8x2, 16x1, 16x2,16x4,20x2,20x4,24x2,40x2,40x4 characters

3. Graphic Module: Including 64x32 dots,122x32 dots,128x32 dots,128x64 dots,144x32dots,192x32 dots,

192x64 dots,160x80 dots,240x128 dots, 320x240 dots series.

4. LCD Display Module, TFT

Our advantages

1.Skilled technology and strict for quality.

2.Powerful products design and develop.

3.Experienced sales team

4.Prompt delivery and service

5.Low cost solutions and high quality product supply

2 Character lcd screen is elaborated as follows:

Advantages:

1. Backlight Replaceable

2. LED backlight

3. Wide view angle

4. High Quality

5. Produced in our own factory

6. Reasonable Price

FAQ

1. Long Term Continuity Supply Warranty

We understand you probably worry whether we still offer the display after your long development time.EastRising gives the promise to every

customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller

IC may stop the production,we’ll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we’ll make the new

tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long.

2. What is covered under warranty and for how long?

All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the

date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment.

If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt.

3. What is not covered?

Warranty is void and no repair or replacement is granted under the following conditions:

3-1. Evidence of mechanical stress to parts including but not limited to.

3-2. Damaged or broken glass or touch screen.

3-3. Damaged conductors/components.

3-4. Damaged polarizer.

3-5. Damaged mounting holes.

3-6. Parts tamper ed with by grinding, engraving, drilling, cutting or applying coatings of any kind.

3-7. Addition or removal of components.

3-8. Evidence of damage caused by applying incorrect voltage.

3-9. Evidence of damage caused by operating outside of specified temperature range.

3-10.Evidence of damage caused by electrostatic discharge (ESD).

4. What if I have a defective product under warranty?

We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or refurbished product.

"Refurbished" means a component that has been returned to its original specifications. We do not give refunds, credit memos.

5. How do I make a warranty claim?

For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.(Please refer to our “Return"

policy for more detail.)
