customization yellow blue gray lcd display 20x2 character lcd module

FOB Price

USD $3.74 - $4.62 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	YB
Model Number	YB2002B		Type	Character

Product Description

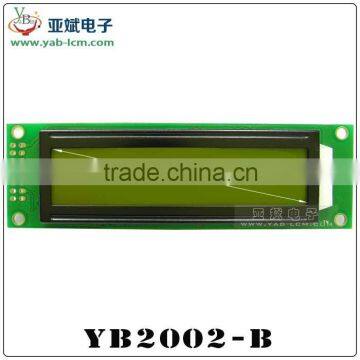

customization yellow blue gray lcd display 20x2 character lcd module

Product Description

1. Describe :

Manufacturer	YaBin
Series Number	YB2002-B
Display Format	20x2 Dots
Outline Dimension	116(W)x37(H)x12.8(T)mm
Visual Area	82.6×18.4mm
Active Area	73.5(W)x11.5(H)mm
Character Size	3.2x5.55mm
Diagonal Size	3.3“
Dot (Pixel) Size	0.60X0.65mm
IC Package	COB
IC or Equivalent	SPLC780C/HS44780/KS0066 or Equivalent
Interface	6800 8-bit/4-bit Parallel
Interface	parallel
Display Type	STN/FSTN
Sunlight Readable	No
Touch Panel Optional	No
Contrast Ratio(Typ)	No
Viewing Direction	6:00
LED Backlight Color	Blue /Yellow Green /Gray
Appearance	White on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)	3.3V/5V
Backlight Current (Typ)	45mA
Operating Temp	-20℃~70℃
Storage Temperature	-30℃~80℃
If accept customized	Yes
RoHS Compliance	Yes

2.Overall dimensions:

3.Interface pin connec:

Price

1.Material cost breakdown:
Product model	YB2002-B	specifications	yellow-green / blue 5V (standard configuration)
Items	price (USD)	Items	price (USD)
Print circuit board	0.42	electronic element	0.02
Liquid Crystal Display	0.87	Integrate circuit	0.29
Iron box	0.15	Chip on board assembly (independent production)	0.4
LED backlight (independent production)	0.42	production cost (SMT+COB+assembly+packing)	0.4
Conductive article	0.08	material loss	0.2
cost of total amount			3.25
2.Market pricing:
Minimum quantity (PCS)	Rate of profit (%)	total profit (USD)	EXW price (USD)
1-49(sample)	35%	1.14	4.39
50-99(Small batch)	30%	0.98	4.23
100-499(Small batch)	25%	0.81	4.06
500-999(big batch)	20%	0.65	3.90
more than 1000(big batch)	15%	0.49	3.74
Special configuration, the price is negotiable. If there is disagreement on the above price please contact me with details, thank you!

Detailed Images

Packaging

Product Range

According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, TN and STN lcd display module,character and graphic lcd module,industrial lcd,we can match all accessories which inclusive of driver board,LED backlight

1.We provide a verity of lcd glass and lcd moudle, Includeing TN LCD,HTN,STN,FSTN,LCD,COB,COG( 8 Digital LCM )

2.Character Module: Whole product series for 8x2, 16x1, 16x2,16x4,20x2,20x4,24x2,40x2,40x4 characters

3. Graphic Module: Including 64x32 dots,122x32 dots,128x32 dots,128x64 dots,144x32dots,192x32 dots,

192x64 dots,160x80 dots,240x128 dots, 320x240 dots series.

4. LCD Display Module, TFT

Our advantages

1.Skilled technology and strict for quality.

2.Powerful products design and develop.

3.Experienced sales team

4.Prompt delivery and service

5.Low cost solutions and high quality product supply

2 Character lcd screen is elaborated as follows:

Advantages:

1. Backlight Replaceable

2. LED backlight

3. Wide view angle

4. High Quality

5. Produced in our own factory

6. Reasonable Price

OEM Service

OEM is accepted Customized LCD Module we are welcome Various LCD Display Mode Available Various LED Backlight Color Available Various Temperature Range Available
