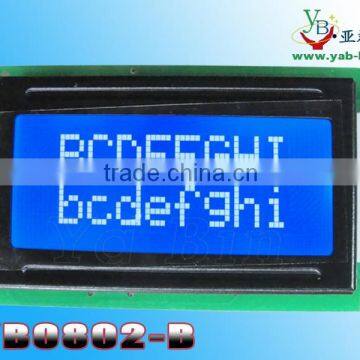

8x2 character lcd display (NO:YB0802B)

FOB Price

US$ 1 - 1.7 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	YB
Model Number	YB0802B		Type	Character

8x2 character lcd display (NO:YB0802B)

Product Description

Gross Weight (kg)
Manufacturer	YaBin
Series Number	YB0802-B
Display Format	8x2 Dots
Outline Dimension	58(W)x32(H)x13.2(T)mm
Visual Area	38×16 mm
Active Area	27.45(W)x11.5(H)mm
Character Size	2.45X4.9545mm
Diagonal Size	1.6“
Dot (Pixel) Size	0.45X0.488mm
IC Package	COB
IC or Equivalent	SPLC780C/HS44780/KS0066 or Equivalent
Interface	6800 8-bit/4-bit Parallel
Interface	parallel
Display Type	STN/FSTN
Sunlight Readable	No
Touch Panel Optional	No
Contrast Ratio(Typ)	No
Viewing Direction	6:00
LED Backlight Color	Blue /Yellow Green /Gray
Appearance	White on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)	3.3V/5V
Backlight Current (Typ)	15mA
Operating Temp	-20℃~70℃
Storage Temperature	-30℃~80℃
If accept customized	Yes
RoHS Compliance	Yes

Size

1.Dimensional Drawing(Unit:mm)

2. sequential interface

Detailed Images

Advantages

Competitive Advantages :

1.High Quality. RoHS ,SGS compliant. Every products are strictly checked by our quanlity control department before shipment.

2. Resonable price. A favorable factory price offer will be quoted on the basic of parameters which you provide to us, hope it

could show you our sincerity and bring a good long-term business relationship with your esteemed firm in near future.

3.Best Service. We provide best pre-sales and after-sales service to you

4.Custom Design,can specially meet your needs

5.Fast Delivery ,about 20 days for lead time

6.Samples available on request

7.Small MOQ orders can be negotiated

Different specifications lcd/lcm can be customized!
