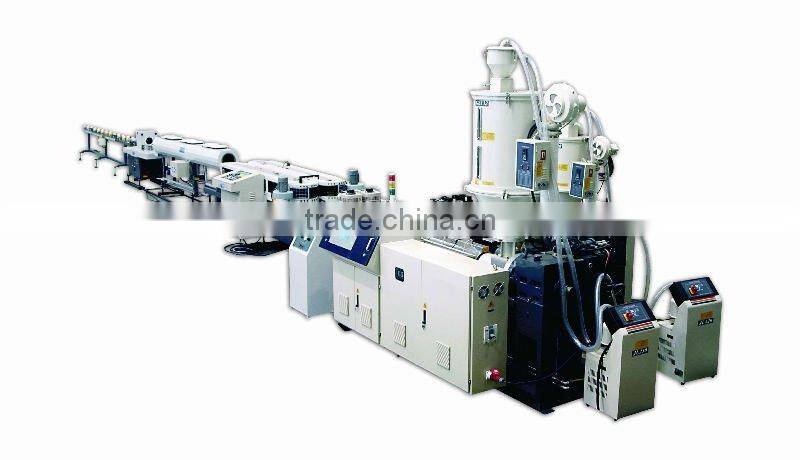

HDPE Heavy-caliber Hollow Tube Production Line/HDPE Heavy-caliber Hollow Tube Production Line

Use and characteristic: Our company successfully develops the hollow twines tube production line on the basis of fully absorbing and digesting the European technology, the tubing takes the high-density polyethylene as the main raw material,

After passing through the first extruding machine to squeeze out the rectangular pipe, it enters the twines shaper. At the same time the second extruding machine blows out the glue block, and then it extrusion bonds to become. Its  inter and outer wall is smooth, specification is 200-2200mm. It can be divided into 4 ranks, according to the different use link rigidity, the

highest may reach to 16KN/M2, can adapt acid and alkali liquid below 10%. This kind tubing has the merit of quality light, anti-corrosive, simple installment, high flow capacity, long life (for 50 years) and so on, may substitute the tubing made of high energy consumption material

(cement, cast iron, ceramics etc.), it is widely used in the dumps pollutants pipeline on the field of highway, municipal administration construction, residential district, athletic field, square, mine, agriculture, culvert, bridge draining water, Technical parameter

Main Technical Parameter

1.Product specification (mm)
Ø200  Ø300  Ø400  Ø500  Ø600  Ø700  Ø800  Ø900  Ø1000
Above each specification divides two ranks, surrounds steelS1O 4KN/M2, S2 is 8KN/M2.

2.Extruding machine

3. nose thermal rating 22kw Financial plastic nose, square nose.

4.the vacuum stereotypy box

5. tractor   above 20000N

6.,twines the shaper

7.Cutter

8.Turns the turnplate

9.disposition

10.Electricity

This machine has good man-machine interface
This machine uses the England European land velocity modulation, the Japanese Fuji frequency changer.
The electrical part completely uses the import part (circuit breaker, contact device from German Siemens; CPU from shell Calais, button from Shi Naide).
Entire machine uses shell Calais CPU programmable controller, middle uses the field bus control technology, makes correspondence length amount to 1.5 kilometers. The host screen can control and observe the whole system movement and parameter, the technology content achieves the international advanced level.

Note: In addition, it can produce 1200-2000mm, 2000-3000mm molding machine
