Home > Products > Inverter Air plasma cutting machine > Portable Mini Inverter Plasma Cutter Cutting CUT 40 Price Quality Choice

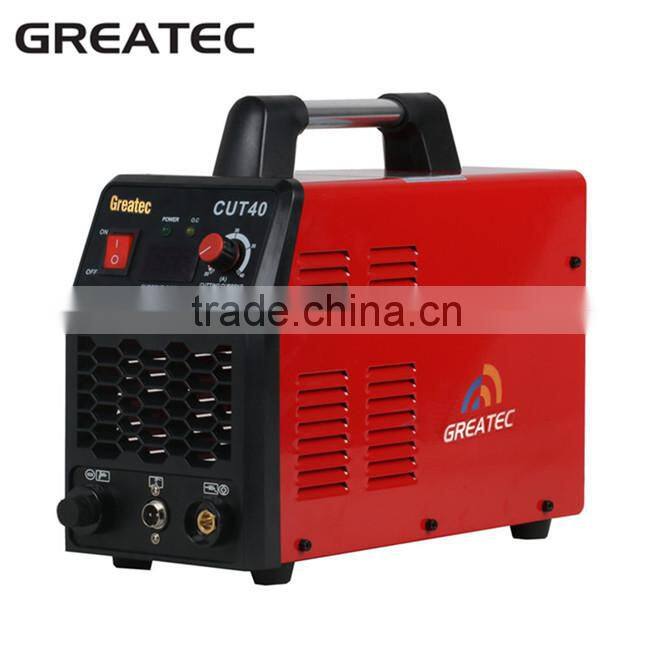

Portable Mini Inverter Plasma Cutter Cutting CUT 40 Price Quality Choice
- SHENZHEN
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | GREATEC | Model Number | CUT40 | |
| Voltage | 220V | Rated Power | 0.93 | |
| Dimension(L*W*H) | 371*153*299 | Weight | 9KGS | |
| Certification | CE | Warranty | 1years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Function and Feature
1.PWM modulation Technology
2.High frequency
3.Smart Size,light,energy saved
4.High energy concentration and fast cutting
5.Wide range in application
6.Advanced cutting gun cooling
7.Air pressure regulator,can be used in the high atmospheric pressure
8.Over current, over voltage,over pressure protection
9.Suitable for household
| MODEL | CUT30 | CUT40 | CUT50 | CUT60 | CUT70 | CUT100 | CUT120 |
| Input power voltage(v) | single phase/220V | single phase/220V | single phase/220V | Three phase/380V | Three phase/380V | Three phase/380V | Three phase/380V |
| Rate input power capacity(KVA) | 3.5 | 4.8 | 6.7 | 8.4 | 10.2 | 16.5 | 21.3 |
| Output current range (A) | 15-30 | 15-40 | 15-50 | 20-60 | 20-60 | 20-100 | 20-120 |
| Rate output voltage(V) | 92 | 96 | 96 | 110 | 110 | 130 | 140 |
| Duty cycle(%) | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| O.C.V(V) | 230 | 230 | 230 | 236 | 240 | 260 | 260 |
| Efficiency(%) | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Power factor | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
| Weight(kg) | 9 | 9 | 15 | 18 | 21 | 36 | 36 |
| Overall dimension(mm) | 371*153*299 | 371*153*299 | 432*203*368 | 480*203*368 | 541*213*370 | 480*334*491 | 460*334*491 |
| Insulation class | F | F | F | F | F | F | F |
| Protection class | IP23 | IP23 | IP23 | IP23 | IP23 | IP23 | IP23 |
| Max Cutting Thickness | 8 | 12 | 16 | 20 | 25 | 30 | 35 |

Some more sample you can click the model picture to see the detail






Our packing is double
And we also have the tool box if you need pls contact us the ordinary package just carton package show like the first photo
Main Market:
North America, South America , Southeast Asia, Middle East, Africa
With standard spareparts: 2 Cable connectors(35-50), 1 screw driver
Supply:
1. OEM and ODMsevice offered, Machine Color
2. One Year Warranty.
3. Technical Support.
4. CE and CCC certificate
Strict Quality Control:
1.Our quality starts from the elemets. All parts are full new,refusing the used one .Our machine mainboard is made by ourself all the parts was in strictly controling .
2.Our quality controling systems are stopping the defect before packing; So we arrange at least 5 QC stations, In an assembling line ; then every tiny part in the charge of one worker ,even every screws should be marked
3.The scientific production management 6S , prevent the mistakes by human being at the upper limits
4. Our products are strictly tested 100% before delivery, and approved by CE. And our products are able to meet or exceed some of the industry's most rigid standards. We can ensure you will be satisfied with both performance and durability
Perfect after-service
1.Any defects ,you can check it firstly ,If you can find out the problems, we can send you the components to you
2.If you can`t find out the faults ,our engineer will provide the free guide on line free
3.If we can`t solve the problems by vedio ,Our engineers are possible to come to your countries
Remarks
1. You can print your logo on the products or color box
2. We can take the OEM orders
3. If you place a considerable quantity,we can give you a competitive price
4. We can match the parts for you
If you have browse this kind of welding machines,pls feel free to contact us
Shenzhen Greatec technology Co.,Ltd. is a high-tech inverter welding&cutting machine manufacturer specializing in desgin ,production and marketing .We often attend the Exhibition .
1.Q:How many days for mass producing ?
A:It take 30 days after we comfirm the order.
2.Q:Can you do OEM & ODM ?
A:Yes , welcome .We are a big factory .
3.Q:What Certificate do you have ?
A:We have CCC,CE .
4.Q:What`s your gurantee period ?
A:We offer 1-2 years warranty as per different models .
5.Q:Where is your factory located ? How can I visit there ?
A:Our factory is located in Shenzhen city ,We ofen attend the Exhibition also we can talk there .
