customize plastic top shell loud speaker plastic injection moulding

 Product information:

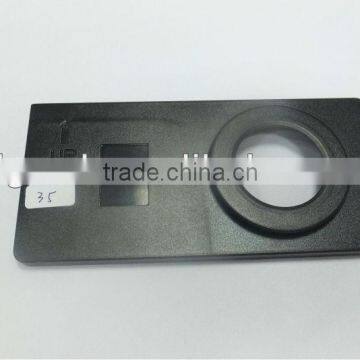

The plastic top shell loud speaker plastic injection moulding
Size:  130*60*15mm
Material: ABS
Injection mold was buit inhouse to ensure product quality

Mould information:

  1.Mould life:                      300,000 shots

  2.Cavity No:                      1*2

  3.Mould-core Materials:      NAK 80

  4.Surface Finish:                Texture

  5. Mould standard:             LKM

  6.Design sorftware:            Moldflow / UG / PROE / AutoCAD

  7.Mould shape:                  Plastic injection mould

  8.Lead time:                      25days

Plastic mould production flow chart:

1. Mould design → 2. Milling processing → 3.Grinding→ 4. CNC machining → 5.Wire -cutting → 6. EDM machining → 7. Polishing → 8. Mould assembly → 9. Mould trial run until approval

Plastic product processing flow chart:

1. Mould design → 2. Processing the mould→ 3. Mould trial run until approval → 4. Plastic injection forming →5.Painting / Printing → 6. Assembly → 7 Packing

The main processing production equipments and the business scope as follows :

1. Different size of CNC high speed cutting processing center and CNC high speed milling machining center.

2. Turning, milling, drilling holes, some high precision and more complex curved surface as customized.

3. Different kinds of wire -cutting machine and different size of EDM machine.

4.  Wire -cutting machine from Japan and Switzerland are mainly used to process template

           and mould accessories

5. Grinding (center grinding and centerless grinding )for precision inner and outer  diameter,

         grinders and deep hole drilling machine work coordinately to process the large moulds.

6. We have 30 sets plastic injection machine and 30 sets press machine

7. We have 14 years’ processing experience and can produce different kinds of plastic and hardware products, mould and mould accessories.

  Product Picture:

workshop



Milling machine



CNC Machine



Wire Cutting



Coordinate Measuring Machine
