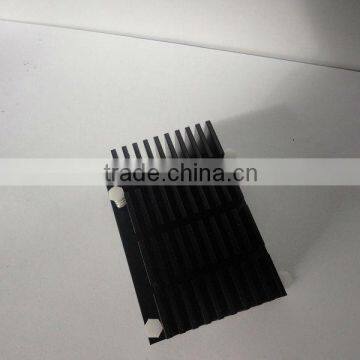

The Customized Radiator of Computer Mainboard

  Part Info:

Size:    50*30*22.5mm

Material: AL6063-T5

Surface Finishing:Anode black

There are no scratches, weld mark and oxidation on the surface.

Mould Info:

Lead Time: 30days

Mould Type: Extruded aluminum mold / single die

Mould material: SKD-9

Mould Standard: JIS

Mould Life: 500000 shots

Design Software: Mouldflow UG, PRO/E, AutoCAD

Hardware Die Processing Flow Chart:

1. Mould design → 2. Rough finish→ 3.Heat treatment→ 4. Wire cutting→ 5. CNC machining → 6. EDM machining →7. Mould assembly → 8. Mould trial run until approval

Hardware Product Processing Flow Chart:

Stamping /Die-casting---Drilling holes / Tapping----Wire-drawing / Polishing -----Surface finishing---- Printing / Packing

The main processing production equipments and the business scope as follows :

• 1. Different size of CNC high speed cutting processing center and CNC high speed milling machining center.
• 2. Turning, milling, drilling holes, some high precision and more complex curved surface as customized.
• 3. Different kinds of wire -cutting machine and different size of EDM machine.

4. Wire -cutting machine from Japan and Switzerland are mainly used to process template and mould accessories

• 5. Grinding (center grinding and centerless grinding )for precision inner and outer diameter, grinders and deep hole drilling machine work coordinately to process the large moulds.
• 6. We have 30 sets plastic injection machine and 30 sets press machine, die-casting machine.
• 7. We have 14 years’ processing experience and can produce different kinds of plastic and hardware products, mould and mould accessories.
