Home > Products > load cell&junction box&weights > Mini Load Cell

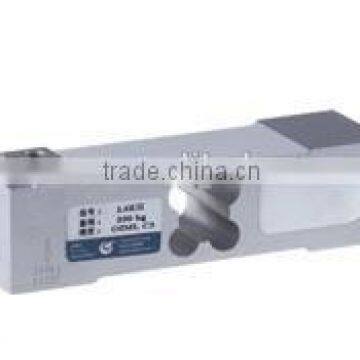

Mini Load Cell
- rongqi
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | zemic/mavin | |
| Model Number | hm8/hm9b | Type | Other, accessories | |
| Power Supply | 110/220v | Display Type | led/lcd | |
| Rated Load | 10tons | Accuracy | 10g |
Product Description
Specifications
1.Made of aluminum/alloy steel/stainless stee.2.Defend grade: IP65.
3.CE&RoHs or OIML approved.
first all,we are not the original producer,but with good reputation in the market and good relationship with the supplier,we can get it at competitive price,so,when you in need not very large amount,we are a cost-efficient choice. our weight sensor with wide range of capacities from 0.5t to 50t,OIML approved,for trade approved applications. more details shown as followings:
for one with capacity range:10-50t:
Capacity | t | 10/20/25/30/40SE/40/50 | ||||
Accuracy |
| C1 | C2 | C3 | A5M | B10M |
Approvals |
|
|
| OIML R60 C3 |
|
|
Maximum number of | n max | 1000 | 2000 | 3000 | 5000 | 10000 |
Minimum load cell | v min | Emax/3000 | Emax/5000 | Emax/7500 | E max | E max |
Combined error | (%FS) | ≤±0.050 | ≤±0.030 | ≤±0.020 | ≤±0.026 | ≤±0.050 |
Creep | (%FS/30min) | ≤±0.038 | ≤±0.024 | ≤±0.016 | ≤±0.017 | ≤±0.040 |
Temperature effect | (%FS/10°C) | ≤±0.028 | ≤±0.017 | ≤±0.011 | ≤±0.013 | ≤±0.040 |
Temperature effect | (%FS/10°C) | ≤±0.047 | ≤±0.023 | ≤±0.015 | ≤±0.014 | ≤±0.020 |
Output sensitivity | (mv/v) | 2.0±0.002 | 2.3±0.002 | 2.4±0.002 | 1.9±0.002 | 1.8±0.002 |
Input resistance | (Ω) | 700 ±7 | 775 ±5 | 750 ±7 | ||
Output resistance | (Ω) | 700 ±7 | ||||
Insulation resistance | (MΩ) | ≥ 5000(50VDC) | ||||
Zero balance | (%FS) | 1.5 | ||||
Temperature, compensated | (°C) | -10~+40 | ||||
Temperature, allowed | (°C) | -35~+65 | ||||
Excitation,Recommended | (V) | 5~12(DC) | ||||
Excitation, Max | (V) | 18(DC) | ||||
Safe overload | (%FS) | 150 | ||||
Ultimate overload | (%FS) | 300 | ||||
for one with capacity range:0.5-20t
Capacity | t | 0.5-3 | 5 | 10-15 | 20 |
Ultimate load | %FS | 150 | 150 | 150 | 150 |
Max. Horizontal | mm | 5 | 4 |
|
|
Max.Anti-ratation | KN | 3 | 10 | 30 | 50 |
Material | Alloy steel | ||||
the followings are the legal documents&our load cell in other form:
