Home > Products > load cell&junction box&weights > Waterproof Connection Box

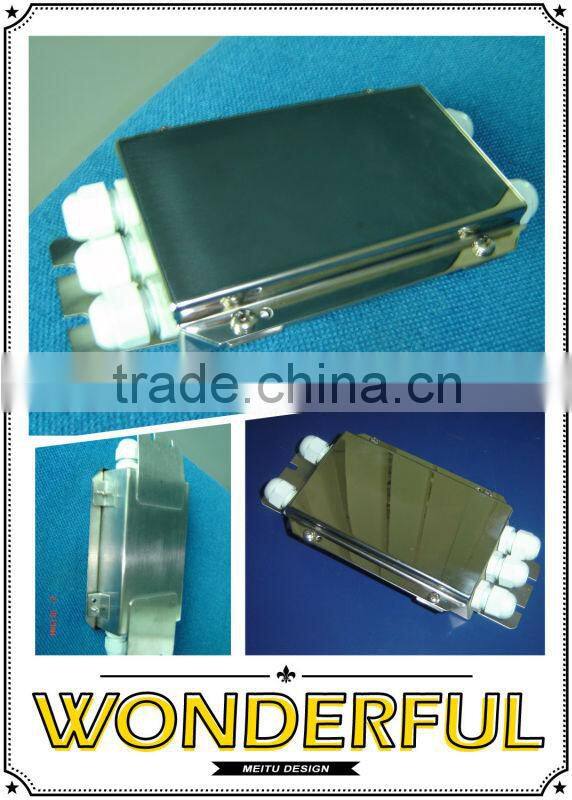

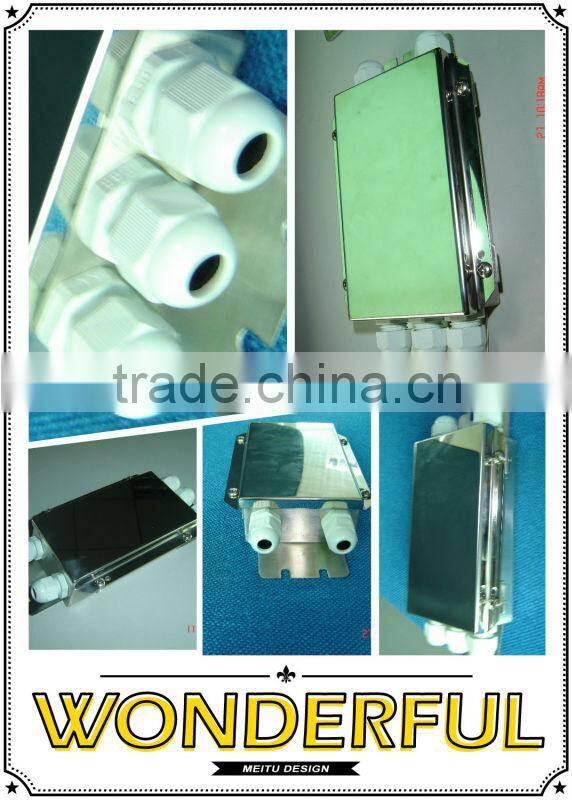

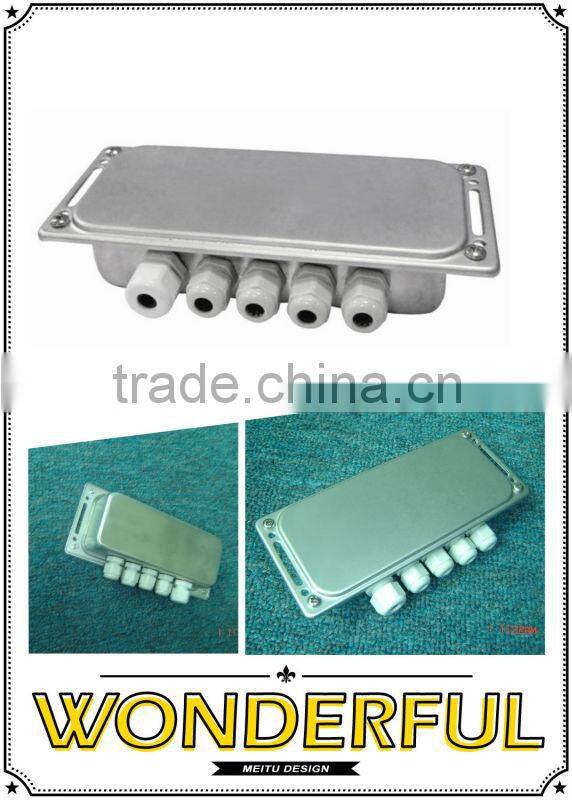

Waterproof Connection Box
- rongqi
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | topwe | |
| Model Number | jb1-4-8-12 | Type | Truck Scale | |
| Power Supply | 110/220v | Display Type | led/lcd | |
| Rated Load | 10tons | Accuracy | 10kg |
Product Description
Specifications
1.waterproof structure design with reliable housing.2.high-precision electronic components.
3.ip65 approved
weighing junction box for floor scale, platform scale, truck scale, weighing beam, movable truck scale, weighbridge, weighing
Details Description:
Able to connect with strain gauge load cell at resistance of 350-800 ohm, excitation 5~15V DC (TVS pipe Umax=18V)
- Model: jb-4; jb-6, jb-8 , jb-10, jb-12 high precision potentiometer
- Selection of stainless steel housing, aluminum housing, plastic housing
- For parallel mode, wire connection method with selection of compacting or welding
- For parallel mode, equipped with TVS pipe
- Customized for 10 wire
details parameter shown as followings:
| Service Temperature | -10°C to +40°C. |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | Max. 85%RH |
| IP Grade | IP65 |

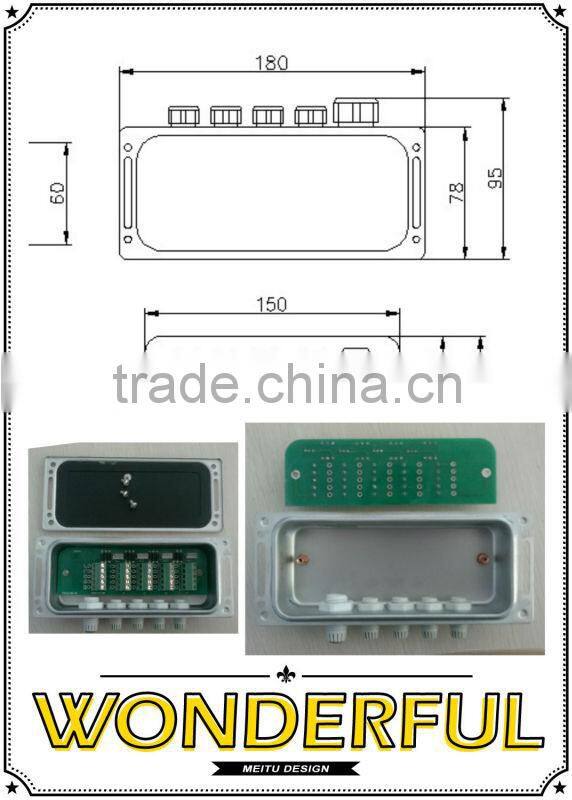

the followings are the legal documents and junction box in other form:
