120LHigh Quality Heat pipe Solar system

FOB Price

US$ 190 - 190 / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Heat pipe Solar system:
1.CE,SoIar Keymark,ISO.
2.Tube size:47*1500mm
3.Tube qty.:18.

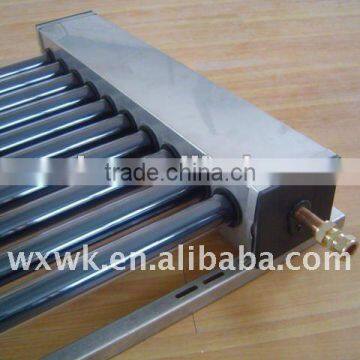

Heat pipe solar collector For split pressurized solar system or Big project.

Features:

Material:

Manifold material and thickness	aluminum alloy-2.0mm/ Stainless steel 304 2B- 0.8mm
Header pipe material and thickness	Diameter:32mm, thickness 1.0mm copper pipe
Heat pipe material and thickness	Diameter:14mm, thickness 0.5mm copper pipe
Insulation	Polyurethane foam 50mm or Rock wool
Test pressure and work pressure	Test pressure 9Bar, work pressure 6bar to 8bar
Frame material and thickness	Aluminum alloy-2.0mm/ Stainless steel-1.2mm
Collector mounting	Flat roof/slope roof
Inlet and outlet	1/2’’ OR 3/4’’
Hail resistance:	25mm
Coating of vacuum tube:	QB-AL-SS/CU-47/1500/58/1800
