Home > Products > Resdiul circuit breaker > Earth Leakage Circuit Breaker

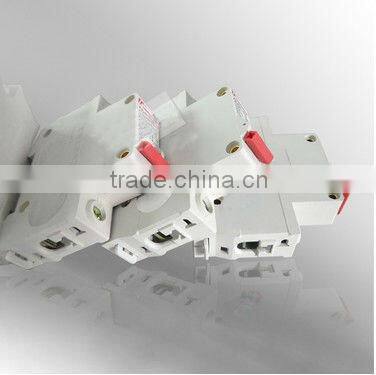

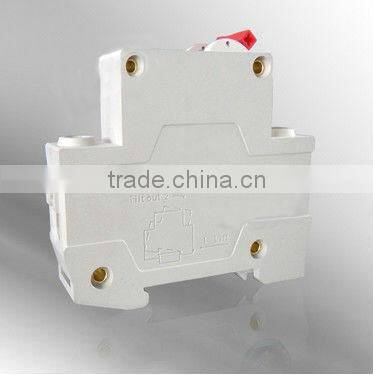

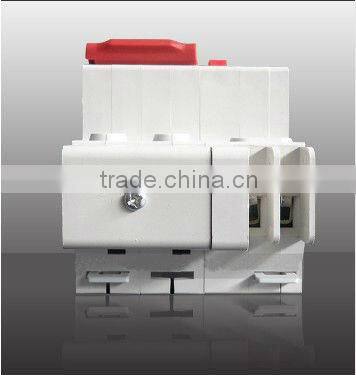

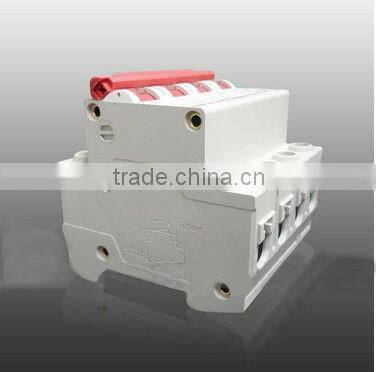

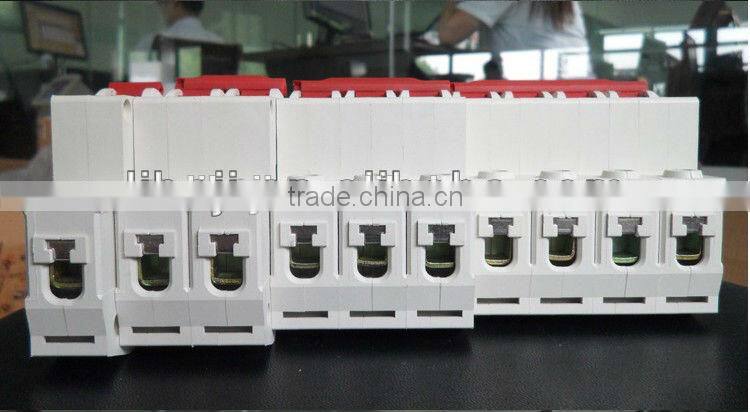

Earth Leakage Circuit Breaker
- NINGBO/SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LIBAJI mini earth leakage circuit breaker | |
| Model Number | DZ47-63 mini earth leakage circuit breaker | Type | Earth Leakage | |
| Poles Number | 4 |
Product Description
Specifications

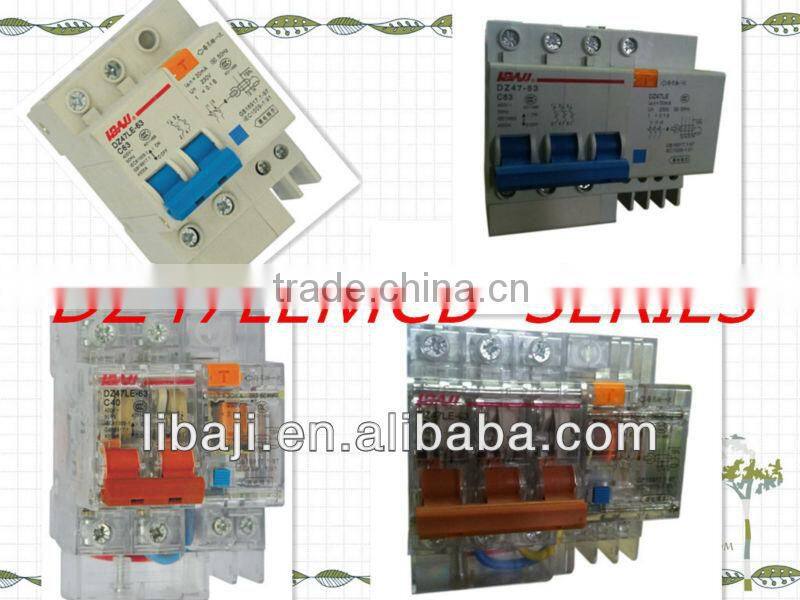

DZ47LECBOEM & ODM orders are available, welcome to contact us!
CCC & IEC certificated residual current circuit breaker.
DZ47-63
Mini circuit breaker with high breaking capacity is used in circuit of AC50Hz, rated voltage 230/400V and rated current from 1A to 63A for protection against overload and short circuit as well as for infrequent switch over of circuit under normal condition. The product is suitable for protection of household and similar installation.
DZ47-63 Miniature Circuit Breaker is nice in appearance,reasonable in structure,sound in feature and high in breaking capacity.Installed with standard din rail,it is convenient and easy in usage for protect overload and short circuit..It can be used as infrequent on-and-off operation and changeover. Complying wih standard IEC61009.
TECHNICAL DATA
1) Model Series: C45
2) Rated Current : 1A- 63A
3) Rated Voltage: AC 230V/400V, and DC voltage can be specially manufactured accordingtoclient request
4) Electrical life: no less than 6000 operations
5) Mechanical life :no less than 20000 operations
6) Breaking capacity: 2KA
7) Tripping curve: B, C, D type
8) Wire connection: 50m*m
9) Rated short working capacity: 30In.
10) Certificate:GB16917 , IEC61009
11)Embedded Installation
| Number of Poles | 1P+N, 2P+N, 3P+N, 4P+N |
| Rated Current (A) | 16, 25, 40, 63, 80, 100 |
| Rated Voltage (V) | AC 230/240, 400/415(4P) |
| Frequency | 50Hz |
| Endurance | ≥10000 |
| Protection degree | IP20 |
Over-current protection characteristics of circuit breaker
Over-current instantaneous release type | lnA rated current | A Test current | Test time | Intiap state | Environment temperature |
| C,D | <=60 | 1.13ln | >=1h no trip | Cold state | +30°C |
| C,D | <=60 | 1.45ln | <1h no trip | Hot state | |
| C,D | <=32 | 2.55ln | 1s<trip<60s | Cold state | +30°C |
| >32 | 2.55ln | 1s<trip<120s | Cold state | ||
| C | <=60 | 5.0ln | 0.1s no trip | Cold state | +30°C |
| D | 10.0ln | Cold state | |||
| C | <=60 | 10.0ln | 0.1s trip | Cold state | +30°C |
| D | <=60 | 14.0ln | 0.1s trip | Cold state | +30°C |
FAQ:
Q 1. how's the delivery time ?
A. usually it will take about 30 days for production

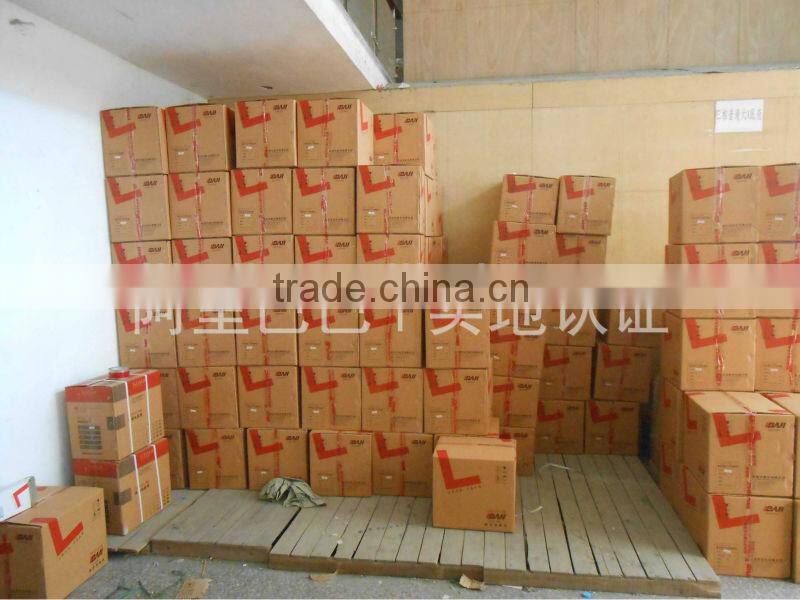

Q 2. tell me the standard of package?
A. Normally are cartons, but also can packed into bubble box.
Q 3. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q 4 .Could you offer Form A ?
A. It totally not a problem.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 6.We want to know month capacity.
A. 5000pcs/DAY
Q7 .Where is your market?
A. Our products are popular in South Africa,Iran,Pakistan,India,Dubai,Zambia and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q8. what kind of certificate you have ?
A. Our company already achieve ISO, and for products.
If you can cooperate with us, we will be honored and you will benefit from:
1. - Your client satisfied on the right schedule and quality.
2. - Your can get good reputation from your market and obtain more orders.
3. - Our professional service before and after sale.
4. - The reasonable price.
5. - Any questions from you are welcome and will be replied in 24 hours.
