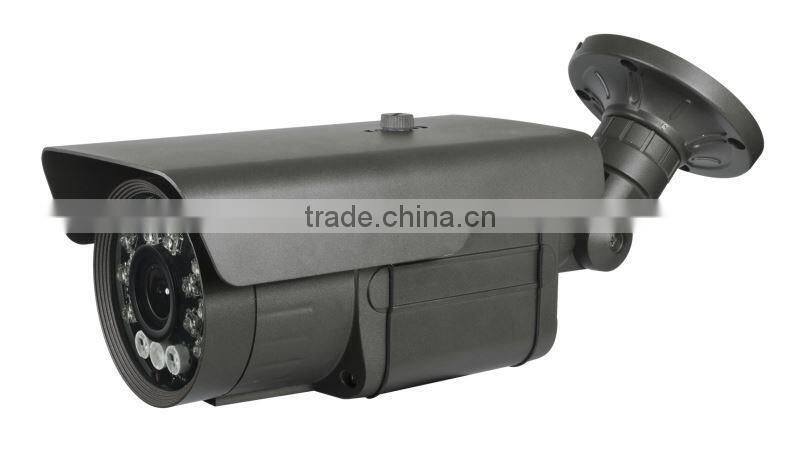

1080P Full HD Security System IP Camera for Home Security Box Camera

Model

Product Model

  TT-X2MX9VI

Product Name

1080P IP IR Weatherproof Camera


Image Size

1920*1080

Frame Rate

50HZ:25fps(1920*1080)

60HZ:30fps(1920*1080)

Image Settings

Brightness,Contrast,Saturability,Sharpness etc. are adjustable by the clientor IE browser

Compression Format

Video Compression Format

H.264 Main profile/MEPG4

Code Rate

32kbps~8Mbps adjustable

Camera

Image Sensor

1/3”Progressive Scan CMOS

Min illumination

0.1Lux@(F1.2,AGC ON),0Lux with IR

0.15Lux@(F1.6,AGC ON),0Lux with IR

IR Distance

50m

Electronic Shutter

1/25 - 1/100,000/ second

Lens

2.8-12mm Mega Pixel Lens

Mount

CS/MTV

Auto Iris

Fixed

Day/Night System

ICR

Main Functions

Recording

NVR Device and CMS Storage

Heart Function

heartbeat mechanism enables host manager computer monitors front-end

IPC in real-time

Multi-Streaming

support 3 independent Streaming: Main Stream, VGA,CIF(Mobile Surveillance)

Intelligent Alarm

motion detection, covering alarm , network connection failure , IP address

conflict

Mobile Surveillance

Support iPhone OS3.0 above,Android 2.2.above,Symbian,windows mobile

Remote Access

remote configuration, browsing , recording, playback and PTZ control can be

implemented by built-in IE Web client or CMS, DDNS

Protocol

TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPOE,SMTP,NTP,UPnP,FTP,802.1X,

Interface Protocol

ONVIF2.0

General Function

FLC , 3 stream encoding , heartbeat mechanism, mirror function, password

protection, privacy area, watermark etc.

Interface

Internet Interface

One RJ45 10M,100M Self-adaptive Ethernet port

POE

Support POE Power Supply(Optional)

Others

Working Temp./ Humidity

-10°C~60°C,/ <90%(No Condensation)

Power

DC12V±10%/POE(Optional)

Consumption

5.6W,8W MAX

Weatherproof rate

IP66
