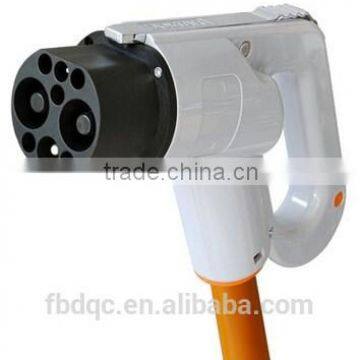

EV DC charging plug
- 150000 Piece / Pieces per Month
- ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FB | |
| Model Number | DSIEC2b-EV16P-63P DSIEC2a-EV16S-63S |
Product Description
Specifications
DC Charging Plug Used for Vechicle car or bus Rated current : 125A or 250A Operating voltage : 400/750V DC
Adapt socket type : V2 -DSD-EV 125S/250S
Used for Vechicle car.vechicle bus
1.Meet the " electric vehine conductive charging connection device " 20110530Technical standards and requirements
2. Nice shape ,Hand-held ergonomic design ,Easy to use
3. Safty design to prevent users from personal injury
4.Protectionclass : IP 55 ( IN mated condition )
5. Reliability of materials ,antiflaming , environmental protection, abrasion,resistance ,impact resistance ,oil resistance and Anti -NV
DC Charging plug Rated current : 125A or 250A Operating voltage : 400/750 V DC Withstand voltage : 3200 V
Materials :
Shell Material: Thermo plastic ( Insulator Inflamnability UL 94 V0)
Contact pin: Copper alloy .silver or nickel plating
Sealing gasket : rubber or silicon rubber
Environment Performance
Operating temperature : -30degree to 50 degree
we are a Chinese manufacturer , export kinds of EV charger , power connector ...and so , if you interested any ,pls contact us freely .Thanks .
