Hot sale automatic toothpaste packing machine

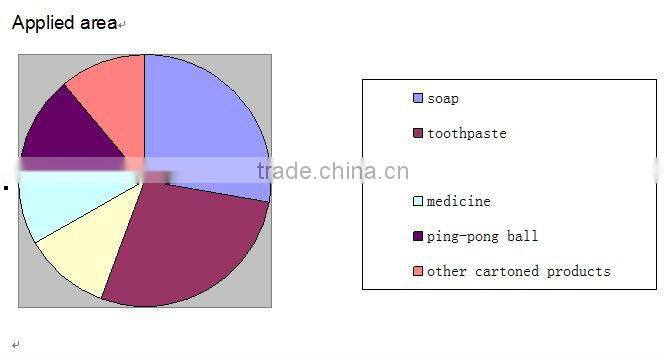

TH260 series toothpaste carton packing machine is widely used in the package field, such as pharmaceuticals, food, daily chemical and other industries. It can function independently, or can be joined to the whole packaging line.

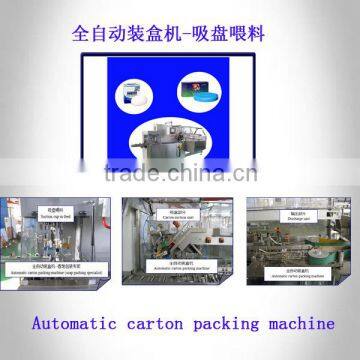

It is mainly composed of the following parts:master driving unit, product-transferring unit, metal gate unit, carton-transferring unit, carton-suction unit, product-push unit, coding unit, carton-pressing unit, glue sprayer (carton flap folding unit), discharge unit, electric control unit and pneumatic unit. Under coordinated work of the above parts, the product packing procedure is finished perfectly.

Specific operation principles are as follows:

Products flow onto the feeding-in belt from upstream machine, and were put to transferring shoes by metal gate unit.When the metal gate unit under the control of photoelectrical switch detect that the products are ready,the carton-suction rod begins to suck carton,meanwhile carton-pull rod begins to pull the carton,and then the carton-unfolding rod unfolds the carton,finally the carton is successfully put on the carton guide rail. The carton –suction device has a protection function -- no product entering, no carton suction.The product pusher unit boasts the protection function--no push when there is product but without cartons.

The filled cartons will undergo flap folding, coding, glue spraying and closing with the cooperation of workbench closing unit. Then they will be tightened by the discharge conveyor and finally transferred to the case packing platform.

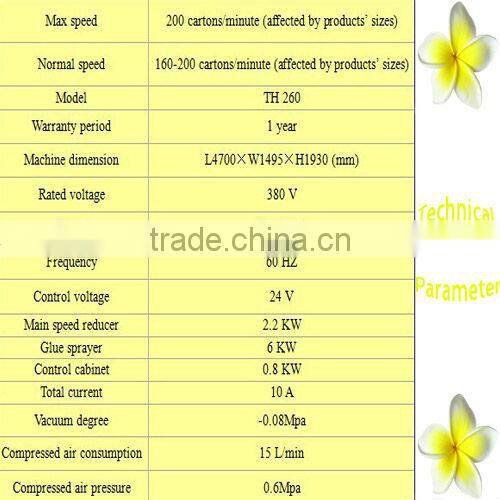

This machine’s speed is controlled by variable frequency and programmable control unit. The visible packing speed and the packing procedures are tracked by photo eyes. This machine boasts safety devices such as overloading protection, electricity leakage protection, and failure alarm.

This user-friendly machine adopts world famous control elements with touch screen in both Chinese and English.

This compact equipment operates simply and reliably,boasting fast packaging speed,stable packaging quality,as well as smooth and beautiful packaging appearance.
