manufacture stage cementing collar special high quality , can be customized!
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
All range oil-field centralizers, API standard,different models
-
All range casing centralizers, API standard, have different models
-
API All range casing centralizers, different models
-
All range casing centralizers, different models
-
double/single plug cementing head, factory price, high quality, API standard
-
manufacture float collar and float shoe with high quality
Product Details
| Place of Origin | Shandong, China | Brand Name | yuanda | |
| Type | Other, stage cementing collar | Machine Type | Other, cementing tools | |
| Certification | API | Material | Stainless Steel | |
| Processing Type | Casting | Use | Other, oil field |
Product Description

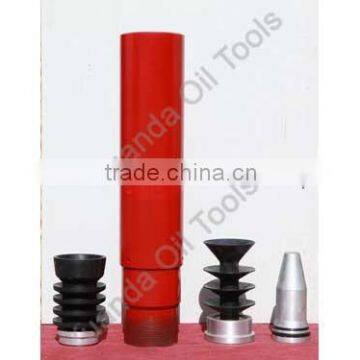

We manufacture range models, including drill-free stage cementing collar, mechanical stage cementing collars, hydraulic stage cementing collar and salvage type cementing collar, to meet different requirements of cementing work.
Technical parameters
drill-free stage cementing collar
mechanical stage cementing collars
hydraulic stage cementing collar
salvage type cementing collar
Specification | 5-½"(139.7) | 7"(177.8) |
Opening pressure, Mpa | 7 | 7 |
Opening force, KN | 68 | 136 |
Closing pressure, Mpa | 5 | 5 |
Closing force, KN | 64 | 95 |
Sealing capacity, Mpa | 25 | 25 |
Rated load, T | 120 | 170 |
Connection thread | API LTC | API BTC/LTC |
Max O.D. of body, mm | 172 | 208 |
I.D. of closing sleeve, mm | 119 | 125 |
Length of first-stage plug, mm | 390 | 420 |
Length of opening plug, mm | 232 | 260 |
Length of closing plug, mm | 262 | 280 |
Overall length, mm | 1235 | 1280 |
All our products are made of high quality material. We will provide quality products. And we have got the certificates of international quality management system, HSE system healthy and safe environment and API.
More than 100 workers in our factory, and our workshop is equipped with the advanced equipment. So we can ensure fast delivery. On payment options we support the T / T, L / C, D / P. On transportation we have taken FOB, CIF and SFR.
We have good technicians. They can assist with the choice of suitable products before committing plugging of holes. And our company may at the request of customers to send technicians and interpreter to job site.
