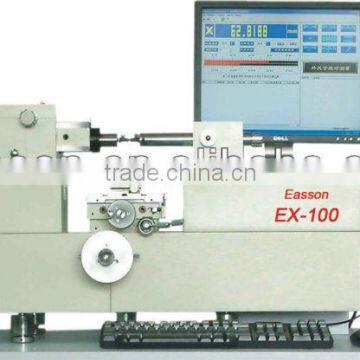

Universal Length Measuring Machine

It features in high accuracy due to adopting Abbe comparative theory and a high precision measuring system. It is mainly used in measuring office of factories and various level measuring departments in metal machining industry, specially in machine manufacturing, bearing manufacturing, gauge manufacturing as well as precision tools manufacturing and instrument manufacturing industries.

Comprising with the traditional ones, the machine adopts raster digital display technology, and it is a high technical product integrating optical, mechanical and electric (computational algorithm), improving its accuracy and work efficiency greatly. It also adds several auxiliary accessories to improve its universal applications.

Applications:

1. Shaft, hole, plug gauge, ring gauge, clip gauge, length bar, cone, cylindrical workpiece, lower-grade block gauge, workpiece with parallel planes etc.

2. Pitch diameter of internal thread, thread, thread ring gauge, thread plug gauge.

♥ Dial indicator inspection

♥ External micrometer inspection

♥ Gauge block checking

♥ Internal micrometer measurement

♥ Plug gauge measurement

♥ Plug gauge measurement / Snap gauge measurement

♥ Ring gauge measurement

♥ Small hole measurement device

♥ Thread ring gauge measurement

♥ Thread gauge measurement

Technical Parameters:

Measuring Range  (mm)

a) External Dimensions

Absolute Measuring Range  0~100

Relative Measuring Range  0~700

b) Internal Dimensions

Using small-size measuring accessories (Maximum penetrating depth 12, Maximum wall thickness 50) 10~430

Using small-size measuring accessories (Maximum penetrating depth 50, Maximum wall thickness 85) 30~400

Using Electrical Measuring Accessories

a) Electrical Measuring Accessories  1~60

b) Universal Measuring Accessories  14~112

Thread Measuring Accessories

a) Thread PitchDiameter Measuring

Max. 200mm

Pitch 0.5~6

b) Internal Thread Pitch Diameter Measuring

Using small-size measuring accessories (Small diameter 13~30)

Using large measuring accessories (Small diameter from 31~(70-wall thickness) ×2)

Pitch 1~6

Reading Mode and Display Value: Dislay Value 0.1µm

Measuring Force(N): 0, 1.5, 2.5

Display Value Variability

a) For external dimensions  2δ≤0.3µm

b) For internal dimensions  2δ≤0.5µm

Instrument Accuracy

For external dimensions, accuracy better than: 0.5µm

For internal dimensions, accuracy better than: 1µm

Universal Worktable

a) Installation area approximately    160×160mm²

b) Height adjustment range    (0~100)mm

c) Transversal stroke    25mm

d) Tilting around Y-Axis    ±3º

e) Worktable rotation    ±4º

f) Admitted Load    10kg

Fitting dimension for inner diameter of the measuring cap-shaped accessories    6ΦH7

Outer diameter for the rod fitting with the inner diameter of the measuring cap-shaped accessories    6Φg6

Instrument Size (mm):  Length*Width*Height    990*390*450
