Cheap 8 Inch Touch Screen Displays With CPU Intel Atom D2550 1.86GHz

Features:

8 inch tablet computer touch all in one, industry 3COM dual Ethernet ports, and high stability

8-inch industrial touch all in one pc, the whole lightweight, aluminum panels, precision machining, resolution 800 * 600, 7 * 24 hours of steady work, similar products but with the highest quality and cost-effective, welcomed the purchase

Aluminum structure, precision machining, machine compact and lightweight, 5mm thin panel design, suitable for embedded installation

Original 8-inch LED LCD screen, operating temperature -10   ~ 50  , with a resolution of 800 * 600

Make up the difference SSD or HDD, can be replaced with a larger capacity SSD or laptop hard drive

Detailed parameters

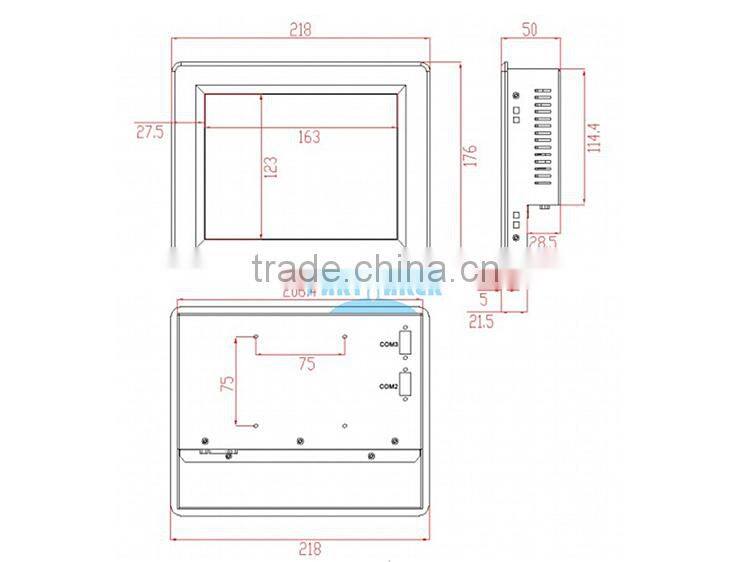

Dimensions:218mm * 176mm * 50mm

Hole Size:207mm * 165mm

Display:8-inch LED screen resolution of 800 * 600

Touch screen:Industrial 4-wire resistive screen

CPU:ATOM D2550 Dual Core 1.86G

RAM: Optional

Hard disk:Optional

NIC:1000M (Note: The default is single card, dual card version plus $20, $10 for 300M wireless)

Built-in speakers:No

Back of the interface:RS232 * 2

The lower side of the interface:DC_IN * 1, LAN * 2, USB * 4, VGA * 1, HDMI * 1, AUDIO * 2, RS232 * 1

Gross weight:1.8KG

Package Contents:All in one pc, 12V 4A power supply, power line, flush mount snap 4
Features:12V DC input Power consumption 20W, support calls boot, wake on LANMachine pre-installed WINDOWS, good stability, can be switched to work long hours

Note: This machine WINXP system graphics driver does not support 3D hardware acceleration, you can not run 3D applications, if there is need, you must use WIN7 system.

1. Using Intel® ATOM D2550 1.86G dual-core low-power processor

2. High quality 800 * 600 resolution with 8 Inch LED screen, resistive touch screen with high sensitivity, high accuracy, click long life.

3. All-aluminum construction, durable, anti-vibration, shock, small fine

4. Standard VESA screw holes, you can choose to install a flexible form

Specifications

Size 8 inch display

LED industrial displaysResolution of 800 × 600Brightness 200cd / m2Contrast Ratio 500: 15ms response time

Physical characteristics of the machine Dimensions 218 mm (length) × 176 mm (width) × 50 mm (H)Hole size 207 mm (length) × 165 mm (W)

Material sheet metal / aluminum alloy

Weight 1.1KG /1.8KG (Net / Gross)

Color Black

Touch the touch screen feature high-quality 4-wire resistive touch screen

Click to life> 200 million times

Performance Configuration C P U ATOM D2550 Dual Core 1.86G

Graphics card INTEL GMA3600

Support system Windows XP, Windows 7, LINUX

I / O interfaces U S B 4 x USB 2.0A serial RS232 interface (on the back of increase two RS232)(Adjustable for the RS485 / RS422)Ethernet port: 2 INTEL dual 1000M wired LAN

Optional 2W speaker audio

Display VGA * 1, HDMI * 1

Environmental testing IP protection class IP65 default

Operating temperature -10   ~ 60   surface air flowStorage temperature -20   ~ 70  Humidity 10% ~ 95% @ 40   non-condensing

Packing list:All in one PC 1Power Adapter 1Power line 1Flush mounting clips 4
