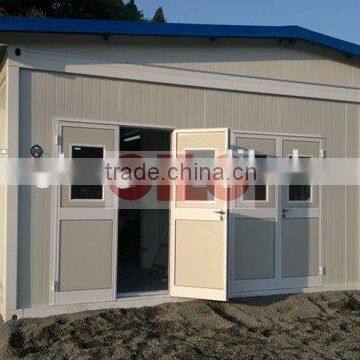

High quality prtable container house, prefab house

FOB Price

US$ 2,000 - 4,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	CILC
Model Number	YT-032	Material	Sandwich Panel
Use	Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant

Product Description

BASE:

frame-construction: 3mm steel profile,cold rolled, 4welded corner castings with dimensions according with ISO norms.

floor: 18mm plywood , water resistant(V100), free of formaldehyde(E1),1.5mm synthetic floor covering, welded seams, water soluble adhesive, environment friendly

floor base: 0.6mm galvanized sheet metal. Load bearing capacity : 2.8kN/ m²_{working load.}

_{Isulation: 90mm polystyrene(density 38-40kg/ m}³flash point class A-not flammable, smoke density class Q1-low smoke emission in accordance with NORM B3800).

K-value: 0.2W/m²k

ROOF:

frame-construction: 3mm steel profile,cold rolled, 4welded corner castings with dimensions according with ISO norms, wooden perlins.

load capacity: 2,000N/m²

roof covering/interior: 0.4mm galvanized painting steel both side and polystyrene foaming 60mm in the middle, color White inside and blue outside, white is availibe.

insulation: 6mm polystyrene(density 38-40kg/ m^3.To aviod cold bridges.

K-value: 0.18W/m²k

CORNER POSTS

Profile: cold rolled 4.0mm steel profile

Fitting: the four corner posts are fitted with the base frame and the roof frame with a screwing.

Insulation: To avoid cold bridges, the corner posts are insulated with 20mm polystyrene(density 38-40kg/ m³

WALL PANELS

exterior cladding: profiled galvanized sheet metal, PVC overlaid, 0.5mm.

Interior cladding: profiled galvanized sheet metal, PVC overlaid, o.4mm.

Insulation: 60mm polystyrene(density 38-40kg/ m³

Loading bearing capacity: 0.6Kn/m²

PAINTING/COATING

All steel profile will be hot dipped galvanized(45μm)

Epoxy zinc primer: min40 microns

Polystyrene coating: min50 microns

Total coating: D.F.T: Min 90 microns

WINDOWS

Dimensions: 885*1200 mm

The windows are build with PVC materials and fitted with guard against left net. They are equipped with a blinding system, and a insect net.

EXTERIOR DOORS

Aluminium-oor with blind, door opening width 900/2000 mm.

ELECTRICAL INSTALLATION:

Protection: protective current switch(40/4E-0.03A), automatic fuses(B-characteristics) of suitable power(10A,16A)

Earthing: 1 galvanised strip iron earth electrode(2.5*4mm) with fastening. It is the responsibility of the buyer/lessee to arrange for the Earthing installation on site.

Equipment:

support two 220V fluorescent fixed in the ceiling

support one low noise 220V fan fixed in the wall 2

there have a open hole and frame for assembly the air-condition in the future.

other quipment will fix by the owner according his requirement such as switch, socket, networkware socket, phone socket, and all the line will be connected by the owner. There have the pipe for easy go through it for all the line.

SITING AND ERECTION

Any individual container should always be mounted on either wooden or concrete foundation bearers(6bearers). The same applies to the combining of several CILC Module-Containers in a cluster where units must be positioned over concrete bearers or concrete slabs. Foundation parameters and frost depths would be subject to local demands and soil conditions. Level foundations are necessary for problem-free positioning and friction-free erection of any combintion. For assembling please read the appropriate mounting instructions.

POSSIBILITIES OF CONTAINER MOUNTING

On a flat solid surface

On point foundations(concrete cubes, dimensions 30/30/30cm, 6pcs/20GP)

On band of foundations(concrete band, 30cm wide, on the container circumfereende).
