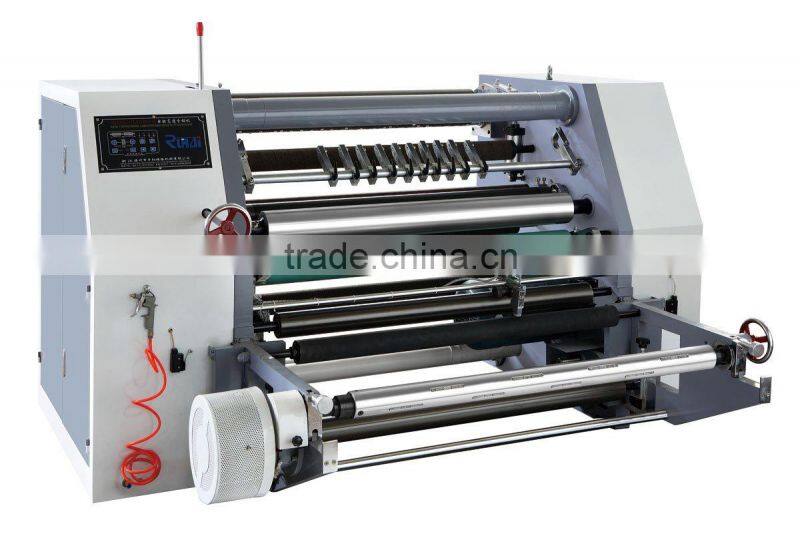

WZFQ-C Model Fabric Slitter

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port ANY PORT IN CHINA
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Slitting Rewinder	Computerized	Other
Place of Origin	Zhejiang, China	Brand Name	RUIHAI
Model Number	WZFQ-C

Product Description

Specifications

fabric slitter machine
slit big roll to small roll--high precision with high speed

Performance and Characteristics

fabric slitter machine is used for slitting and rewinding various large rolling materials such as paper,(20g/-300g/)cellophane paper,bill paper,double-face adhesive tape,PVC,weave material,nowoven of cloth,etc.Adopt A and B pneumatic shaft structure for rewinding.It adopts photoelectric automatic error correction adjustment system for unwind-ing,anomalistic materials will be easy slit.(or liquid press style subtense system)Equipped with automatic waste film blowing device.(vertical knife structure)Manual material loading for unwinding(or pneumatic automatic material loading)with taper cover style pneumatic shaft.(3,6)

Main Technical Parameters of fabric slitter machine

Model	WZFQ- 1100C	WZFQ- 1300C	WZFQ- 1600C
Max.width of unwinding	1100mm	1300mm	1600mm
Max.diameter of unwinding	Φ1400mm	Φ1400mm	Φ1400mm
Min.width of slitting	20mm	20mm	20mm
Max.diameter of rewinding	Φ500mm	Φ500mm	Φ500mm
Speed	10-120m/min	10-120m/min	10-120m/min
Precision of slitting	±0.2mm	±0.2mm	±0.2mm
Total Power	7kw	7kw	8.5kw
Suitable power supply	380V/50Hz	380V/50Hz	380V/50Hz
Weight(approx)	2100kg	2300kg	2600kg
Overall dimension(LxWxH)	2850x2150x1350(mm)	2850x2350x1350(mm)	2850x2650x1350(mm)

Design and specifications are subject to change without notice.

More details and if need vedios of machine running please do not hesitate to contact with us
