RFA original for export single oil filter

Specifications

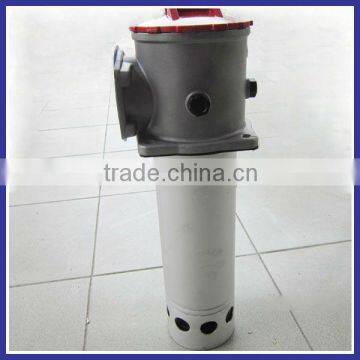

RFA Single oil filter

Material: Glass fiber paper, chemical fiber paper, stainless steel etc

installation site:The filter can be installed directly on the tank cover can also be installed pipe connection .

Effect:RF series return filter is used for hydraulic system return fine filtration to filter out the hydraulic system components wear metal particles and rubber impurities and contaminants such as seals , so that the oil back into the tank to keep clean .

working principle:1.The filter does not filter pollution block the sender and by-pass valve , to improve the reliability of hydraulic exchange .                                                                             RFA Single oil filter

2. when the filter to be pollutants clogging or system liquid temperature is too low , the flow pulsation factors into the oil pressure is 0.35 Mpa , transducer will signal the instructions , it is timely to replace the filter or to raise the temperature , so can not be handled immediately , in the filter bypass valve will open automatically to protect the system .

Feature:. The filter cartridge of the filter use chemical fiber filter material , with high micron rating , big ability through oil , small pressure loss , large quantity of pollutants , etc .

Application: The filter is widely used in the hydraulic and lubrication system or heavy duty machine , mining machine , metallurgical machine and so on .
