water filter system industrial water filters
- Qingdao Tianjin Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | D.King | |
| Model Number | industrial water filters |
Product Description
Specifications
water filter system industrial water filters:a)High quality;
b)ISO9001:2008;
c)Long service term;
d)Manufacturer

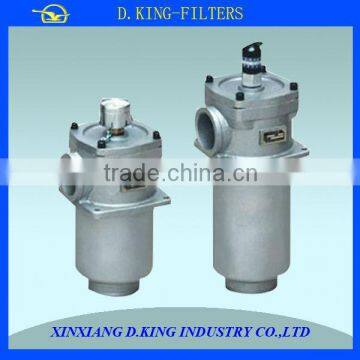

water filter system industrial water filters
Material: Glass fiber paper, chemical fiber paper, stainless steel etc
installation site:The filter can be installed directly on the tank cover can also be installed pipe connection .
water filter system industrial water filters
Effect:RF series return filter is used for hydraulic system return fine filtration to filter out the hydraulic system components wear metal particles and rubber impurities and contaminants such as seals , so that the oil back into the tank to keep clean .
water filter system industrial water filters
working principle:1.The filter does not filter pollution block the sender and by-pass valve , to improve the reliability of hydraulic exchange .
2. when the filter to be pollutants clogging or system liquid temperature is too low , the flow pulsation factors into the oil pressure is 0.35 Mpa , transducer will signal the instructions , it is timely to replace the filter or to raise the temperature , so can not be handled immediately , in the filter bypass valve will open automatically to protect the system .
water filter system industrial water filters
Feature: The filter cartridge of the filter use chemical fiber filter material , with high micron rating , big ability through oil , small pressure loss , large quantity of pollutants , etc .
Application: The filter is widely used in the hydraulic and lubrication system or heavy duty machine , mining machine , metallurgical machine and so on .
water filter system industrial water filters
Model | DN (mm) | Flow (L/min) | Filtr. (um) | Press (Mpa) | ΔP(Mpa) | Model of element | |
Initial | Max | ||||||
YLQ-BL65×* | 65 | 400 |
20 25 30 40 80 120 |
1.6 |
≤0.1 |
0.35 | BLLX-171×265-* |
YLQ-BL80×* | 80 | 600 | BLLX-171×464-* | ||||
YLQ-BL100×* | 100 | 1000 | BLLX-231×464-* | ||||
YLQ-BL125×* | 125 | 2500 | BLLX-355×464-* | ||||
YLQ-BL150×* | 150 | 2500 | BLLX-355×464-* | ||||
YLQ-BL200×* | 200 | 4000 | BLLX-355×760-* | ||||
Model | DN | Flow | Filtr. | Press | ΔP (Mpa) | Model of element | Number | |
Initial | Max | |||||||
YLQ-R100×* | 100 | 1300 | 1 | 1.6 | ≤0.2 | 0.35 | 1300R*BN/HC | 1 |
YLQ-R125×* | 125 | 2600 | 2 | |||||
YLQ-R150×* | 150 | 2600 | 2 | |||||
YLQ-R200×* | 200 | 3900 | 3 | |||||
YLQ-R250×* | 250 | 6500 | 5 | |||||
YLQ-R250×* | 250 | 7800 | 6 | |||||
YLQ-R250×* | 250 | 9100 | 7 | |||||
water filter system industrial water filters
water filter system industrial water filters
