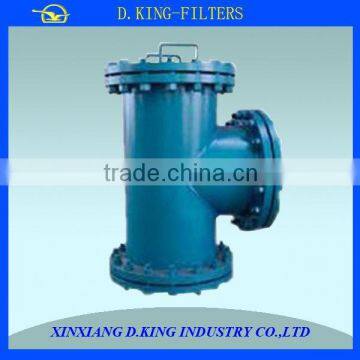

cast iron make acid resistant T filter

cast iron make acid resistant T filter

Material:stainless steel, carbon filter

cast iron make acid resistant T filter

effect:T type filter is belong to pipeline rude filter series . Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end . Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use . T type filter is a kind of indispensable filtering device which is transport medium pipeline system

feature:easy made , advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination.

cast iron make acid resistant T filter

Technical parameters

1. Housing material : carbon steel , stainless steel
2. Nominal diameter : DN40-DN400 mm
3. Filter screen material : stainless steel
4. Sealing material : NBR, pllytef (according to working medium )
5. Working temperature : no more than 90 centigrade
6. Connection type : flange
7. Normal pressure : 1.6MPa
8. Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)

cast iron make acid resistant T filter

Application:

1. Weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon .
2. Chemical production of corrosive materials .eg : caustic soda , soda ash , dense and dilute sulphuric acid , carbonic acid , acetic acid , ester acid .
3. Low temperature materials in the refrigeration . eg : liquid methane, liquid ammonia , liquid oxygen and all kinds of refrigerating fluid .
4. Light food , pharmaceutical production , health requirements of the material . eg : beer , drink , dairy products , medicine appliance.

cast iron make acid resistant T filter

Model and size

cast iron make acid resistant T filter

About us

Xinxiang D.King Industry Co., Ltd., established in 1987, is a large-scale enterprise which specializes in manufacturing and selling various filters and filter cartridges.
Our products include hydraulic filters, air filters, pipe filters and all kinds of filter cartridges. Since the establishment, our company has developed very fast.

If you are interested in this product , pls sent the following questions to us , we will calculate the best to you with the specifications :

1. size : OD , height
2. material
3. micron rating
4. quantity

...
