Home > Products > Oil Filter Element > easy cleaning spring 37 micron candle type filter cartridge

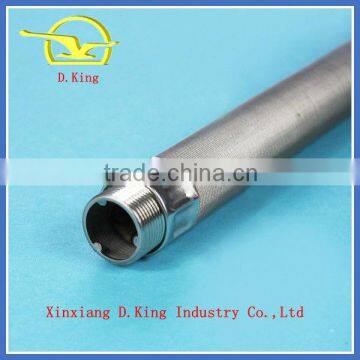

easy cleaning spring 37 micron candle type filter cartridge
- qingdao shanghai and other China's port
- T/T
You May Like
-
efficient stainless steel 37 micron filter candle cartridge
-
universal high quality ss hydraulic 37 micron filter candle
-
boll stainless steel candle filter for sintered mesh
-
export to russia sintered wire mesh candle oil cartridge for vessel
-
multi boll sintered wire mesh candle filter screen for vessel
-
machine industry ss pleated candle filter for sintered mesh
Product Details
| Place of Origin | Henan, China | Brand Name | D.King | |
| Model Number | BYLX | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
easy cleaning spring 37 micron candle type filter cartridge1.back wash
2.small resistance
3.changeable
4.ISO9001:2008
easy cleaning spring 37 micron candle type filter cartridge
Application |
Use scope | mainly used to metallurgy , chemical industry , machinofacture , papermaking , spinning , food medicine , livelihood , environmental protection etc. which involved oil , water filter industry |
Raw oil , fuel oil , diesel oil , kerosene , gasoline ,etc . filtering | |
Lubricating oil , hydraulic oil ,machine oil , gear oil etc. filtering | |
Raw water , sewage , plain water , reclaimed etc. clear filtering. |
easy cleaning spring 37 micron candle type filter cartridge
Feature |
Feature | |
Pressure | Less than 1.6MPa |
Flow rate | 20-60L/min |
Working medium | Hydraulic oil and lubricating oil |
Loss pressure | Less than 0.1MPa |
Filter material | Stainless steel |
Size | φ30*223~φ30*745 |
Using life | Long , can be clean and use again |
Temperature | Big range |
Accept dirt | Strong ability |
Area and flow | Big |
Advantages | Easy install , use economy |
easy cleaning spring 37 micron candle type filter cartridge
Product detail |
Structure and material | |
Part name | material |
End and bottom caps | plastic , stainless steel |
Inner tube | Stainless steel |
Filter medium | Stainless steel mesh |
Name | Model | Connection type | Flow capacity (L/min) | Micron rating (um) | Nominal pressure(MPa) | Pressure loss(MPa) | Size (mm) | ||
Initial | Max | D | L | ||||||
Candle filter element | BYLX-30×223 | M26×1.5 | 20 | 20 25 30 40 80 | 1.0 | No more than 0.1 | 0.35 | 30 | 223 |
BYLX-30×400 | 35 | 30 | 400 | ||||||
BYLX-30×440 | 40 | 30 | 440 | ||||||
BYLX-30×723 | 60 | 30 | 723 | ||||||
BYLX-30×245 | φ26 | 20 | 30 | 245 | |||||
Product detail |
stainless steel connector
plastic connector
spring connection type
thread connection type
pastic housing & ss filter mesh
easy cleaning spring 37 micron candle type filter cartridge
About us |
Xinxiang D.King Industry Co., LTD was founded in 1987. It is a filter professional manufacturer. We are implementing TS16949 system. Each of our products is made strictly according to ISO/TS16949 certificate. We are eager to work together with all our customers based on mutual benefits towards greater prospects. Our company is an ISO9001:2008 certified enterprise for filter and filter equipment
If you are interested in this product , pls sent the following questions to us , we will calculate the best to you with the specifications :
1. size : diameter , length
2. micron rating
3. quantity
