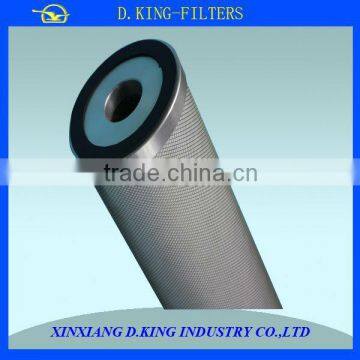

D.KING suction filter for hydraulic system
- 100 Piece / Pieces per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Efficiency | 99% | |
| Construction | Bag Filter | Filtration Grade | Hepa Filter | |
| Medium Material | Active Carbon | Porosity | LOW | |
| Place of Origin | Henan, China | Brand Name | D.KING | |
| Model Number | HYDAC | Dimension(L*W*H) | 20*30*90 | |
| Weight | 1-2KG | Certification | SO 9001-2008 approved | |
| Warranty | SO 9001-2008 approved | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
High flow oil filter cartridge manufacturer1.ISO 9001-2008 approved
2.service up to 4000-6000h
3.efficiency:99.99%
High flow oil filter cartridge manufacturer
Introduction
function
Hydraulic pressure oil return filter element install oil-put of oil pump in common. use to protect oil pump avoid to suction major mechanical admixture.filtering prill what component abrade created in hydraulic pressure and sealing element rubber impurity etc pollutant , make oil what reflow to tank keep clean .
characteristics
structure strict reasonable , big ability pass oil , small reset pressure loss , big quantity accept dirt .etc.
Structure
end and bottom caps ,material : aluminum , stainless steel
inner tube, material: galvanized sheet , stainless steel tube
filter medium, material :stainless steel mesh and filter paper
High flow oil filter cartridge manufacturer
High flow oil filter cartridge manufacturer
Model
Model | DN(mm) | Flow capacity(L/min) | Micron rating(um) | Nominal pressure(MPa) | Pressure loss(MPa) | Mating assembly model | |
Initial | Max | ||||||
FAX-25 | 15 | 25 | 1 3 5 10 20 30 | 1.6 | No more than 0.075 | 0.35 | RFA-25 |
FAX-40 | 20 | 40 | RFA-40 | ||||
FAX-63 | 25 | 63 | RFA-63 | ||||
FAX-100 | 32 | 100 | RFA-100 | ||||
FAX-160 | 40 | 160 | RFA-160 | ||||
FAX-250 | 50 | 250 | RFA-250 | ||||
FAX-400 | 65 | 400 | RFA-400 | ||||
FAX-630 | 90 | 630 | RFA-630 | ||||
FAX-800 | 90 | 800 | RFA-800 | ||||
FAX-1000 | 90 | 1000 | RFA-1000 | ||||
Model | Through diameter(mm) | Nominal flow rate(L/min) | Filter precision(um) | Nominal pressure(MPa) | Pressure loss(MPa) | Mating assembly model | |
Initial | Max | ||||||
FBX-25 | 55 | 25 | 1 3 5 10 20 30 | 1.6 | No more than 0.075 | 0.35 | RFB-25 |
FBX-40 | 40 | RFB-40 | |||||
FBX-63 | 63 | RFB-63 | |||||
FBX-100 | 100 | RFB-100 | |||||
FBX-160 | 160 | RFB-160 | |||||
FBX-250 | 80 | 250 | RFB-250 | ||||
FBX-400 | 400 | RFB-400 | |||||
FBX-630 | 630 | RFB-630 | |||||
FBX-800 | 800 | RFB-800 | |||||
FBX-1000 | 1000 | RFB-1000 | |||||
FBX-1300 | 1300 | RFB-1300 | |||||
Model | Latus rectum(mm) | Nominal flow rate(L/min) | Filter precision(um) | Nominal pressure(MPa) | Pressure loss | Mating assemibly model | |
Initial | Max | ||||||
TZX2-10 | 10 | 10 | 1 3 5 10 20 30 | 1.6 | 0.05 | 0.35 | Z/QU-A10 |
TZX2-25 | 15 | 25 | Z/QU-A25 | ||||
TZX2-40 | 20 | 40 | Z/QU-A40 | ||||
TZX2-63 | 25 | 63 | 0.07 | Z/QU-A63 | |||
TZX2-100 | 32 | 100 | Z/QU-A100 | ||||
TZX2-160 | 40 | 160 | 0.12 | Z/QU-A160 | |||
TZX2-250 | 50 | 250 | Z/QU-A250 | ||||
TZX2-400 | 65 | 400 | 0.15 | Z/QU-A400 | |||
TZX2-630 | 80 | 630 | Z/QU-A630 | ||||
TZX2-800 | 90 | 800 | 0.17 | Z/QU-A800 | |||
TZX2-1000 | 100 | 1000 | Z/QU-A1000 | ||||
