heavy duty filter lubrication system

1. heavy duty filter lubrication system
2. quality control system: ISO9001-2008
3. completely interchangeable with original element
4. wide range of types are available
5. the high intensity
6. long service life
7. corrosion resistance
8. temperature range
9. big filter area, big flow, porosity, permeability,
10. high carrying capacity,
11. installation ,removal and clean easily
12. any size
13. sample is available
14. energy efficient filters
15. efficiency: 99.99%
16. high integrity design to save your space
17. OEM product is welcomed

Continuous lubrication filter

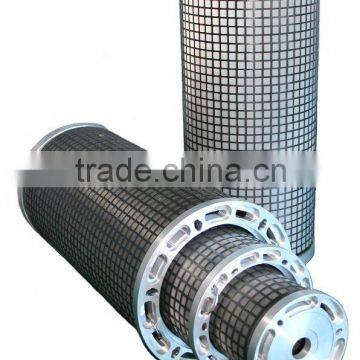

1. heavy duty filter lubrication system Introductions:Mainly used for type filter, oil filter, and three, four or five layer filter layer parallel, layered filtering, increase the number of times the filtering area. With metal wire network filter medium, pressure loss with small resistance, high strength, can be repeated cleaning features, use bolt connection, installation and removal, clean easily.

2. Main features:

   1.   the high intensity, long service life, corrosion resistance, temperature range, without material from

   2.   big filter area, big flow, porosity, permeability, high carrying capacity, with strong sex (can be repeated cleaning)

   3.   with size, L series (type filter) filtering area for Y series (cylindrical) filtering area of 3-4 times, prolong the cartridge replacement cycles

   4.   installation ,removal and clean easily

3. Use scope: Applicable in metallurgical, petrochemical, machinery manufacturing, paper making, textile, food, medicine, life, and environmental protection, water treatment, involving oil industries:

   Crude oil, fuel oil, petrol, kerosene, diesel oil filter, etc

   The hydraulic oil, lubricating oil, oil, gear oil filter .etc

   Raw water, sewage , plain water ,reclaimed water filtration .etc

86-0373-3391119

XIAOZHUZHUANG INDUSTRIAL ZONE ,HEPING ROAD NORTH,XINXIANG CITY HENAN CHINA

heavy duty filter lubrication system

heavy duty filter lubrication system

   Xinxiang D. King industry Co., LTD, formerly of aviation industry 2 groups subordinate enterprise achieving economic entity, was founded in 1987, filters, filter professional manufacturers. Set product development, design, production and experiment, through ISO9001:2000 international quality management system certification. Strong technical force, advanced processing equipment, using three-dimensional auxiliary design system for the product design and optimization, ensure products in the shortest time, to provide customers with the best quality products.

   Our company mainly produces various series of filters and filter element , while engaged in import and export work. The localization of filter Product covers petrochemical, chemical, electric power, metallurgy, textile, environmental protection, machinery, such as water, life, oil, melt, coating, pulp, paint filtration purification industries.

   Quality first, customers, is our aim. We are willing to cooperate with domestic and overseas clients, to provide you with the best quality products and the best service!

Filter element name

Model

DN (mm)

Flow capacity(L/min)

Micron rating(um)

Nominal pressure(MPa)

Pressure loss (MPa)

Initial

Max

Multiple

BLLX-171×464-

65

400

20

25

30

40

80

120

1.6

No more than 0.1

0.35

BLLX-171×760-

80

600

Three unite

BLLX-171×265

65

400

BLLX-171×464

80

600

BLLX-231×464-

100

1000

Four unite

BLLX-420×760-

150

4000

Five unite

BLLX-355×464-

150

2500

BLLX-355×760-

200

4000
