CDFS Industrial Disc Water Filters for Water Treatment Plant
- Shanghai
- T/T Credit Card
You May Like
-
Factory Auto Backflush 100 Micron Disc Filters as Prefilter of Industrial ro Plant
-
Manufacturer Auto Backflush Disc Filters for Pretreatment of ro Water Purifier Membrane
-
Hot Sale Industrial Auto Backwash Disc Water Filter
-
100 Micron 300m3/h Disc Filter Automatic Backwash Water Filter
-
100 Micron Plastic Automatic Disc Filters as Pretreatment of Sea Water Desalination
-
200 Micron Plastic Pipeline Disc Filters as Pretreatment of ro Seawater Desalination Plant
Product Details
| Place of Origin | Hunan, China | Brand Name | CDFS | |
| Model Number | DLLF-3 | After-sales Service Provided | No overseas service provided |
Product Description

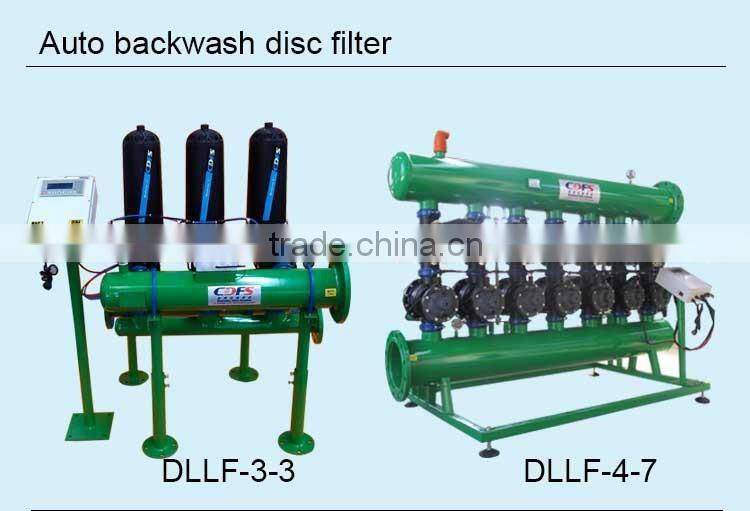

CDFS industrial disc water filters for water treatment plant
Product General

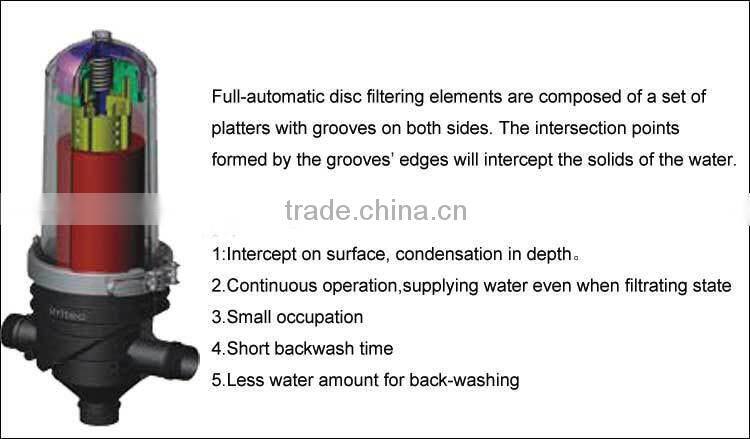

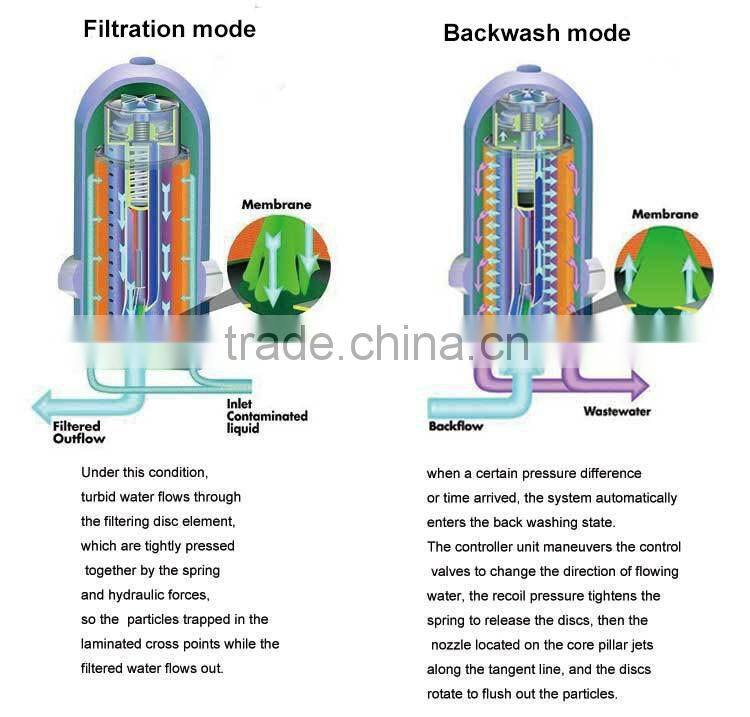

Principle descriptions (The video of principle)
Technical parameters
| Model | DLLF-3-6 |
| Design pressure | 0.6Mpa |
| Backwash pressure | 0.18Mpa(min) |
| Flow(max) | 746m3/h(according to raw quality and filtration precision) |
| Filtration units | 6 |
| Size of filtration units | 3" |
| Filtration range | 100 micron |
| Power supply | 240 v / 50 Hz , AC24V |
| Control modes | Pressure difference/time/manual/PLC |
| Pipe material | Carbon steel(304 stainless steel/316L/plastic are also available) |
| Filtration units material | Nylon |

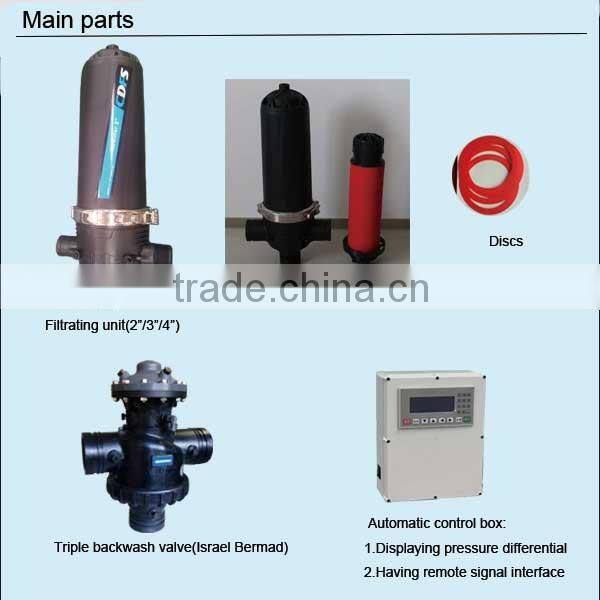

| Main accessories | Pipeline;filtration units;differential pressure transducer ;triple backwash valve;air release valve;control box etc. |
Product model selecting
When you are choosing automatic backwash water filters, please consider the following parameters:
1. Flow capacity( Pipe diameter)
2. Filtration range
3. Shell material
4. Pipeline pressure
5. Chemical properties of the filter medium
6. Suspended solids(SS) concentration of filter medium
Filtration range selecting
| Main application | Filtration precision(micron) |
| Pretreatment of good quality | 20 |
| Pretreatment of drinking water; production process;protecting nozzle | 50
|
| Circulating water; | 100
|
| Agricultural irrigation | 130 |
| Wastewater treatment; reclaimed water treatment | 200 |

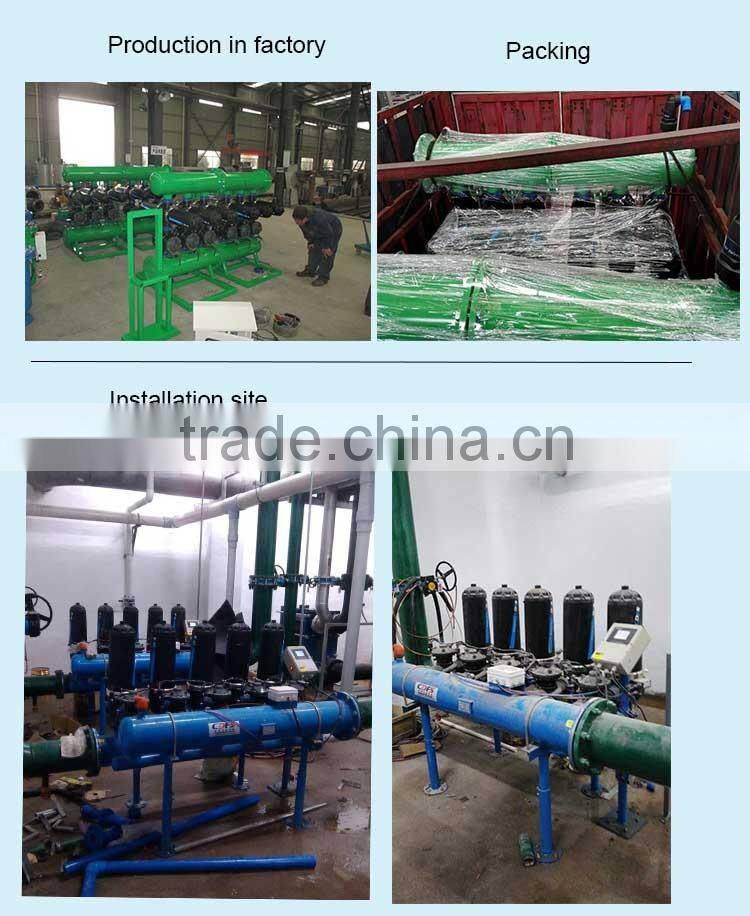

Picture show
1.Dawning Environmental Protection Technology Co., LTD.is a emerging technology company specialized in environmental water treatment. Our factory covers an area of 13000 square which is domestic largest water filter production base.
2. The main products have self-cleaning filter,disc filter,sand filter etc.
3. We have a few professional engineers with over ten years experience in water filtration technology.
4. Our products have been widely used in circulating water,Ro pretreatment,agriculture irrigation,wastewater treatment and so on.



Grape Liu
**********************
Skype: grape.dawning
Email: grape.liu-dawning(at)
Tel: 0086-151-1133-9453
What's your doubt? or know more about Dawning, please send me inquiry ↓
Contact Us
- Changsha Dawning Environmental Protection Technology Co., Ltd.
- Contact nameHoward Jiang Chat Now
- Phone86-0731-84391122
- AddressNO.123 ,Shaoshan South Road ,Yuhua District,Changsha City, Changsha, Hunan
