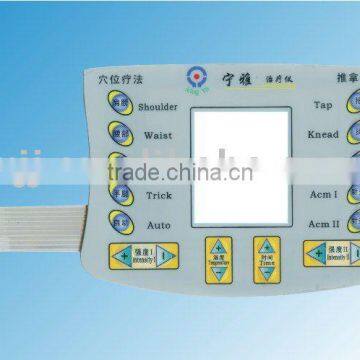

Graphic Overlay ,Membrane Switch Panel
- 50000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM/ODM | |
| Model Number | JYJ-2313 | Application | Home Appliance | |
| Keypad Button Material | Other, PET |
Product Description
Specifications
1) Customization accepted2) Poly /metal dome are available
3) Membrane panel
4) Good tactility
5) 3M adhesive
Our membrane switches/panels are widely used in :
- Medical Equipment
- Telecommunications apparatus
- Telephone systems
- Household appliances
- Security systems
- Point of sale apparatus
- Industrial controls
- Access control systems.....
Maximum circuit rating: 35v DC, 100 milliamps, 1 watt
Contact Resistance: 10-500W (depending on trace
length and material used)
Insulation Resistance: 100 MW at 100 v
Dielectric Withstand: 250v RMS (50- 60 Hz 1 minute)
Contact Bounce: <5.1 ms
Life Expectancy: Flat type >Five million closures
Tactile type > One million closures
MECHANICAL:
Actuation Force: Flat type = 57 - 284 g
Tactile type = 170 -397 g
Switch Travel: Flat type = 0.1 to 0.5 mm
Tactile type = 0.6 to 1.5 mm
ENVIRONMENTAL:
Operating temperature: -401C to +801 C
Storage temperature: -401 C to +851 C
Humidity: 401 C, 90% - 95% for 240 hours
Vibration: 20 Gs max. (10-200 Hz,
MIL-STD-202, Condition B)
