PC label button thickness 0.5mm /1mm /0.8mm /2mm





Specifications

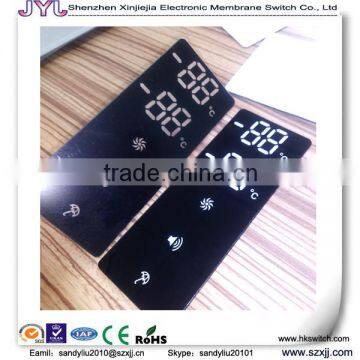

  electronic membrane switch keypad



1,Material:polycarbonate-PC

      1000000PCS/month
2. Button:  Flat

3.Viscose: 3 m adhesive

4.excellent quality
5.  Appearance of the beautiful

passed ISO9001,ROHS,

    Technical parameters

         Basic Parameter for the  Membrane Switch /Membrane keypad /membrane keyboard

         Membrane switch is Compositive switch made of insulating material layers and conductive layers. It be   comes  the  first choice for the electric control switch for its unique Superiority. Good appearance, small volum, long life-span  and Bend resistance make the membrane switch popularly accepted. Also, it has strong resistances against the water, fire, oil and scratch. Hereby, the basic parameters of it is presented as follows:

Technical Datas

1 Electrical Performance

(1) Operating Voltage: ≤50VD

(2) Operating Current: ≤100mA

(3) Contact Resistance: 0.5~10Ω

(4) Insulation Resistance: ≥100MΩ(100VDC)

(5) Base Material Withstand: 2kDVC

(6) Contact bounce: ≤6ms

(7) Loop Resistance: 50Ω,150Ω,350Ω or as per clients’ requirement

2 Mechanical Properties

(1) Life expectancy: >1 million times

(2) Switch stroke: 0.1-0.4mm(Flat type)

0.4-1.0mm(Tactile type)

(3) Actuation force: 15~750g

(4) Flex Tail Pitch(Standard): 2.54 /2.50 /1.27/ 1.25mm

3 Environment Specification

(1) Operation Temperature: -20°C~+70°C

(2) Storage temperature: -40°C~+85°C

(3) Humidity: 40 C, 90%-95%, 240 hours

4 Printing Indicator

(1) Size Deviation: ±0.15mm

(2) Side Boundary: ≤0.1mm

One-stop shopping! Standard and custom-made membrane keypads
 XINJIEJIA offers a wide range of standard keypads designed for XINJIEJIA enclosures.When requested, custom-made versions can be supplied at low cost and fast. In addition XINJIEJIA offers the machining of enclosures and mounting of membrane keypads. Keypad face membranes can be designed to your specifications.
Features :
We use exclusively high-quality materials in our membrane keypads, ensuring longevity even in harsh industrial environments.

An overview of our off

You are looking for a membrane keypad with an individual and sophisticated design?

 Our keypads are manufactured to meet our customers` exact requirements – whether in terms of size, design or colour, matt, semi-gloss or glossy, with or without a window, with a tactile action point, including LEDs or other components, integrated in supporting plates or pre-mounted on our enclosures.

And of course, assembly of the membrane keypad is part of our service offer.







  Commonly used controller for membrane switch

  General controller of 2.54 mm and 1.0 mm FPC controller, of course, part of the customer can choose FCI controller or molex controller, Of course, we production depends on the customer's choice

Membrane keypads using conductive silver technology

Of course, we also offer membrane keypads which make use of conductive silver technology. In most cases, our customers like this technology when financial aspects are the main factor. The membrane keypads are manufactured entirely using silk screen printing, so it is easy to create individual designs. It is possible to integrate components with membrane keypads which use conductive silver technology. However, the results are not so sturdy, and are more likely to experience silver migration than when integrated in other keypad technologies. When compared to a membrane keypad with copper-laminated base membranes, membrane keypads which use conductive silver technology can more quickly reach their technical limits when there are applications with many keys (and/or LEDs) on a small area. This is why we always give preference to the use of copper technology.
