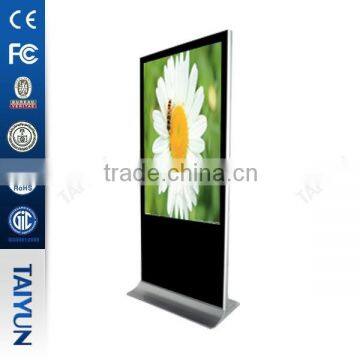

55" Digital IR Interactive Multimedia All In One Touch Screen

Panel Specification:

lcd kiosk:

55" Digital IR Interactive Multimedia All In One Touch Screen

Screen aspect ratio:

16:9

Maximum resolution:

1920*1080 HD

Display color:

16.7M

Pixel Pitch(mm):

0.630(H)×0.630mm(V)

Brightness (nits):

450nits

Contrast:

3500:1

Visual angle:

178°/178°

Response:

6ms

Touch screen:

IR multi-points touch Standing Advertising Kiosk

PC Specification:

PC

Main board:

H61

CPU:

Intel® Core™ i3-370M Processor 2.40 GHz, 3MB Cache CPU

RAM:

DDR3, 4GB

HDD:

500G

Graphics:

CPU integrated

Wifi model:

Yes

Wired network:

built-in pc

LED panel:

Original factory Grade A new panel

Panel life:

above 50,000hrs

Operating System:

Windows 7, Windows 8, Windows XP etc.

Remrk : i5, i7 series and other configurations are also available .

Touch panel:

Style:

Interactive IR Touch Standing Advertising Kiosk

Resolution:

4096x4096 touch all in one kiosk stand

Material:

tempered glass & aluminium

Luminousness:

97% -99%

Precision:

<2mm

Touch lifetime:

double touch 50 million

Touch material :

finger, touch pen,rubber,etc

Pressurization :

3800m

Chemical resistant :

mostly chemical material

Physical Specification:

Surface:

anti-scratched tempered glass

Color:

Black/White/customized colors

Fan:

2X12V fans

Audio/Speakers:

2*10 CM,12W,2500 revolutions per minute

Ports/Slots:

Power input | Power switch | PC switch | USB | LAN

Cables:

Standard international power cableor according to your requirement

Power supply:

AC 110–240, 50-60Hz

Operating temperature:

0°C ~ +40°C

Storage temperature:

-20°C ~ +60°C

Humidity:

0% ~ 80%

Other Kiosk Components:

all are optional, please inform us if needed.

Camera:

Logitech

Wired network:

3G/GPRS modem, Bluetooth, GPS receiver

Printers:

58mm,80mm, ticket printers

Input:

Keyboards, Touch pads, Trackballs

Card Devices:

Magnetic / IC / RFID devices, Multi-card reader

Payment Devices:

Debit / Credit Card Payment devices, Bill & Coin devices

Scanners:

Barcode & document scanners

Authentication:

Biometric devices & signature pads
