Home > Products > Drill pipe > E75 ,G105, S135 NC50 api drill pipe

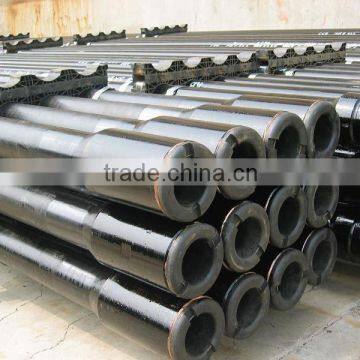

E75 ,G105, S135 NC50 api drill pipe

FOB Price

USD $1,000 - $2,000 / Ton

5 Tons(Min.Order)

Supply Ability 600 Ton / Tons per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	SHUNCHANG
Type	Drill Pipe	Machine Type	Drilling Equipment
Certification	API	Material	Carbon Steel
Processing Type	Forging	Use	Well Drilling

Product Description

Specifications

we are a specialized manufacturer of drill pipe, oil casing and tubes in China.

Specifications

1)OD:2 3/8'--5 1/2'
2)Grade:E75,X95,G105,S135
3)Upset:IU,EU,IEU
4)Hardbanding:TK34,TK34P
5)Coating:ARNCO100XT,300XT

We are equipped with facilities of top quality in the world, such as hydraulic upset forging machine, walking beam quenching furnace,, hot and cold straighten device, friction welding machine, middle frequency heat treatment, numerical control lathe and compete set of ultrasonic inspection and magnetic particle inspection. The whole process includes hot upset forging, heat treatment, hot straightening, could straightening, ultrasonic inspection on pipe body and pipe end, magnetic particle inspection, friction welding, seam inspection. We strictly carry out API spec Q1 quality control system and API Spec 5DP production standard. We have a complete set of inspection process, inspection for raw material, magnetic particle inspection to pipe end, ultrasonic inspection on pipe body, inspection on weld seam linearity testing and visual inspection

1) Certificate: API 5DP-0002,API Q1-0964, ISO 9001,ISO 14001,OHSAS 18001

2) OD:2 3/8” TO 5 1/2” of label 1 or 60.32mm to 139.7mm

3) Wall thickness:6.45 to 12.7mm

4) Grade:E75,X95,G105,S135

5) Length:R1:6.1-7.01mm, R2:8.84-9.75mm, R3:12.19-13.72mm

Specification		Normal	Account Weight		Grade	Thickness		upset of the end
in	mm	Weight(lb/ft)	lb/ft	kg/m	Grade	in.	mm	upset of the end
2 3/8	60.3	6.65	6.26	9.32	E,X,G,S	0.28	7.11	EU
2 7/8	73	10.4	9.72	14.48	E,X,G,S	0.362	9.19	EU,IU
3 1/2	88.9	9.5	8.81	13.12	E	0.254	6.45	EU,IU
3 1/2	88.9	13.3	12.31	19.34	E,X,G,S	0.368	9.35	EU,IU
3 1/2	88.9	15.5	14.63	21.79	E	0.449	11.4	EU,IU
3 1/2	88.9	15.5	14.63	21.79	X,G,S	0.449	11.4	EU,IEU
4	101.6	14	12.93	19.26	E,X,G,S	0.33	8.38	EU,IU
4 1/2	114.3	13.75	12.24	18.23	E	0.271	6.88	EU,IU
4 1/2	114.3	16.6	14.98	22.31	E,X,G,S	0.337	8.56	EU,IEU
4 1/2	114.3	20	18.69	27.84	E,X,G,S	0.43	10.92	EU,IEU
5	127	16.25	14.87	22.15	X,G,S	0.296	7.52	IU
5	127	19.5	17.93	26.71	E	0.362	9.19	IEU
5	127	19.5	17.93	26.71	X,G,S	0.362	9.19	EU.IEU
5	127	25.6	24.03	35.79	E	0.5	12.7	IEU
5	127	25.6	24.03	35.79	X,G,S	0.5	12.7	EU.IEU
5 1/2	139.7	21.9	19.81	29.51	E,X,G,S	0.361	9.17	IEU
5 1/2	139.7	24.7	22.54	33.57	E,X,G,S	0.415	10.54	IEU
