Clothing Acoustic/fiberglass Acoustic Wall Panel

Specifications

1. The Brief Introduction of Fabric Acoustic Panel

Fabric acoustic panel is a decoration material, using flame retardant resin border placed fireproof Class A specially designed

non-combustible sound-absorbing cotton, made of outsourcing fireproof treatment flame-retardant B1 level acoustic fabric or

leather, which is characterized by available for a variety of colors and patterns to choose from, the finishes cloth material can

be adjusted according to the requirements of the acoustic renovation or investors; fabric acoustic panels sound absorption

spectrum is high, which have fairly good results for low, medium and high frequency noises, and good fire-proof, no dust

pollution, strong decorative and simple to use.

  Acoustic Panel Soundproof Acoustic Fabric Board standard sizes are 1200mm x 600mm and 600mm x 600mm. And the size can be customized.

The standard thickness is 25mm. Can be made to be 15mm/50mm thickness.

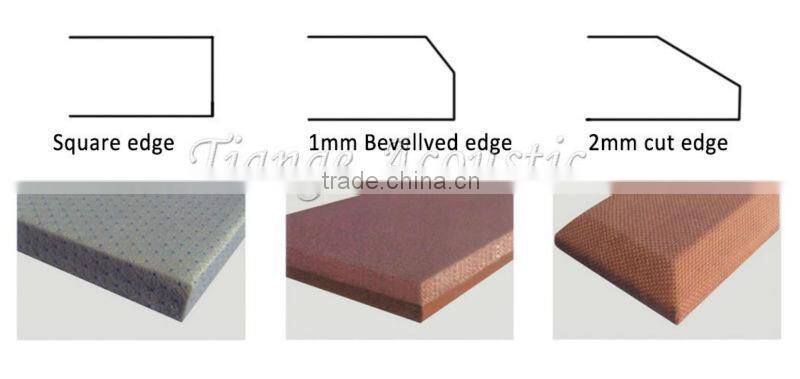

  2. Edge cutting

  3. There are five series of fabric acoustic material available now, with different textures,touched with colors. Here are part of our color chart for your choice.

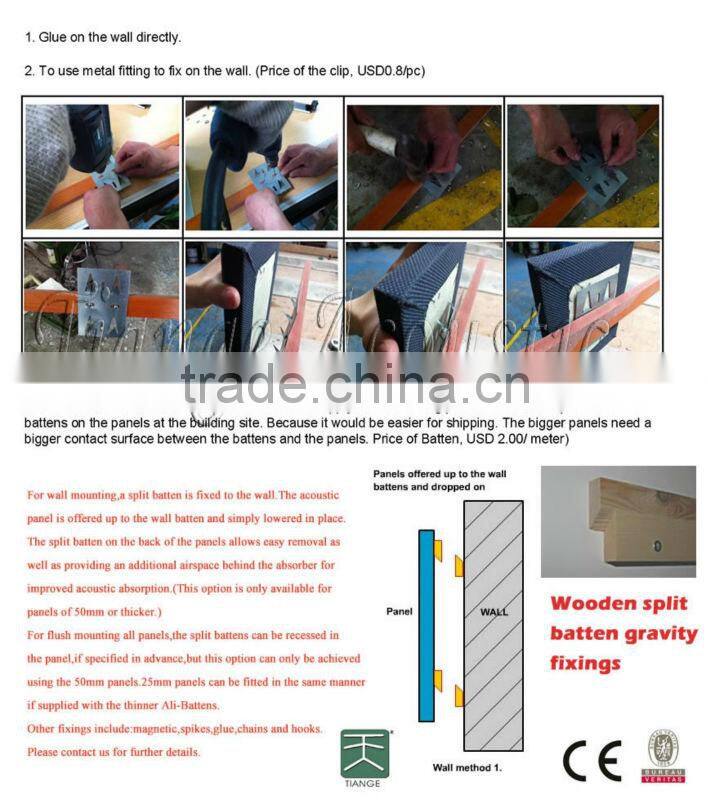

4.  Acoustic Panel Soundproof Acoustic Fabric Board installation method.

     Glue onto the wall directly.

     keel installation: glue sound-absorbing soft pack with the wall, the dragon skeleton and other soft     pack need to install sound-absorbing objects bonded together, hit the side of the soft pack around the upper body nailing.

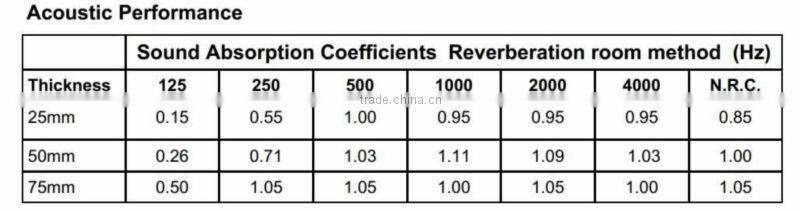

5. Sound absorption coefficient  and acoustic performance of Acoustic Panel Soundproof Acoustic Fabric Board .

Reverberation time is the primary descriptor of an acoustic environment. A space with a long reverberation time is referred to as a "live" environment.

When sound dies out quickly within a space it is referred to as being an acoustically "dead" environment. An optimum reverberation time depends

highly on the use of the space. For example, speech is best understood within a "dead" environment. Music can be enhanced within a "live" environment

as the notes blend together. Different styles of music will also require different reverberation times.

Reverberation time is affected by the size of the space and the amount of reflective or absorptive surfaces within the space. A space with highly

absorptive surfaces will absorb the sound and stop it from reflecting back into the space. This would yield a space with a short reverberation time.

Reflective surfaces will reflect sound and will increase the reverberation time within a space. In general, larger spaces have longer reverberation times

than smaller spaces. Therefore, a large space will require more absorption to achieve the same reverberation time as a smaller space.

6. Thanks to its excellent physical property, fabric acoustic material panel has no risk of falling and hurting people.

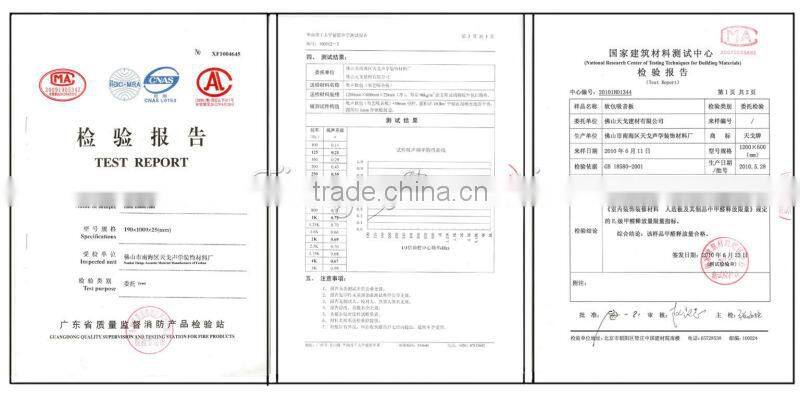

Tested by National Research Center of Testing Techniques for Building Materials, the acoustic fabric board's formaldehyde

release quantity is 0.1 and complies with the E1 grade requirements of GB18580-2001 standard.

 CE, ISO9001-2008, Alibaba supplier assessment report.

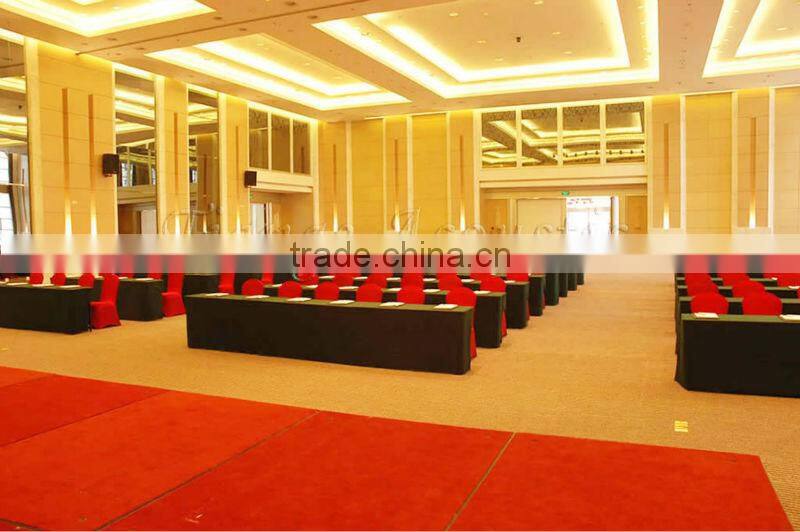

7. Applications of Acoustic Panel Soundproof Acoustic Fabric Board .

   Clothing fabric acoustic material is widely used as wall or ceiling at offices, schools, meeting rooms, music rooms, hotels, auditoriums,

    recording studios, broadcasting studios and wherever good speech privacy or speech intelligibility is important.

 8.  Foshan Tiange Acoustic And Decor Material Manufacturer produce many kinds of acoustic products and acoustic movalbe partitions.

located in the Capital city of Building Materials - Nanhai District, Foshan City. Our factory covers an area of more than 10000 square meters

and has passed ISO9001:2008 International Quality Certificate, CE and BV approval. Including many professional test report: National

fire-rated test report, environmental protection test report, sound absorption test report, etc., more than 30 kinds products involved in total.

We have a whole set of automatically computer controlled machines and professional technical workers to ensure our product high quality.

Our output of acoustic products is more than 400000 square meters per year and our output of movable partition systems is more than 40000

square meters per year. More than 35% of our products are exported to clients from all over the world. Welcome to visit our factory to build

a  long terms cooperation relationship.

9. Production line, packaging, delivery and ocean shipping.

...
