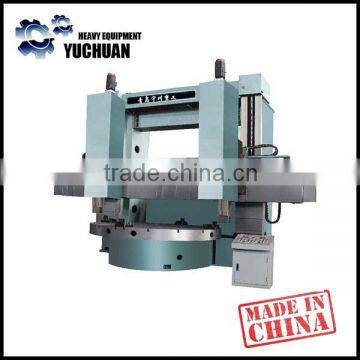

High efficiency double turret CNC turning cutting lathe/CNC machine tool/CNC lathe machine

Detailed introduction:

1. This series of machines have the conventional type and CNC type. The conventional type is represented as “C52_” the NC_ type represented as “CK52_”.It is suitable for finely and roughly machining of the internal and external cylindrical surface, inside and outside taper,surfacing,grooving of the ferrous metals, nonferrous metals and some non-metallic materials with high-speed steel, carbide cutting tools.

2. The main transmission of the vertical lathe is performed by vector inverter system; a continuously variable speed range can be obtained by 2 speed-shifting mechanisms.

3. The workable spindle is centered by high-precision double-row short cylindrical roller bearing of which the radial clearance is adjustable, the workable is equipped with constant current hydrostatic guideway,it is thereby able to achieve a high rotary accuracy, large loading and small heat deformation.

4. The rail head adopts square ram configuring hydrostatic balance tank, horizontal rapid moving side carriage is performed by constant current static technology. Horizontal and vertical feed is driven by AC servo system. The variable speed is realized through connecting the planetary reducer to precision ball screw.

5. The basic parts of the machine tools are all casted, processed and assembled in house. The casting material is highly quality cast iron HT250 which has clear removed the casting stress thoroughly by annealing process and vibratory process. All the guide ways of the bed and column and beam have been supers

onic frequency quenched.

6. The machine is equipped with moving working table, the beam and the column under it are shielded with steel.

7. Digital control, digital display and electrical main shaft vertical grinding head cold be equipped ccording to the request of customers.

Parameters of C52 double column vertical lathe  series:

Detail Picture:

 Our workroom:

Company information:

FAQ:
1.Shall we get the samples?
Yes,our company will offer the samples for you to check,especially for new customer

2.Shall we place a small trial order first time?
Yes,we can accept it.

3.What's your payment term?
T/T is available,and 30% deposit is necessary.

4.How to order?
Order by email:send your email to us,and we will reply to you as soon as possible.
Order by tel:our company line at +86-532-82583368 during 8:00a.m. to 5:00p.m Beijing standard time from Monday to Friday.
Order on line:using our on-line fuction 24hours per day to send your inquiry information as bellow:
