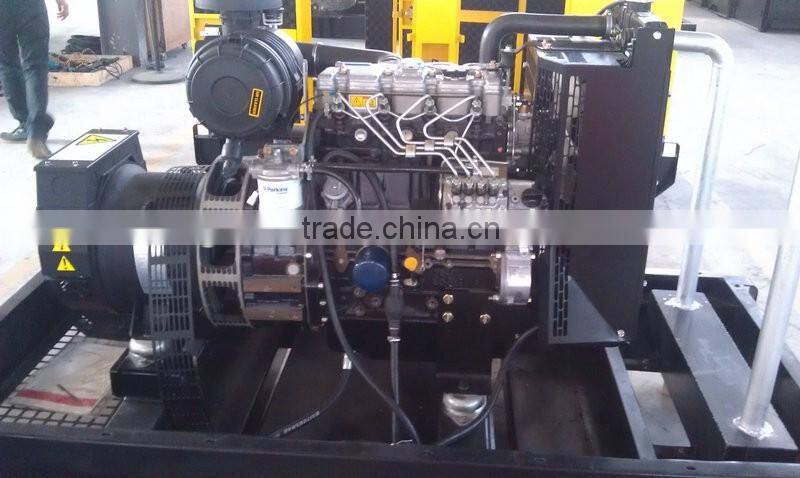

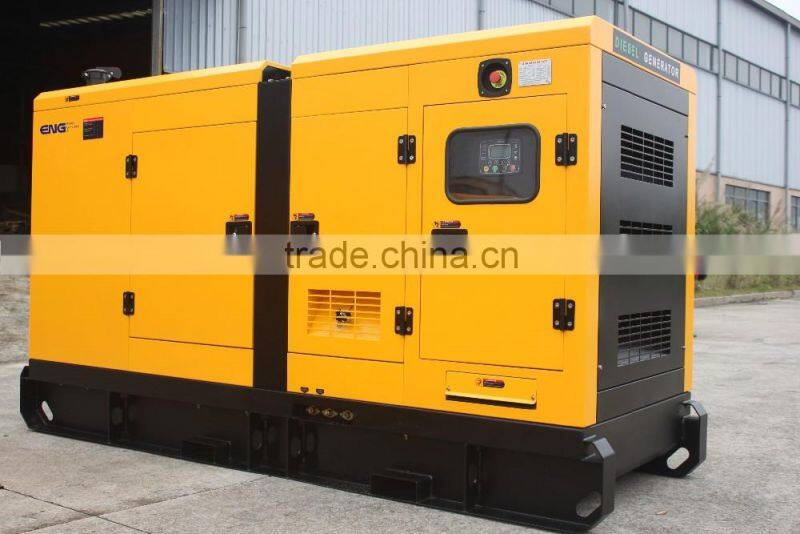

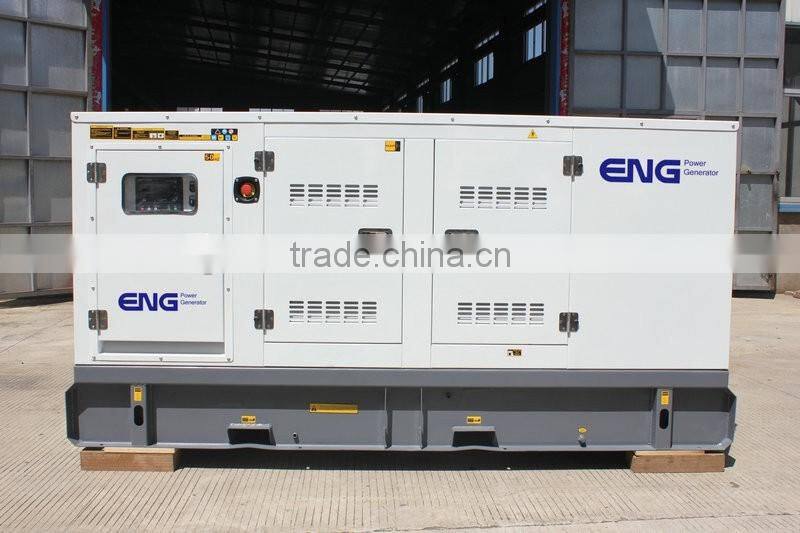

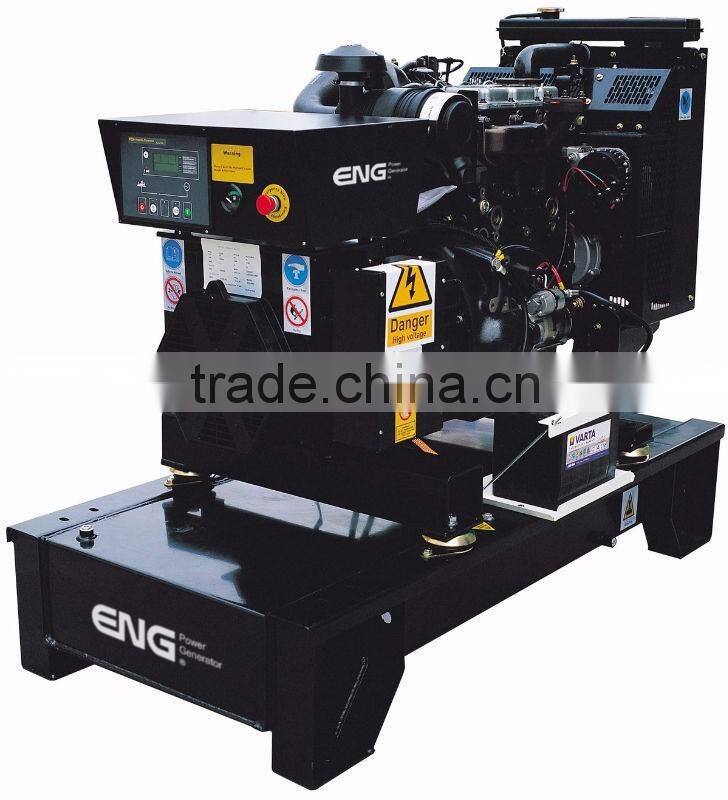

Open /silent Type 20kva Diesel Generator With Competitive Price

Genset  specification

Genset Model

ENSP20S-3

Prime Power(50HZ)

16KW /20KVA

Standby Power(50HZ)

18KW /22KVA

Frequency/Speed

50Hz/1500rpm

Standard Voltage

230V/400V

Voltage Available

220V/380V

Phases

Three phases, four wires

Engine Specification General Performance

Manufacturer:

UK Perkins Engine Co. Ltd.

Engine Model:

404A-22G1

Engine Type:

4 stroke, Vertical in-line, 4-cylinder

Engine Speed:

1500 r.p.m

Prime Power:

18kw /25HP

Lubrication oil:

CH4/15W-40

Lubrication oil Capacity :

10.6L

Governor Type:

Mechanical

Displacement:

2.2L

Cylinder Bore * Stroke:

84mm × 100mm

Compression Ratio:

23.3:1

Coolant Capacity

7 Liters

Alternator data

Engine Model:

Stamford  PI144D

Phase

3 Phase

Power Factor

0.8

Drip Proof

IP 23

Insulation class

H

Voltage regulation

± 0,5 %

Altitude

≤ 1000 m

Over speed

2250 min -1

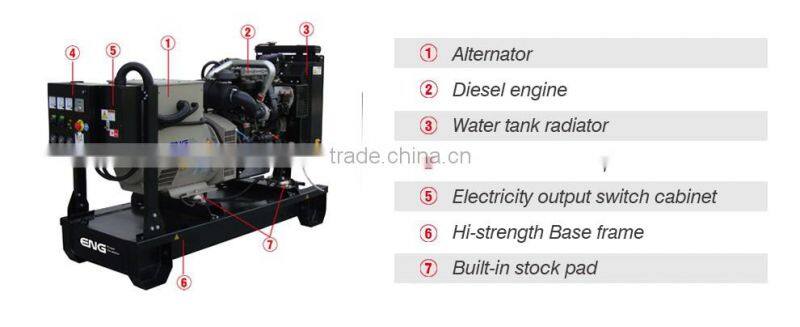

Genset Standard Configuration

♦ Assembled by Perkins diesel engine and world famous brand alternator
♦ Radiator and fan with safety guard

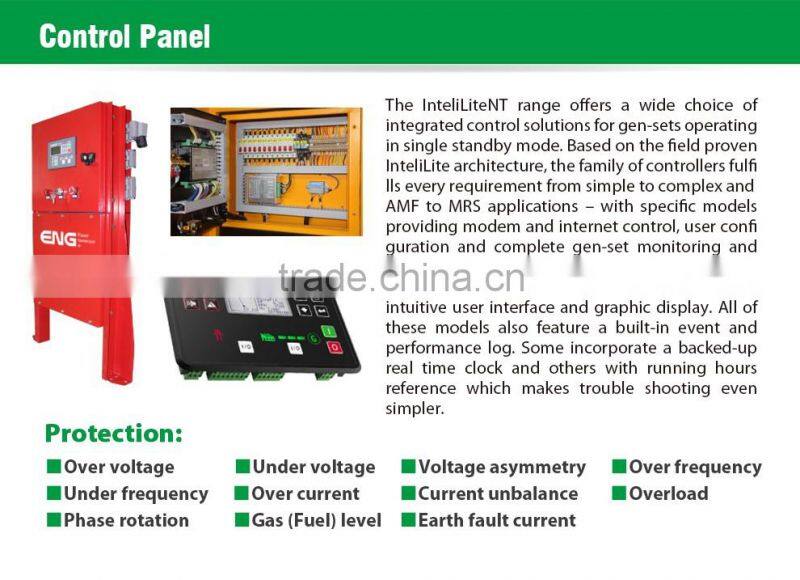

♦ Automatic control panel and electricity output switch cabinet

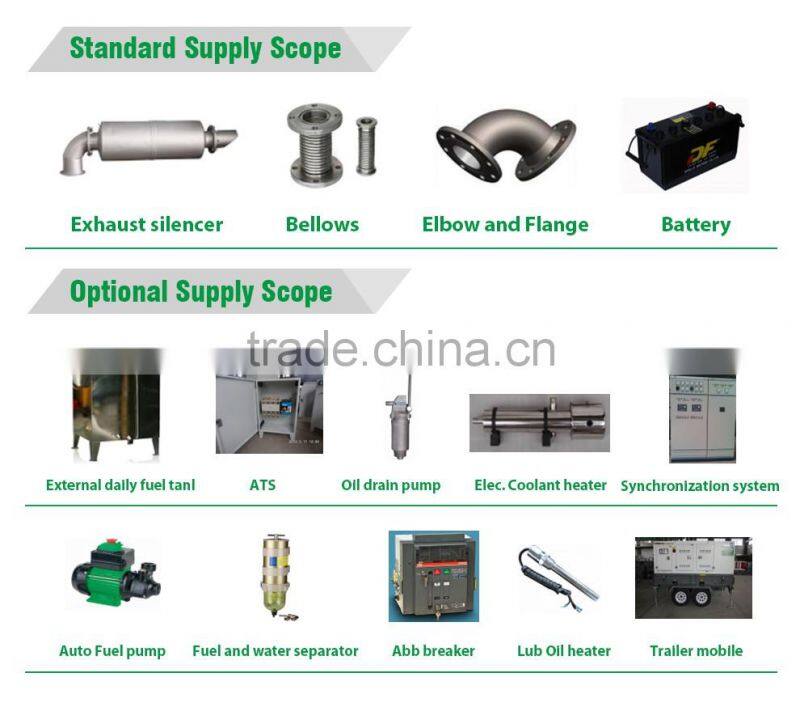

♦ Float battery charger and solenoid switch as standard supply scope
♦ Built-in shock pad
♦ Heavy duty steel as base frame and 6-8hrs operation base fuel tank.(suit for 8kva-750kva)
♦ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.

Our Commitment

♦ Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.

♦ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001Environmental Management System.
♦ All products are CE-certified.
♦ All products have passed rigorous factory test to ensure high quality.
♦ Product warranty terms are strictly enforced.

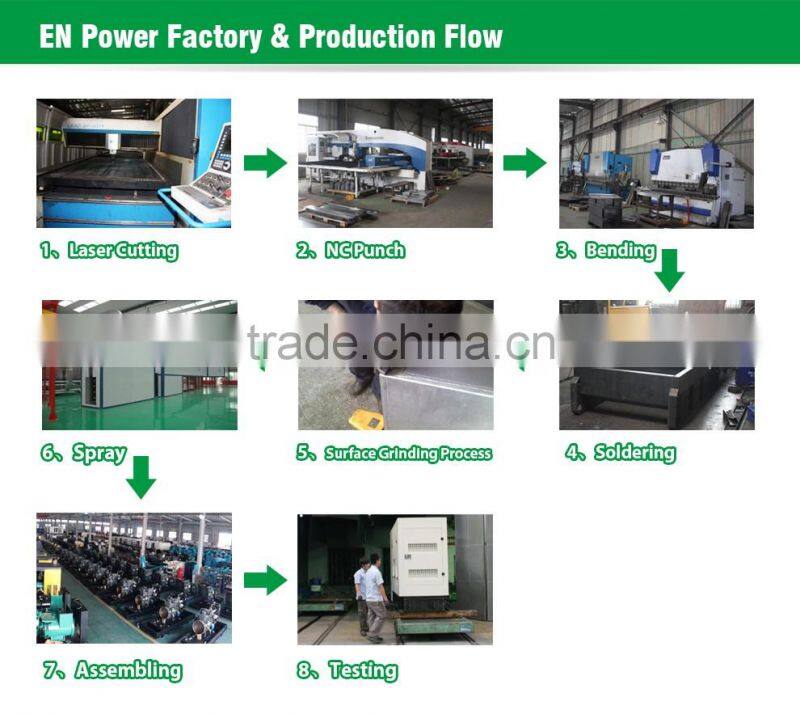

♦ High-efficiency assembly and production lines ensure on-time delivery.
♦ Professional, timely, thoughtful and dedicated services are offered.
♦ Favorable and complete original accessories are supplied.
♦ Regular and irregular technical training are provided all year round.
♦ 24/7/365 Customer Service Center provides fast and effective responses to customers’ service demands.

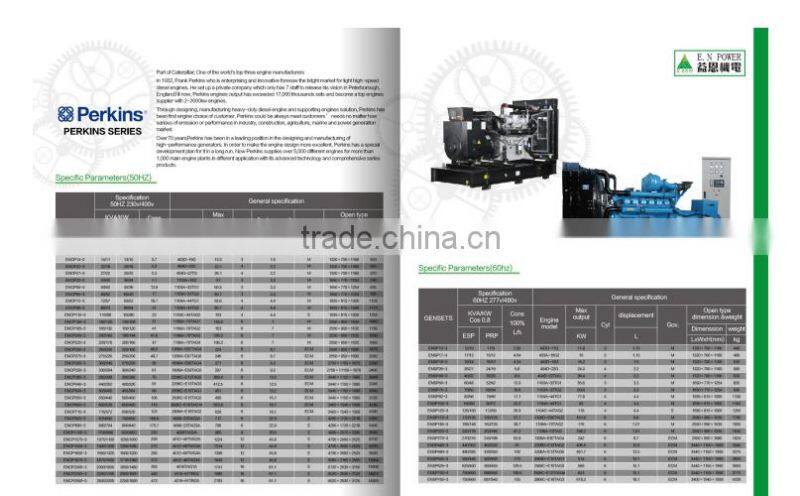

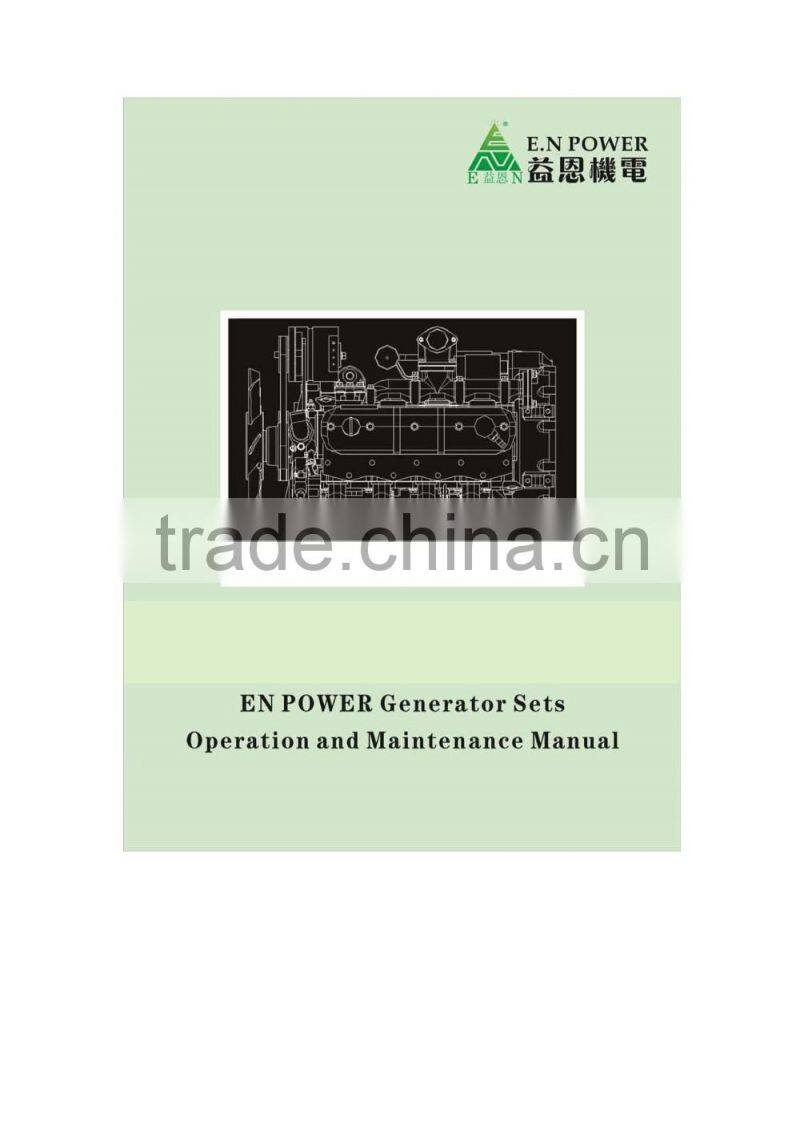

Engine Manual and Catalogue

More choose:

Powered by Perkins series power range from 9kva-2250kva.

Welcome inquiry to us, EN Power sales team will send our proposal to your immediately.

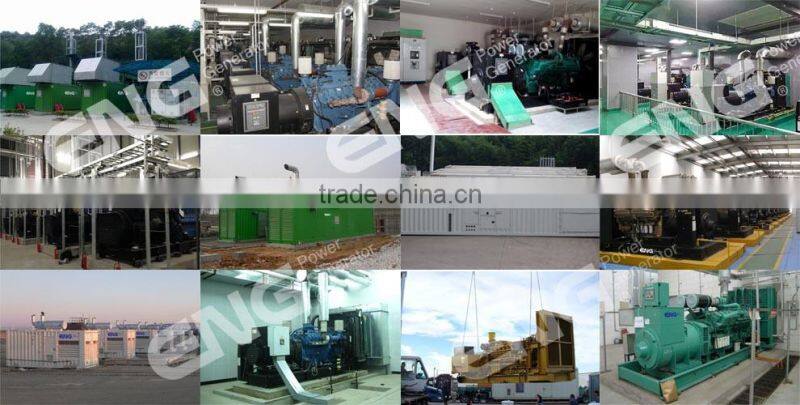

Our Project reference
