very good quality for High capacity rotary dryer, rotary drum dryer in factory price
- 140 Set / Sets per Month
- Tianjin Shanghai Qingdao etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2015 Large Rotary Dryer with Efficiency
-
Large Rotary Dryer with Efficiency
-
High Capacity and New Technology Coal Rotary Dryer Hot Sale Excellent Rotary Dryer Manufacturer
-
New Designed High Quality and Durable Competitive Rotary Dryer
-
Environmental rotary dryer in calcination process with high quality
-
Chinese famous brand factory direct supply New Type High Quality rotary dryer
Product Details
Place of Origin | Henan, China | Brand Name | zhongde | |
Model Number | 2.6*24m | Condition | New | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Advantages of Rotary Dryer:
- Ideally suited for large capacity applications and uneven particle size distribution
- Continuous operation and versatile application
- Low operating & maintenance cost
Application of Rotary Dryer:
Rotary dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly stoving mineral powder, slag, clay, limestone, lignite and other materials.
Working principle of Rotary Dryer:
Rotary Dryer is made up of cylinder, lifting plate, transmission, supporting devices and others. Based on reasonable layout an alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder. Hot air flow turns water into steam letting into air, and aimed dry material is achieved.
The main internal structure of rotary dryer:
In order to increase the material evenly distributed in the rotor parts of the cross section in good contact with the drying medium, in the cylinder body installation raise plates.There are several types of raise plate.
1). Lifting type: For large or easy to bond the material in the tube wall.
2).Four formats type: Suitable for big density, not crisp or not easily scattered materials.The raise plate will be divided into four pane,and were mutually connected fan-shaped workout room, Materials and the contact surface of the hot gas than large of the lifting type, And also can increase of the filling material rate and reduce material landing height and reduce dust quantity loss and so on.
3).Cross-shaped or frame-shaped:applicable to brittle and easy dispersion small pieces of material,make the material can be evenly dispersed in cylinder whole section.
4).Sleeve type:For double entry Heat transfer for the double (or half the diameter heating) rotary drum dryer raise plate.
Technical parameters:
Specification (m) | Shell Cubage (m³) | Capacity (t/h) | Installation Obliquity (%) | Highest Inlet Air Temperature (°C) | Main Motor (KW) | Weight (t) |
Φ1.2×8.0 | 9 | 1.9~2.4 | 3~5 | 700~800 | 7.5 | 9 |
Φ1.2×10 | 11.3 | 2.4~3.0 | 3~5 | 700~800 | 7.5 | 11 |
Φ1.5×12 | 21.2 | 4.5~5.7 | 3~5 | 700~800 | 15 | 18.5 |
Φ1.5×14 | 24.7 | 5.3~6.6 | 3~5 | 700~800 | 15 | 19.7 |
Φ1.5×15 | 26.5 | 5.7~7.1 | 3~5 | 700~800 | 15 | 20.5 |
Φ1.8×12 | 30.5 | 6.5~8.1 | 3~5 | 700~800 | 18.5 | 21.5 |
Φ1.8×14 | 35.6 | 7.6~9.5 | 3~5 | 700~800 | 18.5 | 23 |
Φ2.2×12 | 45.6 | 9.7~12.2 | 3~5 | 700~800 | 22 | 33.5 |
Φ2.2×14 | 53.2 | 11.4~14.2 | 3~5 | 700~800 | 22 | 36 |
Φ2.2×16 | 60.8 | 13.0~16.2 | 3~5 | 700~800 | 22 | 38 |
Φ2.4×14 | 63.3 | 13.5~16.9 | 3~5 | 700~800 | 37 | 45 |
Φ2.4×18 | 81.4 | 17.4~21.7 | 3~5 | 700~800 | 37 | 49 |
Φ2.4×20 | 90.4 | 19.3~23.1 | 3~5 | 700~800 | 45 | 54 |
Φ2.4×22 | 99.5 | 21.2~26.5 | 3~5 | 700~800 | 45 | 58 |
Φ2.6×24 | 127.4 | 27.2~34.0 | 3~5 | 700~800 | 55 | 73 |
Φ3.0×20 | 141.3 | 30.1~37.7 | 3~5 | 700~800 | 75 | 85 |
Φ3.0×25 | 176.6 | 37.7~47.1 | 3~5 | 700~800 | 75 | 95 |
Φ3.2×25 | 201 | 42.9~53.6 | 3~5 | 700~800 | 90 | 110 |
Φ3.6×28 | 285 | 60.8~76.0 | 3~5 | 700~800 | 160 | 135 |
Note:
1. Please specify transmission arrangement when placing an order.
2. Production capacity in above table (G) is calculated by primary material moisture (W1): 20%, final moisture (w2):5% and evaporation intensity for unit volume (A) 40-50kg water per M³ on hour; production capacity will change with relevant materials and working conditions.

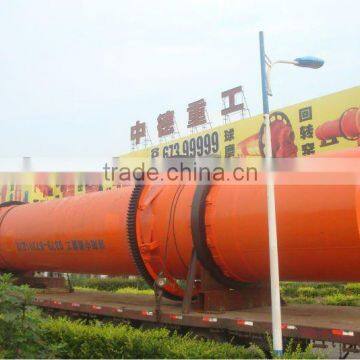

pictures for reference:
manufacturing process of rotary dryer:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.
The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product quality and company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.
Company pictures:
Certificates:
Manufacturing ability:
Consignment:
Exhibition:
Customers site:
How about the quality of your Rotary dryer?
- Our Rotary dryer is manufactured strictly according national and international standard.
- We take a test on every Rotary dryer before delivery.
How about price of your Rotary dryer ?
- We can give the lowest price of Rotary dryer than market one.
- We do quotation of Rotary dryer as soon as possible for any customer.
- Discount of Rotary dryer can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is available to install Rotary dryer overseas.
- The guarantee period of our Rotary dryer is one year.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the most reasonable price.
More details, please visit our website:
